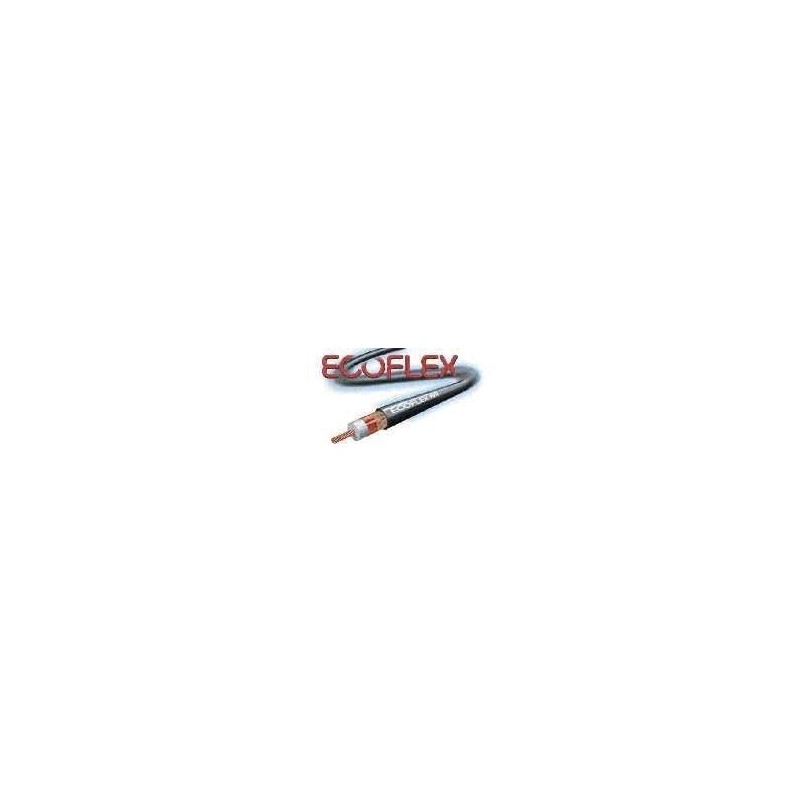

EcoFlex 10 Coax Plus Kabel

          Neu

          EcoFLEX 10 Coax Kabel, EcoFlex 10 Coax Kabel, ist die richtige Wahl, wenn ein niedriges Verlust, hochflexibler Mikrowellenkabel erforderlich ist. Der wirtschaftliche Preis für den wirtschaftlichen Preis macht EcoFlex 10 zum klaren Führer für die heutigen anspruchsvollen Anwendungen

          Mehr Infos

          Sammeln Sie mit dem Kauf dieses Artikels bis zu 35 Treuepunkte. Ihr Warenkorb hat insgesamt 35 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 7,00.


                € 173,55

                    Coax length

                      • Coax cable 25 meter
                      • Coax cable 50 meter
                      • Coax cable 100 meter

                    Optie

                      • Coax only
                      • Install 2x PL259 (SO239 male)
                      • Install 2xN male connector
                      • Install N male BNC male
                      • Install N male PL259 (SO239 male)

                  Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
                  Kostenloser Versand Kostenloser Versand in NL
                  Volumenrabatt Volumenrabatt
                  Bonus-System Bonus-System
                  Sichere Zahlung Sichere Zahlung
                  Geld-zurück-Garantie Geld-zurück-Garantie
                  Trustpilot Trustpilot

          Mengenrabatt

            Menge Rabatt Sie sparen
            2 2% Bis zu € 6,94
            4 4% Bis zu € 27,77
            6 6% Bis zu € 62,48
            8 8% Bis zu € 111,07
            10 10% Bis zu € 173,55

          Mehr Infos EcoFlex 10 Coax Plus Kabel

          Product discription:




          Loss in dB per 100m

          Frequency ECOFLEX 10
          5 MHz 0,8
          10 MHz 1,2
          50 MHz 2,8
          100 MHz 4,0
          145 MHz 4,8
          200 MHz 5,9
          432 MHz 8,9
          500 MHz 9,6
          1000 MHz 14,2
          1296 MHz 16,5
          1500 MHz 17,9
          2000 MHz 21,2
          2320 MHz 23,1
          2400 MHz 23,6
          3000 MHz 27,0
          4000 MHz 32,2
          5000 MHz -
          6000 MHz -
          = amateur radio band




          Technical Data
          Impedance 50 Ωs
          Centre Conductor stranded copper 7x1.0mm
          Dielectric PE-Compound
          Outer conductor 1 PE-coated copperfoil, coverage 100%
          Outer conductor 2 Copperbraid, coverage 72%
          Diameter over sheath 10,2 mm
          Velocity factor 0,86
          Capacity per meter 77 pF
          Buig cirkel diameter zonder te forceren 158 mm
