    SmartGen 6.0

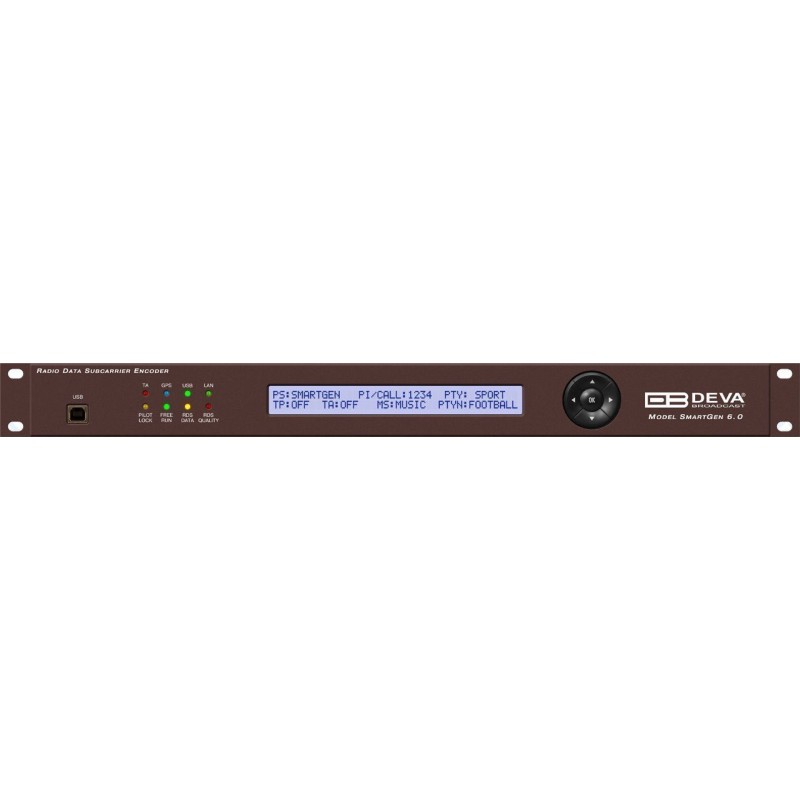

    Smartgen 6.0 UECP -Kompatible RDS/RBDS -Encoder mit LAN, USB & amp; RS-232-Konnektivität

    Sammeln Sie mit dem Kauf dieses Artikels bis zu 91 Treuepunkte. Ihr Warenkorb hat insgesamt 91 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 18,20.


    € 1.824,99

    Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
    Kostenloser Versand Kostenloser Versand in NL
    Volumenrabatt Volumenrabatt
    Bonus-System Bonus-System
    Sichere Zahlung Sichere Zahlung
    Geld-zurück-Garantie Geld-zurück-Garantie
    Trustpilot Trustpilot

    Mengenrabatt

    Menge Rabatt Sie sparen
    2 2% Bis zu € 73,00
    4 4% Bis zu € 292,00
    6 6% Bis zu € 657,00
    8 8% Bis zu € 1.167,99
    10 10% Bis zu € 1.824,99

    Mehr Infos USB & RS-232

    Product discription:


    Manufactured to meet the highest standards in broadcasting, SmartGen 6 encoder furnishes all the mandatory for this high class equipment features, at competitive price.

    Since all DEVA’s products are manufactured to be user friendly in terms of operation, SmartGen 6 comes with simple and reliable programming software: “SmartGen RDS/RBDS Encoders Manager” and a password protected WEB interface for remote connection.

    The local (RS232, USB) and remote (TCP/IP, UDP/IP) interfaces permit fast and full integration of the RDS/RBDS encoder to the station’s other functions, including message streams for digital radio and Webcasting. The LCD (2x40) text display and Intuitive Navigation menu are used for on-site navigation through the menus, quick access to the parameters and the functions and for altering of their values. In addition, the display visualizes the incoming raw data from the station, just as the radio of your listeners does.

    The need of highly-accurate time source is satisfied not only by the supported SNTP but also by the built-in GPS Module. The used GPS technology provides means for synchronizing the unit with UTC and makes the sub-second timekeeping possible and easy to achieve.

    Another impressive feature of SmartGen 6 is the SNMP agent software component, which reports information via SNMP to one or more administrative computers (managers). SmartGen 6 complies with SNMPv2C. The function SNMP traps or E-mail notification on user-defined alerts is also available.

    SmartGen 6 is supplied with two separate outputs – one for RDS+MPX and one for RDS only. The two General Purpose Inputs are with user-defined functionality, allowing easy integration of SmartGen 6 to the station’s needs. The four General Purpose Outputs are also user-defined and allow easy management of external devices, when needed.

    Based on the latest RDS technology, SmartGen 6 guarantees fully digital synthesis of the RDS signal, with excellent quality and spectral purity. This advanced device is a cost-effective solution for sending of TMC, EWS Services and song tagging via the supported RT+ function. The device can ‘parse’ scrolling text, automatically breaking the phrases into word groups.

    Supporting all RDS Applications, in conformity with the European CENELEC and the United States NRSC standards, SmartGen 6 is fully compatible with UECP EBU SPB490 Version 7.05.

    In line with the latest technology, SmartGen 6 is proved and reliable hardware for 24/7/365 operation.

    • Fully Digital Synthesis of RDS signal with excellent quality and spectral purity
    • Fully independent RDS decoder for self-monitoring purposes
    • Front panel LCD Display and Buttons for operating without a computer
    • Remote configuration via ASCII or UECP protocols through RS232, LAN, USB
    • Supported Network Protocols: HTTP, FTP, SNMP, SMTP, UpNP, UDP and TCP
    • 4 x user-defined GPO, allowing easy management of external devices when needed
    • 2 x General Purpose Inputs with user-defined functionality
    • Includes the TA function for traffic message priority override
    • Alert notifications on user-defined events via SNMP traps or E-mails
    • Real time clock Schedules for Scrolling Text and text lists
    • Custom HTML formatted E-mail templates with dynamic variables
    • SNTP & GPS module for automatic synchronization of the built-in clock
    • Supports European CENELEC and United States NRSC standards
    • Attractive price and very good price-performance ratio
    • Full support of Open Data Applications
    • Supports RT+ for songs and content tagging
    • PS & Radio Text Scrolling Options
    • Supports TMC (Traffic Message Channel)
    • Compatible with EWS (Emergency Warning System)
    • Embedded WEB server for interactive supervision
    • Fully compatible with UECP EBU SPB490 Version 7.05
    • MPX Loopthrough & Sidechain Modes
    • Internal or external Pilot / MPX synchronization
    • Very Intuitive UECP Configuration Software
    • Remote RDS viewer to visualize broadcasted data
    • Proved and reliable hardware for 24/7/365 operating
    • Easy Installation and Setup
    • LAN, USB & 2 x RS-232 Interfaces
    • Embedded SNMP agent permitting active management tasks
    • Interfaces with all popular radio automation systems
    • Built-in dedicated 19kHz source for internal sync
    • Built-in failsafe bypass relay
    • Separate outputs for RDS+MPX and for RDS only
    • Works with any FM exciter and stereo generator
    • Internal data diagnostics and transmission safeguards
    • 19" Professional Case for high RF immunity



    Technical facts:




    Power Supply Internal 100 - 240V; 50 - 60Hz
    Pilot/MPX Input Yes
    MPX/RDS Output 0 to 4095 mV
    Inputs/Outputs 2 x GPI, 4x GPO user-defined functionality
    Communication Port 2xRS232, USB, LAN
    Synchronization External (Pilot or MPX) / Internal / Auto
    Synchronization Monitoring Yes
    RDS Level adjustment Digitally controlled
    Phase adjustment Yes, 0 ÷ 359.9°
    Separate outputs for RDS+MPX and for RDS only Yes
    Command to activate the RDS SCA Yes
    Side Chain Mode, Loop through mode, Bypass feature Yes
    RDS Subcarrier 100% Digitally Generated Shape / Bypass: 0 dB
    Pilot synchronization Input Level: -50dBu to +12dBu / Frequency: 19kHz, ±3Hz
    EN50067 compliant Yes
    Accurate Clock Time (CT) Sync with Internet Connection Yes
    Remote TA actuation for Traffic Announcements Yes
    GPS module for automatic synchronization of the built-in clock Yes
    Fully independent RDS decoder for self-monitoring purposes Yes
    Firmware can be upgraded in the field Yes
    Front-panel LCD displays all programmed data Yes
    Data may be entered on-site with Front-panel Buttons Yes
    Operating Temperature 0°C ÷ 55°C
    RDS Features
    Group supported All
    Group Sequence Configurable
    PS 6 DSN x 4 PSN
    PI 6 DSN x 4 PSN
    PTY RDS/RBDS
    AF Method A 25
    AF Method B up to 100
    RT Yes, 10 messages
    RT rate adjustment Group Sequence
    RT+ for songs and content tagging Yes
    TP Yes
    TA Control Command, Contact closure, Software
    PTYN Yes
    EON 4 PSN
    CT Yes
    TMC, EWS, IH, TDC Yes
    Free Format Groups (FFG) Yes
    Open Data Application (ODA) Yes
    64-character Dynamic PS shown on all RDS/RBDS Radios Yes
    Auto "parses" long messages for best text display Yes
    Scrolling by character from 1 up to 8
    Scrolling by word, Auto centering, Truncate long words Yes
    Communication
    Communication Interfaces 2xRS232, USB, LAN
    Connection with Automation Software Yes
    Network Connectivity 2 TCP ports; 2 UDP ports
    Scheduler Yes
    Configuration Embeded Web Server, SmartGen Manager
    Password Protection Yes
    ASCII Protocol Yes
    UDP, TCP, HTTP, SNTP Yes
    Alert notifications on user-defined events via SNMP traps or E-mails Yes
    Embedded SNMP agent permitting active management tasks Yes
    Custom HTML formatted E-mail templates with dynamic variables Yes
    Supported Network Protocols: HTTP, FTP, SNMP, SNTP, SMTP, UPnP, UDP, TCP
    UECP Protocol Fully compliant with EBU SPB490 Ver.7.05
    PI <=> CALL Calculator Yes
    Remote Display Yes
    Supplied with Intuitive Software Yes
    Comes with 2-years Limited Warranty Yes
    Size and Weight
    Dimensions (W;H;D) 485 x 44 x 178 mm
    Shipping Weight 540 x 115 x 300 mm / 2.455 kg
    HS Code 8527212000
