MAXPRO -8015+ 15W FM -Sender - Erreger plus LCD

Name: MAXPRO -8015+ 15W FM -Sender - Erreger plus LCD
Brand: PCS-Electronics
SKU: 1556
Price: 289.99 EUR
Availability: InStock

STMAX3015+ exciter (stereo+RDS) availability in 15W, 25W - Studio & Broadcast Solutions

Vergrößern

€ 289,99

LCD Display

Stereo

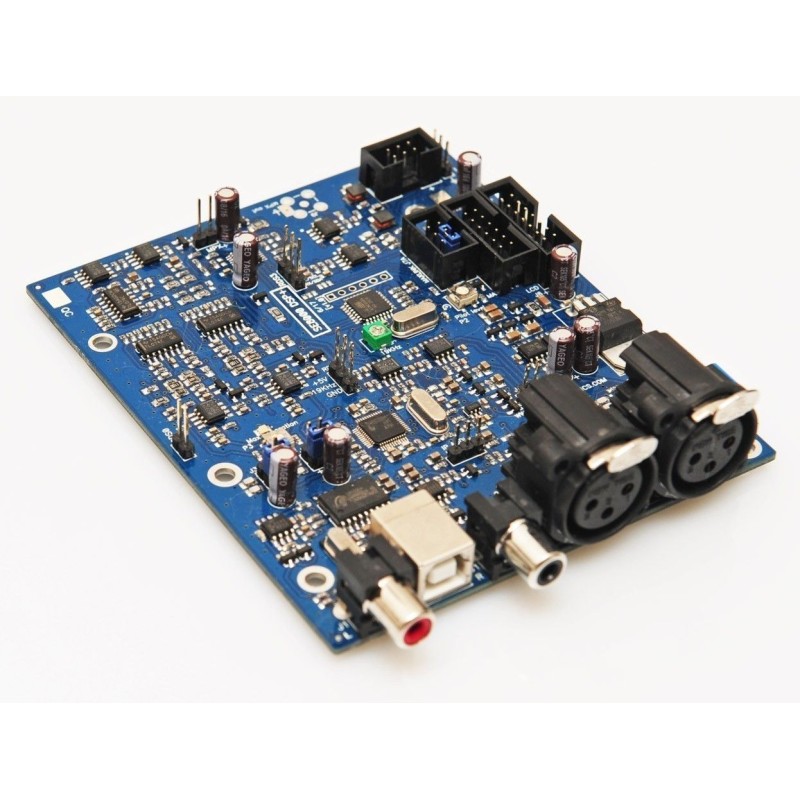

Digital Stereo encoder met Digital inputs
Stereo L R

RDS

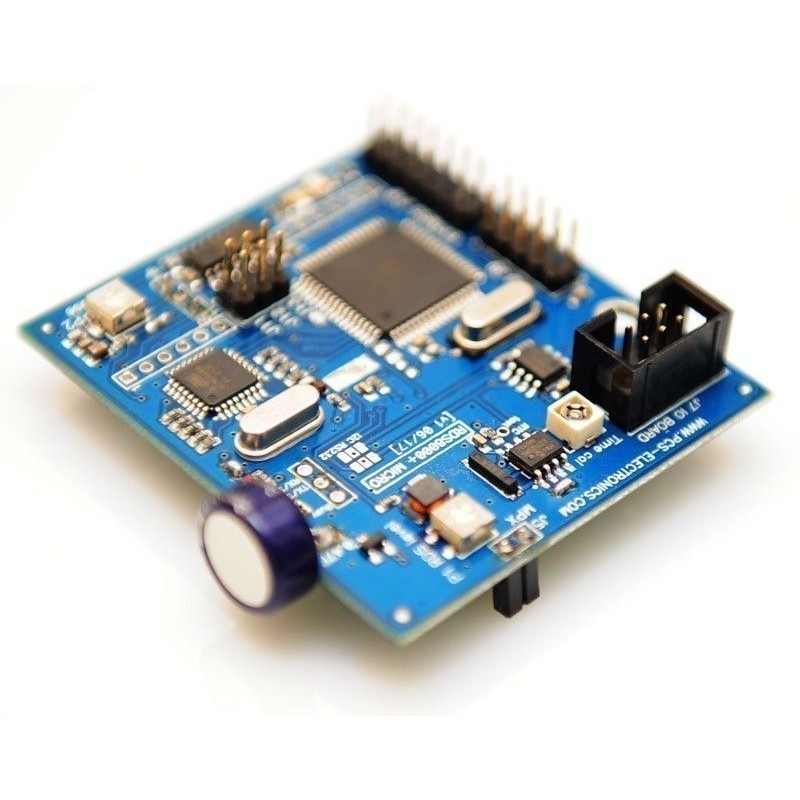

RDS encoder daughter board
Zonder RDS

Mengenrabatt

Menge	Rabatt	Sie sparen
2	2%	Bis zu € 11,60
4	4%	Bis zu € 46,40
6	6%	Bis zu € 104,40
8	8%	Bis zu € 185,59
10	10%	Bis zu € 289,99

Menge

Brand : PCS-Electronics

Model :

Condition : Neu

Kategorie : FM -Sender -Kits

MaxPro -8015+ 15W FM -Sender -Erreger einschließlich LCD

Qsonic PLL/VCO, ausgezeichnete Bassantwort, Schnellschloss!

Produktseite drucken

Zubehör

Mehr Infos

Product discription:

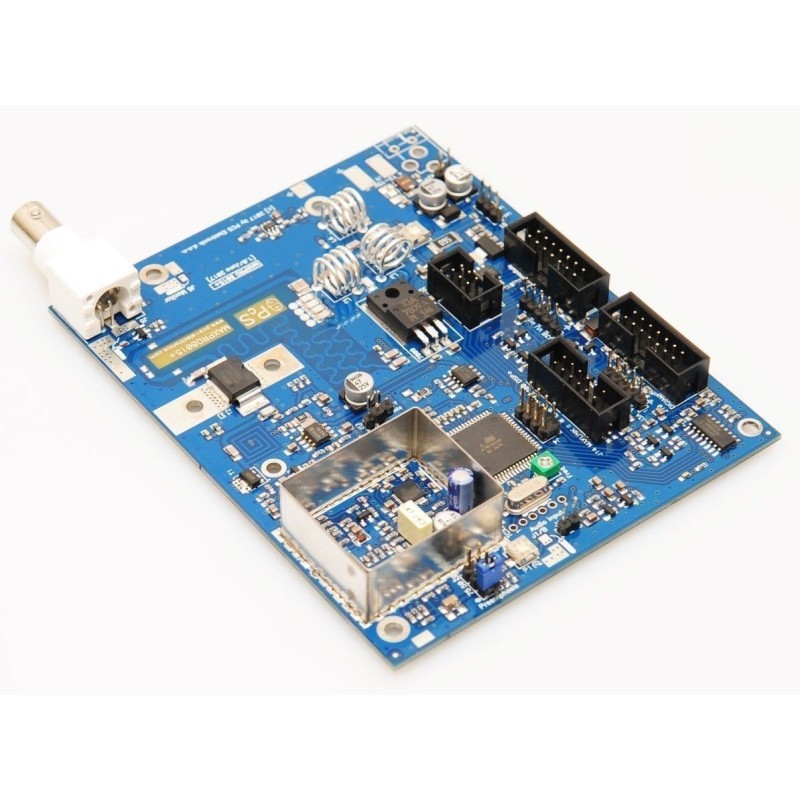

MAXPRO-8015+ 15W FM transmitter - exciter including LCD

Qsonic PLL/VCO, excellent bass response, fast lock!

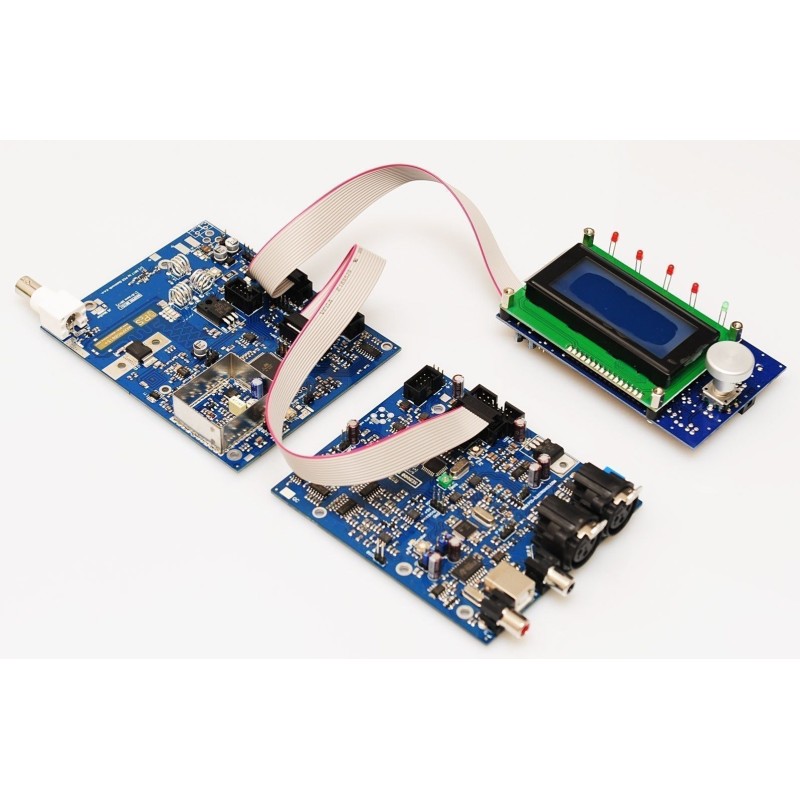

The new MAX PRO 8015+ FM exciters are fine-tuned, optimized and improved version of MAXPRO7015. They bring even better S/N ratio and MAXLINK II interface for easy no-soldering wiring to the new SE8000 DSP+ stereo encoder.

Supports previous MAXLINKI and new MAXLINK II for easy interfacing with the new SE8000 DSP+ without soldering

MPX cable no longer needed for connection to new stereo encoders (Such as SE8000 DSP+).
VU meter signals wired through MAXLINK II and LCD display flat cable which simplifies wiring considerably
Further Improved S/N ratio across the band, designed for maximum spurious signal rejection (>80dBc). Some high-end customers appreciate this feature. Depending on operating frequency dBc can be >95dB down relative to the carrier.
Self-resetting electronic PTC fuse (no more pesky fuse replacements).

What parameters can I change via remote control?
Its best that you look at the screen capture below. The program may change over time as we make enhancements, we will be adding more features soon!

Technical facts:

RF Output Power: 0 to 15 Watts, LCD power adjustment range can also be limited to 0-1W, 0-2W, 0-3W, 0-4W ... 0-15W, 0-full, this is done with a jumper (exact options vary depending on model)
Output connector: 15 BNC
Output Impedance: 50 Ohms
Frequency range: 87.5-108MHz
PLL Steps: 50KHz-500KHz, adjustable
Frequency stability: +/- 20Hz
Spurious/Harmonic rejection: Harmonics: >50dB, Spurious: (>80dB)
Power Supply 15W: 12-15V/3A or car battery
Power connector: New design with plugin with 2 screw terminals or standard barrel type
Quartz Locked PLL Frequency Control
Ultra Stable, Ultra Clean Output
No Expensive Test Equipment Required
Audio performance: Less than 0.1% distortion, 20Hz-75KHz
RF output ruggedness: SWR protection
Polarity protection, temp protection
Pre-emphasis, 50uS, 75uS or none
Audio Input Impedance: 10Kohm, unbalanced
Audio Input Level: 0 dB
S/N ratio: >90 dB
PC Board Size 15W: 100x125mm
Audio connectors: 2 pins and solder pads, MAXLINK II
RF monitor: solder pads
