• > FM -Sender>TEM 300 W FM -Sender in 1 Einheit 19 -Zoll -Rack MPX -Eingang

TEM 300 W FM -Sender in 1 Einheit 19 -Zoll -Rack MPX -Eingang

TEM 300 W FM Transmitter in 1 unit 19inch rack MPX input Vergrößern

: TEM - TELECOMUNICAZIONI MILANO

:

: Neu

: FM -Sender

Diese im 87,5 ÷ 108 MHz betriebenen Sender mit niedriger Leistung verwenden 100/300/500 -W

Sammeln Sie mit dem Kauf dieses Artikels bis zu 294 Treuepunkte. Ihr Warenkorb hat insgesamt 294 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 58,80.


€ 3.354,99

  • GSM Remote Control

  • No GSM

  • Basis MPX Mono versie

  • Digital Stereo encoder met Digital inputs

  • Stereo encoder kaart L R

  • Geen installatie - Automatic frequency daviation control card

  • Install - Automatic frequency daviation control card

  • Geen installatie - Audio Alarm detector board

  • Install - Audio Alarm detector board

  • RDS encoder

  • Zonder RDS

Menge Rabatt Sie sparen
2 2% Bis zu € 134,20
4 4% Bis zu € 536,80
6 6% Bis zu € 1.207,80
8 8% Bis zu € 2.147,19
10 10% Bis zu € 3.354,99

Secure payments powered by Mollie
Mehr Infos

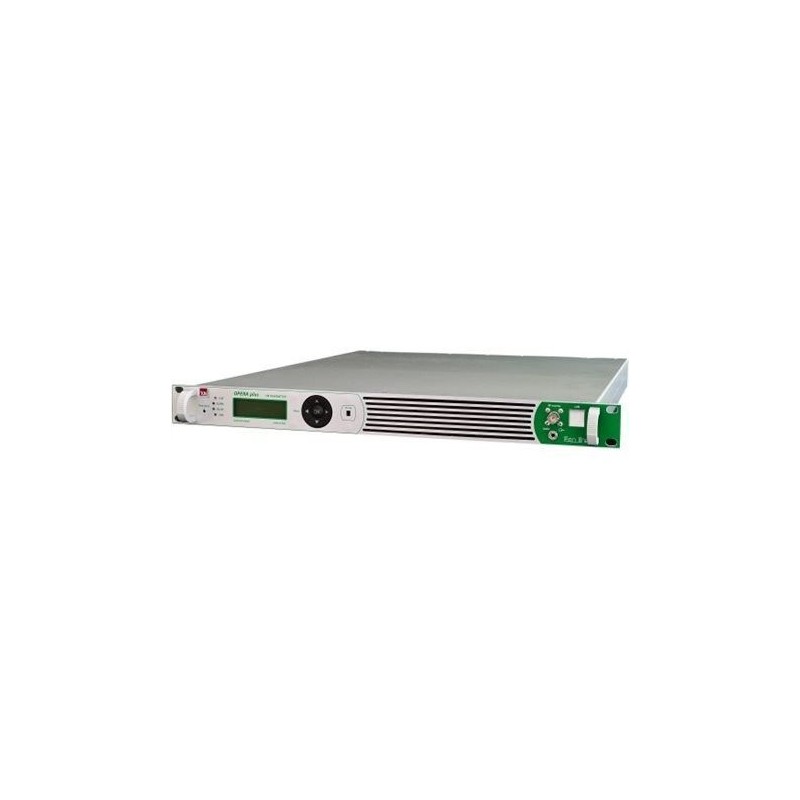

TEM Italy 300W FM TRANSMITTER (Mono/MPX)



Product Discription:

These low power transmitters operating in the 87,5÷108 MHz band, use 100/300/500W amplifiers mounted for the air cooling in a aluminium heatsynk.
Operating frequency can be set up in a few seconds by the synthesizer. The equipment is fully microprocessor controlled. These transmitters are ideally suited for unmanned stations, in fact they do not require periodically maintenance and are fully protected. The installation is very fast and maintenance very easy. It can be equipped with RDS code built-in and with GSM modem for remote control by SMS.



  • Wideband circuits solid state amplifiers
  • Built-in exciter with digital frequency synthesiser and stereo encoder built-in
  • ROS protection
  • Temperature protection
  • LCD display to check all operating parameters
  • High efficiency 100W or 300W or 500W amplifier
  • Switching power supply for highest reliability and efficiency
  • Sealed duct cooling air with only one blowers
  • Easy removable blower
  • Harmonics filter built-in
  • In only 1 unit 19 standard rack
Technical Facts:
  • Operating voltage 230VAC ±10 %
  • Cooling Forced air with one built-in blowers
  • Line power <200VA <500VA <750VA
  • Operating temperature range -5° to 45°C
  • Storage temperature range -40° to 50°C
  • Output RF connector N
  • Monitor RF connector BNC
  • Dimensions 485x44.4x560 mm
  • Weight 8 - 10 kg

See for more technical information visit product page
