TEM 500 W FM -Sender in 1 Einheit 19 -Zoll -Rack MPX -Eingang

    TEM 500 W FM Transmitter in 1 unit 19inch rack MPX input Vergrößern

    TEM 500 W FM -Sender in 1 Einheit 19 -Zoll -Rack MPX -Eingang

    Diese im 87,5 ÷ 108 MHz betriebenen Sender mit niedriger Leistung verwenden 100/300/500 -W

    Sammeln Sie mit dem Kauf dieses Artikels bis zu 300 Treuepunkte. Ihr Warenkorb hat insgesamt 300 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 60,00.


    € 3.459,99

    GSM

    • GSM Remote Control

    • No GSM

    Stereo optie

    • Basis MPX Mono versie

    • Digital Stereo encoder met Digital inputs

    • Stereo encoder kaart L R

    Frequentie controle

    • Geen installatie - Automatic frequency daviation control card

    • Install - Automatic frequency daviation control card

    Audio Alarm

    • Geen installatie - Audio Alarm detector board

    • Install - Audio Alarm detector board

    RDS

    • RDS encoder

    • Zonder RDS

    Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
    Kostenloser Versand Kostenloser Versand in NL
    Volumenrabatt Volumenrabatt
    Bonus-System Bonus-System
    Sichere Zahlung Sichere Zahlung
    Geld-zurück-Garantie Geld-zurück-Garantie
    Trustpilot Trustpilot

    Mengenrabatt

    Menge Rabatt Sie sparen
    2 2% Bis zu € 138,40
    4 4% Bis zu € 553,60
    6 6% Bis zu € 1.245,60
    8 8% Bis zu € 2.214,39
    10 10% Bis zu € 3.459,99

    Mehr Infos TEM 500 W FM -Sender in 1 Einheit 19 -Zoll -Rack MPX -Eingang

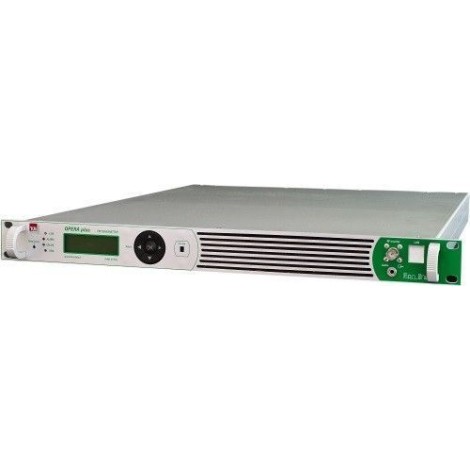

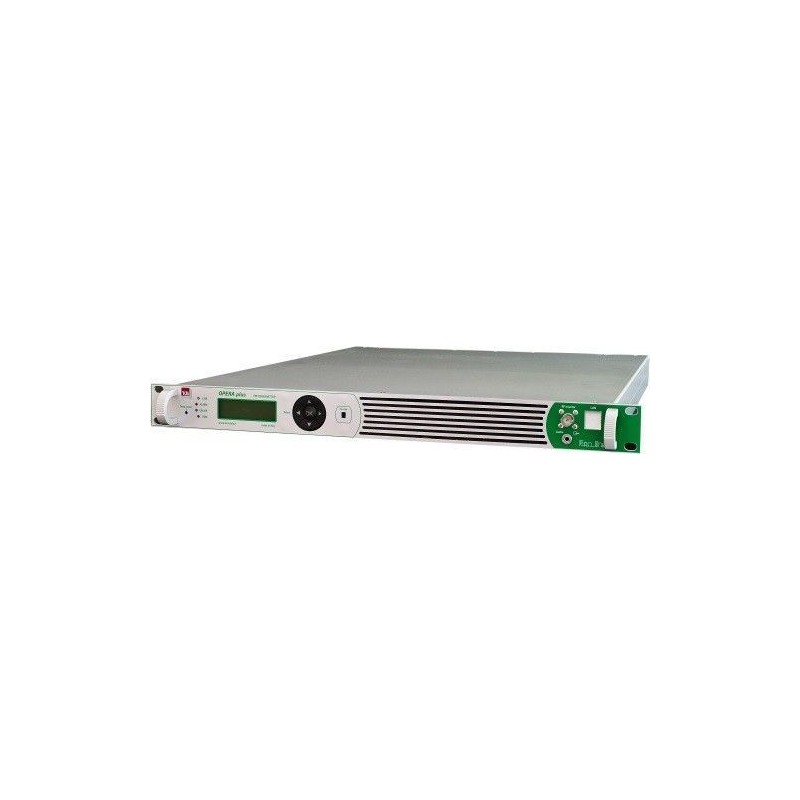

    TEM Italy 500W FM TRANSMITTER (Mono/MPX)



    Product Discription:

    These low power transmitters operating in the 87,5÷108 MHz band, use 100/300/500W amplifiers mounted for the air cooling in a aluminium heatsynk.
    Operating frequency can be set up in a few seconds by the synthesizer. The equipment is fully microprocessor controlled. These transmitters are ideally suited for unmanned stations, in fact they do not require periodically maintenance and are fully protected. The installation is very fast and maintenance very easy. It can be equipped with RDS code built-in and with GSM modem for remote control by SMS.



    • Wideband circuits solid state amplifiers
    • Built-in exciter with digital frequency synthesiser and stereo encoder built-in
    • ROS protection
    • Temperature protection
    • LCD display to check all operating parameters
    • High efficiency 100W or 300W or 500W amplifier
    • Switching power supply for highest reliability and efficiency
    • Sealed duct cooling air with only one blowers
    • Easy removable blower
    • Harmonics filter built-in
    • In only 1 unit 19” standard rack
    Technical Facts:
    • Operating voltage 230VAC ±10 %
    • Cooling Forced air with one built-in blowers
    • Line power <200VA <500VA <750VA
    • Operating temperature range -5° to 45°C
    • Storage temperature range -40° to 50°C
    • Output RF connector “N”
    • Monitor RF connector BNC
    • Dimensions 485x44.4x560 mm
    • Weight 8 - 10 kg
