EM 1000W FM -Sender er digierte plus kompakte OMB FM

    EM 1000 HE D

          Neu

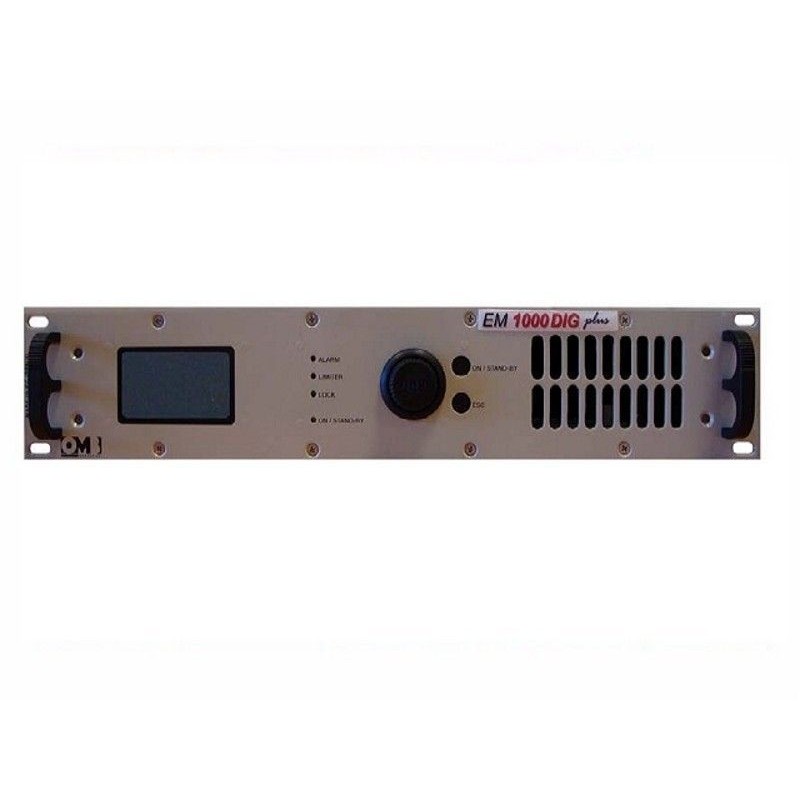

              Der 1 -kW -FM -Kompakt -Sender EM 1000 He Dig Plus Compact wurde vom OMB -Entwicklungszentrum für hocheffiziente Sender erstellt. Seine Flexibilität, Qualität, Kompaktheit sowie sein niedriger elektrischer Verbrauch machen diesen 1 -kW -FM -Kompakt -Sender zu einem der besten auf dem Markt angebotenen, die heute angeboten werden. Es kann mit einer internen digitalen Stereo -Generatorplatine (60 dB Trennung)

              geliefert werden

            Mehr Infos

          Sammeln Sie mit dem Kauf dieses Artikels bis zu 265 Treuepunkte. Ihr Warenkorb hat insgesamt 265 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 53,00.


                € 5.305,78

                Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
                 Kostenloser Versand nach NL
                 Mengenrabatt
                 Bonussystem
                 Sicher zu bezahlen
                 Geld-Zurück-Garantie
                 QShops-Zertifizierung
                Vertrauenspilot Trustpilot

        Mengenrabatt

          Menge Rabatt Sie sparen
          2 2% Bis zu € 212,23
          4 4% Bis zu € 848,92
          6 6% Bis zu € 1.910,08
          8 8% Bis zu € 3.395,70
          10 10% Bis zu € 5.305,78

        Mehr Infos EM 1000W FM -Sender er digierte plus kompakte OMB FM

          Product Discription:

      MAIN FEATURES OF THE 1KW FM COMPACT TRANSMITTER MANUFACTURED BY OMB:


      • Typical AC efficiency of 75%. Typical RF efficiency of 84%
      • 2 amplifying modules of 600W with MOSFET technology
      • Memory recording of events
      • Speed control of cooling fans according to the temperature of power modules for optimizing the consumption and decreasing the acoustic contamination
      • Advanced protection against load mismatches without transmission cuts and fast protection in case of excessive reflected power and/or excessive input power
      • Low pass filter, Mains EMI filter and internal single-phase transient suppressor
      • Automatic power reduction at night
      • Automatic power reduction in case of high temperature, the equipment returns automatically to its rated power value when the temperature reaches back an average value
      • Automatic power reduction in case of excessive reflected power
      • Automatic voltage control for efficiency optimization


      GENERAL CHARACTERISTICS

      • FREQUENCY RANGE 87.5-108MHz
      • FM MODULATION 75KHz (adjustable) peak deviation. Mono 180kF3E and Stereo 256kF3E
      • AUDIO/MPX INPUT LEVEL -3.5 to +12.5dBm @ 75KHz deviation
      • AUDIO INPUT CONNECTORS XLR(F)
      • AUX. CHANNEL INPUT LEVEL (RDS/SCA) 7.5KHz deviation: -12.5 to 3.5dBm 2KHz deviation: -24 to -8dBm

      Technical specifications:


      • AUX. CHANNEL INPUT IMPEDANCE 10KOhm
      • MODULATION DISTORTION 7.5KHz deviation: <0.05%, 0.02% typical
        2KHz deviation: <0.2%, 0.05% typical
      • MONO S/N RATIO 30 to 20000Hz: >76dB, 86dB typical
        CCIR: >75dB, 81dB typical
      • STEREO S/N RATIO 30 to 20000Hz: >72dB, 77dB typical
        CCIR: >68dB, 72dB typical
      • AUDIO CHANNELS BANDWIDTH 30 to 15000Hz ±0.1dB
      • PRE-EMPHASIS TIME CONSTANT Selectable, 0/50/75 microseconds
      • NOMINAL RF OUTPUT POWER 1000W
      • CONSUMPTION 1300VA at 1000W output power
      • TOTAL EFFICIENCY >73% typical
      • RF EFFICIENCY 84%
      • TRANSMITTER TUNING STEPS 10/100KHz
      • OUTPUT POWER ALC STABILITY ±3%
      • HARMONICS AND SPURIOUS EMISSIONS <80dBc
      • RF OUTPUT IMPEDANCE 50Ω
      • RF OUTPUT CONNECTOR N type, 7/16”(F) optional
      • RF SAMPLER CONNECTOR BNC type
      • POWER SUPPLY Single phase 110-230Vac ±15% 50/60Hz
      • OPERATING TEMPERATURE RANGE 0 to 40°C recommended, -10 to +55° max.
      • RELATIVE HUMIDITY Up to 95% not condensed
      • DIMENSIONS 2 standard rack units of 19”
      • WEIGHT 20Kg
