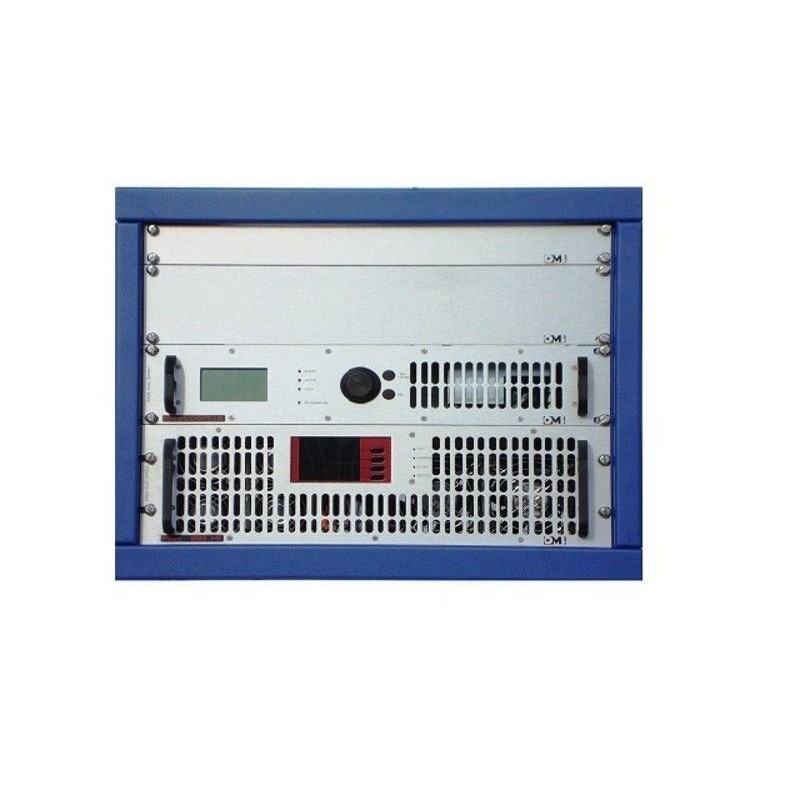

    2KW FM Zender, EM 2000 HE DIG PLUS OMB Vergrößern

    EM 2000 He Dig Plus OMB | DMR -Elektronik

    EM 2000 HE D

    Der 2 -kW -FM -Sender, EM 2000 He Dig Plus, wurde vom OMB -Entwicklungszentrum für hocheffiziente Sender erstellt. Es besteht aus dem hohen Effizienz 2 kW -Verstärker FMA 2000 HE mit & gt; 73% Effizienz und dem EM 25 Dig Plus, einem 25 -W -FM -Sender. Der 2 -kW -Verstärker mit hoher Effizienz hat einen ungefähren Verbrauch von 2600 Va bei 230 VAC. Daher zahlt es sich aufgrund seines niedrigen Verbrauchs in kurzer Zeit für sich selbst aus. Dieser 2 -kW -FM -Sender ist auch in der Dual -Laufwerk -Version

    erhältlich

    Price on request

    Achtung: Letzte verfügbare Teile!

    Sammeln Sie mit dem Kauf dieses Artikels bis zu 549 Treuepunkte. Ihr Warenkorb hat insgesamt 549 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 109,80.


    € 10.999,99

    Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
    Kostenloser Versand Kostenloser Versand in NL
    Volumenrabatt Volumenrabatt
    Bonus-System Bonus-System
    Sichere Zahlung Sichere Zahlung
    Geld-zurück-Garantie Geld-zurück-Garantie
    Trustpilot Trustpilot

    Mengenrabatt

    Menge Rabatt Sie sparen
    2 2% Bis zu € 440,00
    4 4% Bis zu € 1.760,00
    6 6% Bis zu € 3.960,00
    8 8% Bis zu € 7.039,99
    10 10% Bis zu € 10.999,99

    Mehr Infos EM 2000 He Dig Plus OMB | DMR -Elektronik


    Product Discription:

    MAIN FEATURES OF THE 2KW FM DIGITAL TRANSMITTER MANUFACTURED BY OMB:


    • Typical AC efficiency >73% and typical RF efficiency of 84%.
    • Two amplifying modules of 1000W with MOSFET technology.
    • Two independent switching power supplies connected in parallel to maintain the equipment working in case any of them fails.
    • TFT screen and touch keyboard to control and to visualize operation parameters.
    • Memory recording of events.
    • Speed control of cooling fans according to temperature of power modules so as to optimize consumption and to decrease acoustic contamination.
    • Advanced protection against load mismatches without transmission cuts and fast protection in case of excessive reflected power and/or excessive input power.
    • Analog telemetry, digital remote control and telemetry RS232, remote control by opened/closed contacts
    • Low pass filter, Mains EMI filter and internal single-phase transient suppressor.
    • Automatic power reduction at night when used in combination with the EM 25 DIG PLUS transmitter.
    • Automatic power reduction in case of high temperature, the equipment returns automatically to its rated power value when the temperature reaches back an average value.
    • Automatic power reduction in case of excessive reflected power.
    • Automatic voltage control for efficiency optimization.
    • Power supplies of the amplifier are hot removable and interchangeable.
    • Automatic voltage control for efficiency optimization

    GENERAL CHARACTERISTICS

    CHARACTERISTICS AMPLIFIER FMA 2000 HE HPPS

    FREQUENCY RANGE 87.5-108MHz
    INPUT RETURN LOSS -20dB
    INPUT POWER <15W
    OUTPUT POWER 2000W nominal, manual and automatic adjustable
    POWER GAIN 19.2dB minimum
    TOTAL EFFICIENCY >73% typical
    RF EFFICIENCY 84% typical
    COOLING Forced air, speed control of fans
    HARMONICS LEVEL -80dBc
    INPUT/OUTPUT IMPEDANCE 50Ω
    RF INPUT CONNECTOR N(F)
    RF OUTPUT CONNECTOR 7/16"or EIA 7/8"
    RF MONITOR CONNECTOR BNC(F)
    POWER SUPPLY 230VAC ±15% → 195 ÷ 265VAC, 50/60Hz
    CONSUMPTION 2600VA (@2000W output power)
    PROTECTIONS Reflected power, forward power, overdrive, and overcurrent in power modules. Smart temperature protection. Ultra-fast protection against reflected and input power. Real time registration of events. Exciter’s inhibition
    TELEMETRY AND REMOTE CONTROL Analog telemetry (direct and reflected power measurements). Digital telemetry and remote control RS232. Remote control by opened/closed contacts
    OPERATION TEMPERATURE -5 to +40°C
    WEIGHT 20Kg approx. (without rack)
    DIMENSIONS 3 standard rack



    EXCITER EM 25 DIG PLUS
    FREQUENCY RANGE 87.5-108MHz
    FM MODULATION 75KHz (adjustable) peak deviation. Mono 180kF3E and Stereo 256kF3E
    AUDIO/MPX INPUT LEVEL -3.5 @ +12.5dBm @ 75KHz deviation
    AUDIO INPUT CONNECTORS XLR(F)
    AUXILIARY CHANNEL (RDS/SCA) INPUT LEVEL 7.5KHz deviation: -12.5 to 3.5dBm and 2KHz deviation: -24 to -8dBm
    AUX. CHANNEL INPUT IMPEDANCE 10kOhm
    MODULATION DISTORTION 7.5Khz deviation: <0.05%, 0.02% typical; 2KHz deviation: <0.2%, 0.05% typical
    S/N MONO RATIO 30 to 20000Hz: >76dB, 86dB typical, CCIR: >75dB, 81dB typical



    Technical specifications:




    S/N STEREO RATIO 30 to 20000Hz: >72dB, 77dB typical, CCIR: >68dB, 72dB typical
    AUDIO CHANNELS BANDWIDTH 30 to 15000Hz ±0.1dB
    PRE-EMPHASIS TIME CONSTANT Selectable, 25/50/75 microseconds
    RF NOMINAL OUTPUT POWER 25W
    TUNING STEPS OF TRANSMITTER 10/100KHz
    ALC OUTPUT POWER STABILITY ±3%
    SPURIOUS AND HARMONIC EMISSIONS <80dBc
    RF OUTPUT IMPEDANCE 50Ω
    RF INPUT POWER CONNECTOR N
    RF SAMPLING CONNECTOR BNC
    POWER SUPPLY 110-230Vac ±15% 50-60Hz
    OPERATION TEMPERATURE RANGE 0 to 40°C recommended, -10 to 55°C max.
    RELATIVE HUMIDITY Up to 95% without condensation
    DIMENSIONS 484x300x90mm, 2 standard rack units of 19"
    WEIGHT 7Kg
