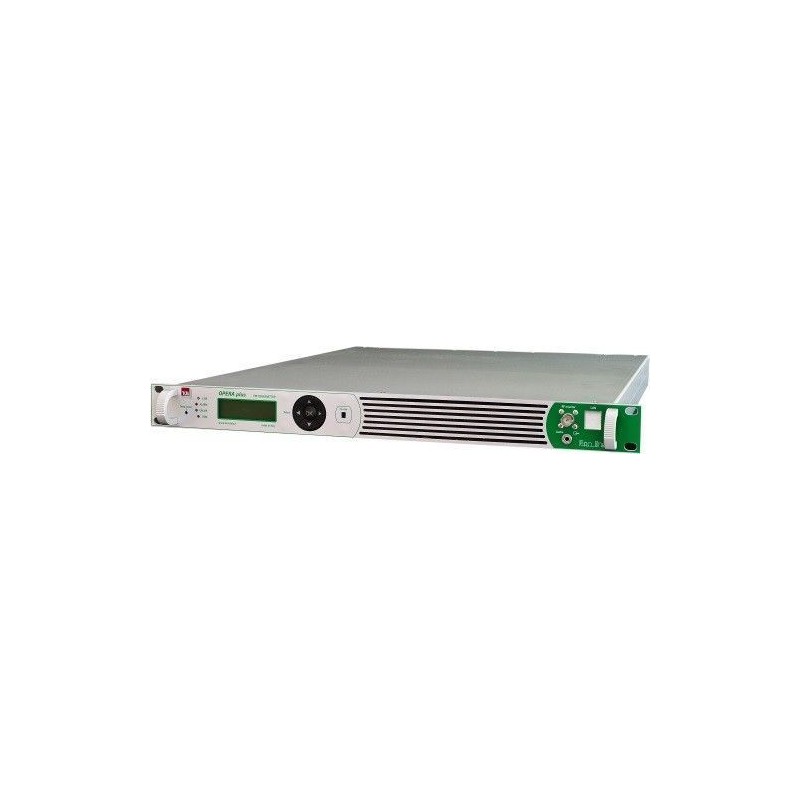

TEM 10 W FM -Sender in 1 Einheit 19 -Zoll -Rack MPX -Eingang


    Opera plus 10-100W FM 87,5 ÷ 108 MHz Sender verwenden Verstärker mit 6^ Generation LDMOS-Technologie, praktisch unzerbrechlich.

    Sammeln Sie mit dem Kauf dieses Artikels bis zu 103 Treuepunkte. Ihr Warenkorb hat insgesamt 103 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 20,60.

    € 1.392,55

    Stereo optie

    • Basis MPX Mono versie

    • Digital Stereo encoder met Digital inputs


    • RDS encoder

    • Zonder RDS

    Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
    Kostenloser Versand Kostenloser Versand in NL
    Volumenrabatt Volumenrabatt
    Bonus-System Bonus-System
    Sichere Zahlung Sichere Zahlung
    Geld-zurück-Garantie Geld-zurück-Garantie
    Trustpilot Trustpilot


    Menge Rabatt Sie sparen
    2 2% Bis zu € 55,70
    4 4% Bis zu € 222,81
    6 6% Bis zu € 501,32
    8 8% Bis zu € 891,23
    10 10% Bis zu € 1.392,55

    Mehr Infos TEM 10 W FM -Sender in 1 Einheit 19 -Zoll -Rack MPX -Eingang

    Product info:

    OPERA plus 20W FM 87,5÷108MHz transmitters use amplifiers with 6^ generation LDMos technology, practically unbreakable.The technical solutions adopted by our engineers are focused to assure energy saving (among the lowest) and high reliability. Settings, protections, telemetry are totally microprocessor controlled. The installation and the maintenance of the equipment are respectively very fast and easy.These fully protected transmitters are indicated for use in unmanned stations.


    - Wideband circuits amplifiers with LD-Mos technology

    - Built-in exciter with digital frequency synthesiser

    - Stereo encoder,RDS,AES-ABU and Audio change-over built-in

    - Automatic fold-back ROS protection

    - Fold-back temperature protection

    - LCD display to check all operating parameters

    - 20W-100W amplifiers in only one heat-sink for highest reliability

    - Switching-mode Power Supply - Efficiency >95%

    - Sealed duct cooling air with blowers

    - Easy removable blowers

    - Harmonics filter & directional coupler built-in 1 unit 19” standard rack

    - GSM Telemetry & TCP/IP Webserver

    - Headphone jack on front panel

    Technical Specs:

    - Operating Voltage: 100V ÷ 240V AC

    - Cooling system: forced air

    - AC Consumption: <120VA (50W) <200VA (100W)

    - Operational Temperature Range: -5° to 50°C

    - Storage Temperature Range: -20° to 60°C

    - RF Output connector: “N”

    - RFMonitor connector: BNC

    - Dimension: 485x44,4x625mm

    - Weight: 6/8 kg
