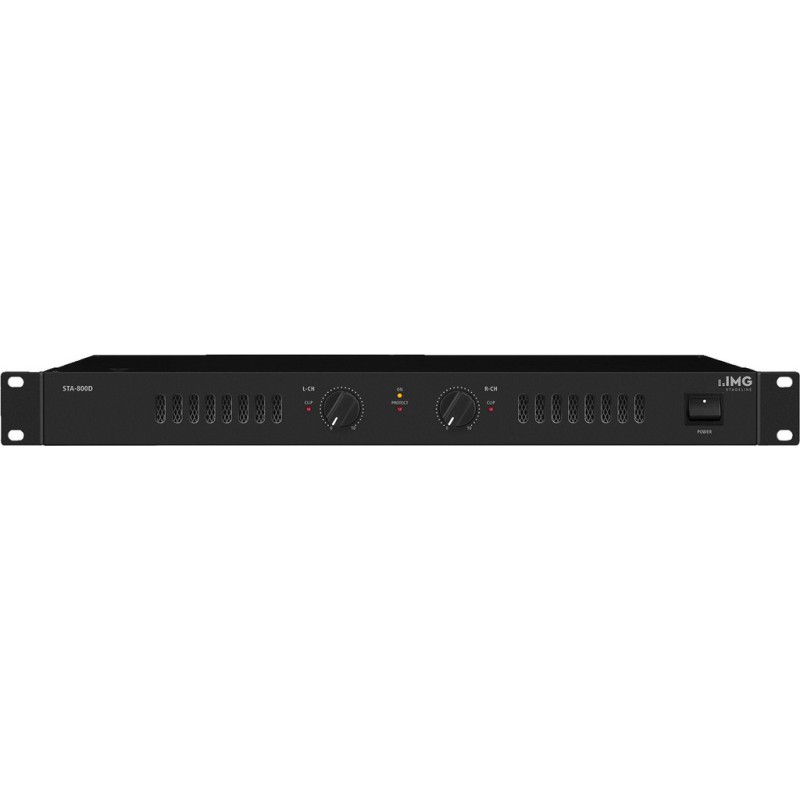

IMG-Stage Line | Monacor STA-800D Professional Stereo PA-Verstärker

IMG-Stage Line | Monacor STA-800D Professional stereo PA amplifier - STA-800D Vergrößern

: IMG-Stage Line

: STA-800D

: Neu

: Stereo -PA -Verstärker

: IMG-Stage Line | Monacor STA-800D Professional Stereo PA-Verstärker

STA-800D
Nummer: 0255200
Die neue Generation von digitalen PA-Verstärkern aus der IMG-Bühnenlinie beeindruckt mit hoher Leistungsfähigkeit und hoher Energieeffizienz < /p>

Sammeln Sie mit dem Kauf dieses Artikels bis zu 35 Treuepunkte. Ihr Warenkorb hat insgesamt 35 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 7,00.


€ 704,99

Menge Rabatt Sie sparen
2 2% Bis zu € 28,20
4 4% Bis zu € 112,80
6 6% Bis zu € 253,80
8 8% Bis zu € 451,19
10 10% Bis zu € 704,99

Expected to be available in week 35/22

Mehr Infos

Product discription:

The new generation of class D PA amplifiers from IMG STAGELINE impresses with a high power capability and high energy efficiency.
Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.
Stereo class D PA amplifier
  • Class D concept with power amplifier modules from HYPEX
  • Silent operation due to temperature-controlled fans
  • Lightweight design due to compact switch-mode power supply
  • Energy-efficient concept due to a high efficiency
  • High power reserves due to the application of two switch-mode power supplies
  • Powerful bass reproduction due to large buffer capacitors (high power reserves)
  • 2 level controls
  • Protected against short circuit and overtemperature
  • LEDs for indicating power, overload (clip) and protect
  • Super slimline design
  • NEUTRIK SPEAKON connections

Technical facts:

STA-800D
Peak output power 1,000 W
Power rating 800 W
Power rating at 4 Ω 2 x 400 W
Power rating at 8 Ω 2 x 210 W
Channels 2
Inputs 1 V/10 kΩ (XLR, bal.),

1 V/4.7 kΩ (RCA)
Frequency range 20-20,000 Hz
Integrated limiter no
S/N ratio > 110 dBA
THD < 0.004%
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 920 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 52 mm
Depth 298 mm
Rack spaces, RS 1
Weight 4 kg
Connections 1 x 3-pole XLR L/R

1 x RCA L/R

1 x NEUTRIK SPEAKON L/R

2 x pair of screw terminals
