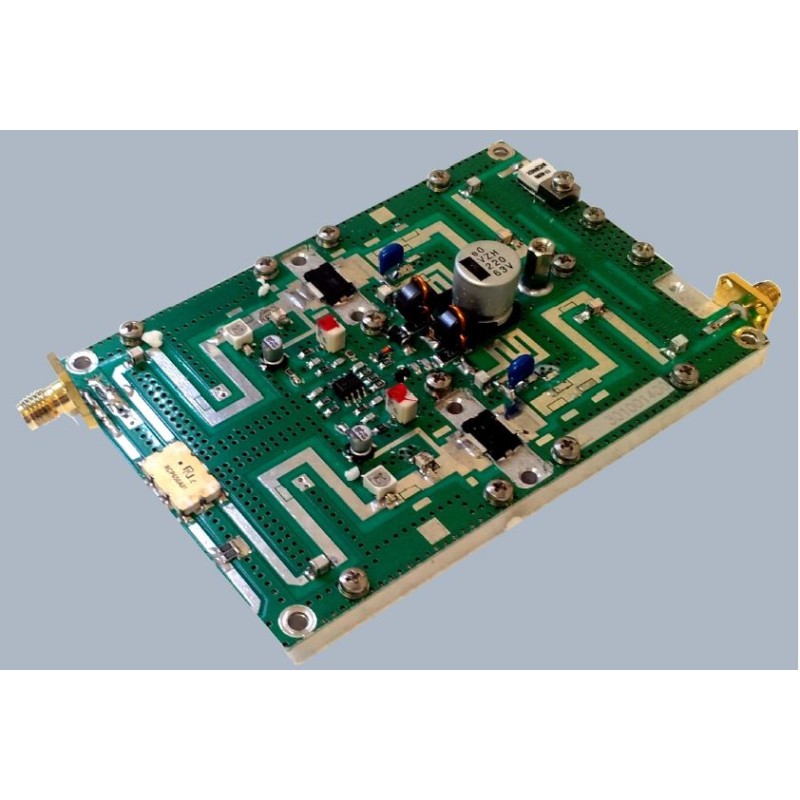

45 Wps UHF TV VERSTERKER PALLET P60K045

    P60K045

          Nieuw

              45Wps UHF TV VERSTERKER PALLET P60K045

              · Operative voltage: 50V
              · Frequency range: 470 – 860 MHz
              · Power out : 10W rms typ
              · Power out : 45Wps (analog)
              · In/out impedance: 50 ohm
              · Planar impedance transforme
              · Device: 2x MRF6VS25NR1
              · Class AB operation
              · Up to 26% efficiency (DTV mode)
              · Up to 55% efficiency (Analog mode)

            Meer details

          Bij het kopen van dit product krijgt u in totaal 22 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 22 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 4,40.


                € 454,54

                Rabatt auf Ihre Bestellung   Korting op je Bestelling
                Gratis verzenden Gratis verzenden tot 10 KG
                Volume korting Volume korting
                Bonus systeem Bonus systeem
                Veilig betalen Veilig betalen
                Niet goed geld terug Niet goed geld terug
                QShops certificaat QShops certificaat
                Trustpilot Trustpilot

        Volumekorting

          Aantal Korting U bespaart
          2 2% Tot € 18,18
          4 4% Tot € 72,73
          6 6% Tot € 163,63
          8 8% Tot € 290,91
          10 10% Tot € 454,54

        Meer informatie 45 Wps UHF TV VERSTERKER PALLET P60K045

          Product discription:


          45Wps UHF TV VERSTERKER PALLET P60K045

          · Operative voltage: 50V
          · Frequency range: 470 – 860 MHz
          · Power out : 10W rms typ
          · Power out : 45Wps (analog)
          · In/out impedance: 50 ohm
          · Planar impedance transforme
          · Device: 2x MRF6VS25NR1
          · Class AB operation
          · Up to 26% efficiency (DTV mode)
          · Up to 55% efficiency (Analog mode)

          Technical facts:


          • Frequency range 470 860 MHz
          • Out power (DVB-T/T2 shoulder < -30dBc) 10 13 W
          • Out power (Analog IMD < -50 dBc ) 40 45 W
          • Voltage supply 50 V
          • Quiescent current 0.6 A
          • Gain 17 18Current (@10W DVB) 1.5 A
          • Efficiency (@45W analog b.l.) 2.8 A
