Airlite USB 8 Channel Mixer D & R.

          Neu

          D&R Airlite-USB-Kanal-Rundfunkmixer

          • acht duale Eingänge
          • Eingebauter automatischer Stilledetektor
          • 4 USB -In/Out Stereo -Kanäle
          • Abschnitt USB -Kontrollabschnitt enthalten
          • AES 3 Digital Programmausgabe optional
          • Verschiedene GPIO -Optionen sind Software programmierbar
          • Durch Design fallen
          • ideal für Produktion, Sprachverfolgung und On-Air
          • CRM, Ansager und Telefonausgänge
          • BI Directional Cue Kommunikationsbus
          • in der VoIP -Funktionalität eingebaute
          • Eingehende Telefonanrufe auf dem Bildschirm sichtbar
          • Feed -Ausgang für externe Hybrid reinigen
          • internes Nicht -Stopp -Schalten

          Mehr Infos

          Sammeln Sie mit dem Kauf dieses Artikels bis zu 98 Treuepunkte. Ihr Warenkorb hat insgesamt 98 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 19,60.


                € 1.772,72

                    AES3 / EBU stereo digital output option

                      • Install AES3 / EBU stereo digital output option
                      • No-Install AES3 / EBU stereo digital output option

                  Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
                  Kostenloser Versand Kostenloser Versand in NL
                  Volumenrabatt Volumenrabatt
                  Bonus-System Bonus-System
                  Sichere Zahlung Sichere Zahlung
                  Geld-zurück-Garantie Geld-zurück-Garantie
                  Trustpilot Trustpilot

          Mengenrabatt

            Menge Rabatt Sie sparen
            2 2% Bis zu € 70,91
            4 4% Bis zu € 283,64
            6 6% Bis zu € 638,18
            8 8% Bis zu € 1.134,54
            10 10% Bis zu € 1.772,72

          Mehr Infos Airlite USB 8 Channel Mixer D & R.

          Product discription:

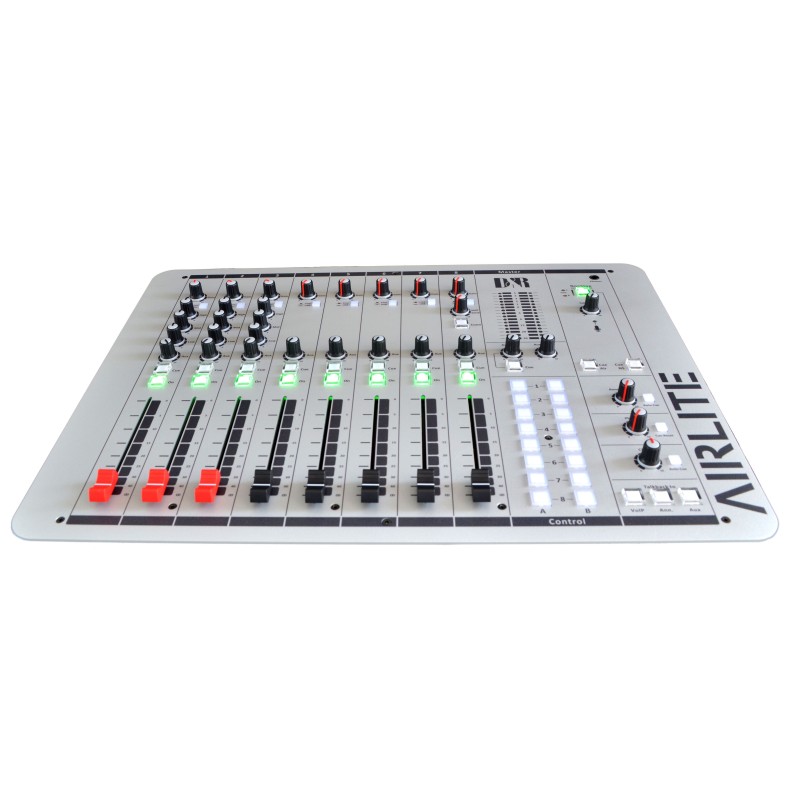

          D&R AIRLITE-USB  8 channel BROADCAST MIXER

          With the AIRLITE mixer you can now own a modern radio mixer for a very attractive price.
          This new hand built piece of precision equipment is the result of more than 42 years of experience at D&R.

          It is an intelligent mixer with an internal USB control section that speeds up daily use and includes a built in Silence Detector.

          It is a reliable workhorse for the self-op production D.J. with built in Telephone VOIP functionality.

           4 in/out channels of stereo USB and 3 very low noise Mic inputs.

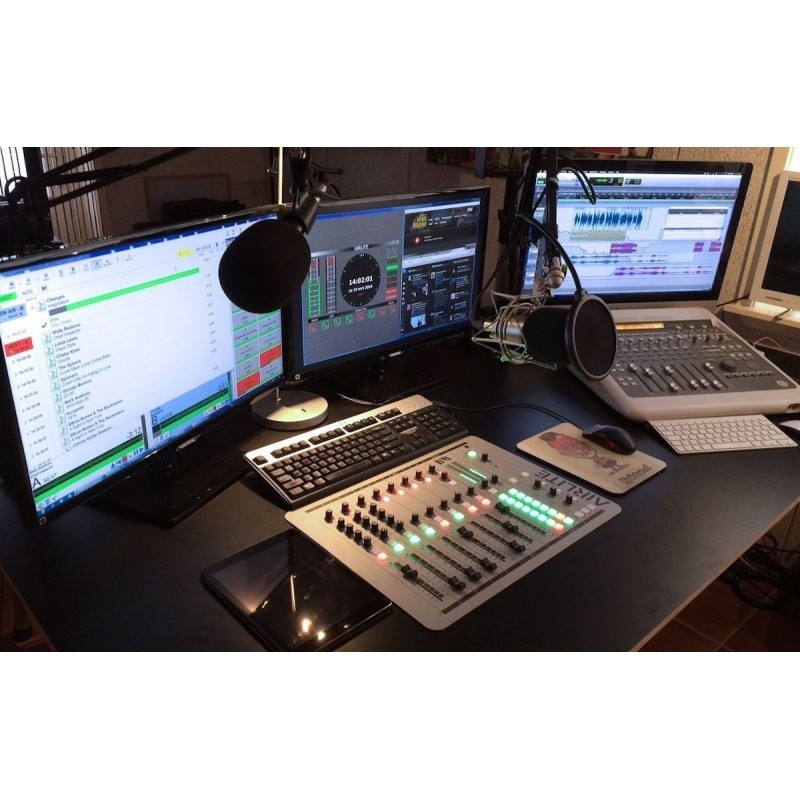

          The AIRLITE, ideal for ON-AIR, Production and perfect for streaming to the web.

          The AIRLITE accepts and instantly controls a maximum of 4 in/out stereo channels from your Play-out software.

          It is built into a metal, heavy duty RF shielded, powder coated chassis, designed with elegantly rounded corners.
          Easily “drops” into your furniture to give that exciting and contemporary radio look.
          A strong powder coated front panel with reliable controls gives you access to a flawless performance.

          AIRLITE-USB BROADCAST MIXER D&R

          • Eight dual inputs
          • Built in auto Silence detector
          • 4 USB in/out stereo channels
          • Play out USB control section included
          • AES 3 digital program output optional
          • Various GPIO options are software programmable
          • Drop through design
          • Ideal for Production, Voice tracking and ON-AIR
          • CRM, Announcer and  Phone outputs
          • Bi directional Cue communication bus
          • Built in VOIP functionality
          • Incoming phone calls visible on screen
          • Clean feed output for external Hybrid
          • Internal NON STOP switching



          Technical facts:

          INPUTS

          • Mic inp : bal, 2 kOhm, XLR ,48 volt Phantom.
          • Noise : - 128 dBr (A-weighted).
          • Sensitivity : - 70dB min, OdB Max.
          • Insert : Jack unbalanced send 600 Ohm -10dBv.
          • Aux Ret. : unbalanced 10kOhm -10dBv.
          • Line inputs: unbalanced 10kOhm, Cinch.
          • Gain : range of 40dB.
          • USB : 4x Stereo in and 4x stereo out.
          • Air input : - 10 dBv at 10kOhm stereo
          • Aux ret. : - 10 dBv at 10kOhm stereo
          • USB Fully compliant with USB 2.0 playback and record mode. 4x Stereo in and 4x stereo out.
          • USB CONTROL SECTION 16 free assignable illuminated switches based on the HID protocol
          • VoIP CHANNEL Dedicated USB connector for VoIP processing.

          OUTPUTS

          • Left/Right : + 6dBu bal./XLR. -10dBv/Cinch
          • CRM/Aux : + 6dBu unbal. on Cinch.
          • Headphone : 16-200 Ohm, Jack. (TPA 6120)
          • Announcer : 16-200 Ohm, Jack. (TPA 6120)
          • USB out : Program/Aux/Voice track/ Non Stop
          • EQUALIZER High : + / -12 dB at 12kHz shelving.
          • Mid : + / -12dB at 1 kHz bell curve.
          • Low : + / -12dB at 60 Hz bell curve.

          OVERALL

          • Frequency response : 10 - 60.000Hz.
          • Distortion : < 0.01% max at 1 kHz.
          • GPO/Mic On : Opto/FET’s. (24volt/50mA).
          • Led bars : 16 segment leds. : + Software meter application.

          CONTROL SOFTWARE

          • A software program is included in the delivery for programming the Control section (Airlite Virtual Keyboard Mapper) and internal mixer settings.

          DIMENSIONS

          • Left-Right : 482mm
          • Front panel thickness: 2mm
          • Radius Corners : 20mm
          • Front-Back : 365mm (8HE).
          • Height : 101,50mm.
          • Weight : 9kg.
          • Drop through hole : 449 x 344 mm
