FM Dipolantenne 87 194 MHz DP 100

DP-100

    Neu

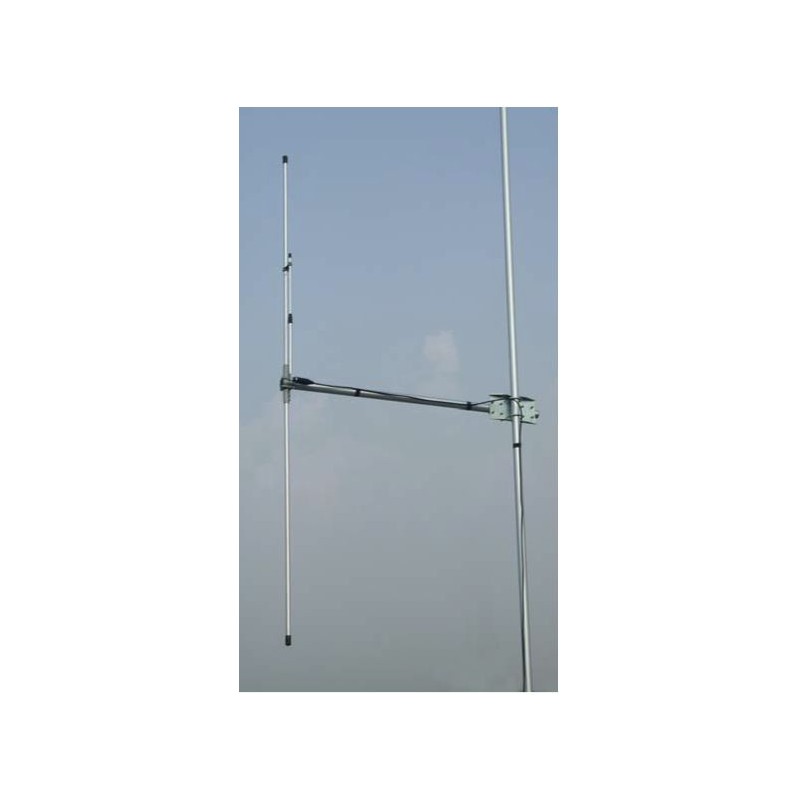

    FM Dipol DP 100 Broadcast Antenne | Sirio, Basisstation Antenne, Mono-Band-Einheitsverbindlichkeit, horizontaler oder vertikaler Polarisation, Richtungs (falls horizontal) oder Omnidirektional (wenn vertikal), Hochleistungshandhabungsfähigkeit, bestehend aus Aluminiumlegierung 6063 T-832

    Delivery: 10 - 15 days

    Achtung: Letzte verfügbare Teile!

    Sammeln Sie mit dem Kauf dieses Artikels bis zu 3 Treuepunkte. Ihr Warenkorb hat insgesamt 3 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 0,60.


    € 74,37

    Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
    Kostenloser Versand Kostenloser Versand in NL
    Volumenrabatt Volumenrabatt
    Bonus-System Bonus-System
    Sichere Zahlung Sichere Zahlung
    Geld-zurück-Garantie Geld-zurück-Garantie
    Trustpilot Trustpilot

    Mengenrabatt

    Menge Rabatt Sie sparen
    2 2% Bis zu € 2,97
    4 4% Bis zu € 11,90
    6 6% Bis zu € 26,77
    8 8% Bis zu € 47,60
    10 10% Bis zu € 74,37

    Mehr Infos FM Dipolantenne 87 194 MHz DP 100

    Product Discription:


    Base station antenna, Mono-band

    • Unity-gain, Horizontal or Vertical polarization
    • Directional (if Horizontal) or Omnidirectional (if Vertical)
    • High power handling capability
    • Made of aluminium alloy 6063 T-832




     Technical Facts:


    Electrical Data

      • Type: 1/2λ dipole
      • Frequency range: tunable 87...194 MHz
      • Impedance: 50Ω

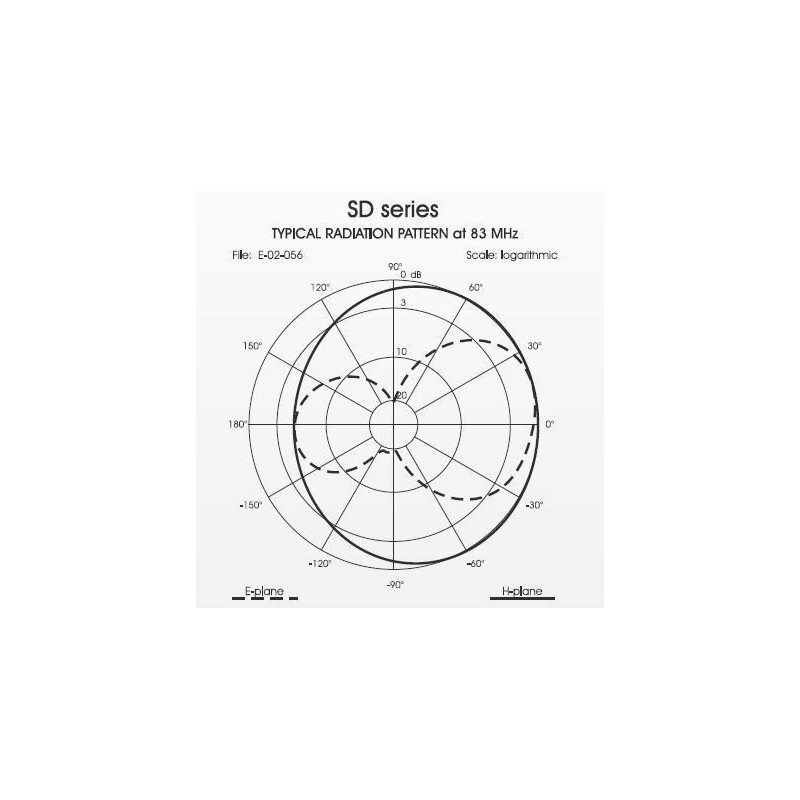

      • Radiation (H-plane): beamwidth @ -3 dB = 240*?
      • Radiation (E-plane): 80*?
      • Polarization: linear horizontal or vertical
      • Gain: 1.85* dBd - 4* dBi

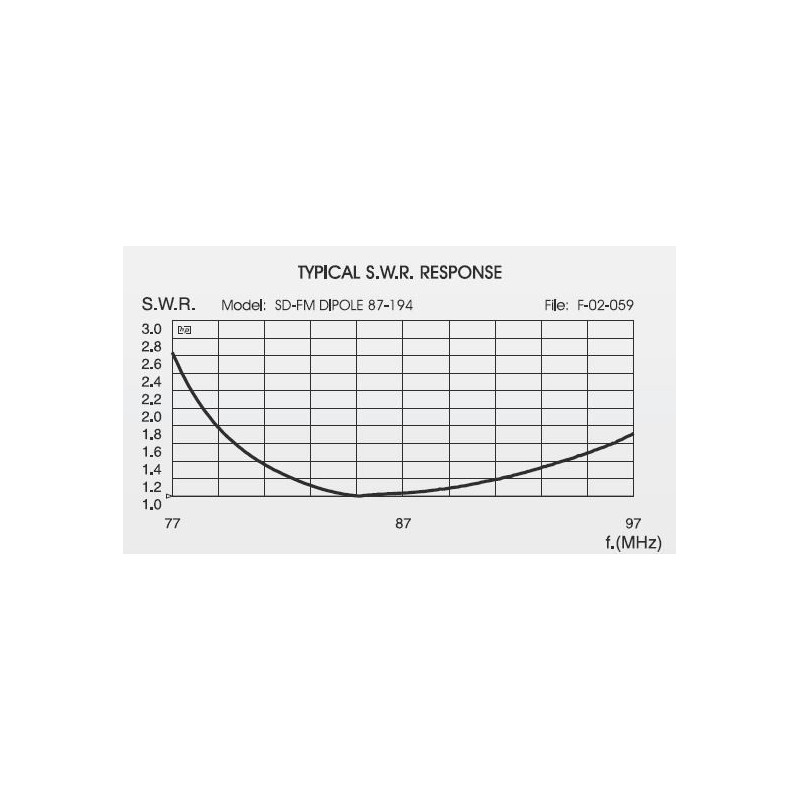

      • Bandwidth @ SWR 1.5: ≥ 14.5* MHz @ 87 MHz
      • SWR @ res. freq.: ≤ 1.2* @ 87 MHz
      • Max. Power (CW) @ 30?C: 300 Watts
      • Grounding protection: all metal parts are DC-grounded, the inner conductor is coupled capacitively
      • Connector: UHF-female

    Mechanical Data

      • Materials: Aluminium, EPDM rubber, zamak, zinc plated steel, chromed brass
      • Wind load / resistance: 99 N @ 150 Km/h / 160 Km/h
      • Wind surface: 0.08 m?
      • Height (approx.): 1600 mm
      • Weight (approx.): 1850 gr
      • Turning radius: 900mm
      • Operating temperature: -40?C to + 80?C
      • Mounting mast: ? 35-50 mm
