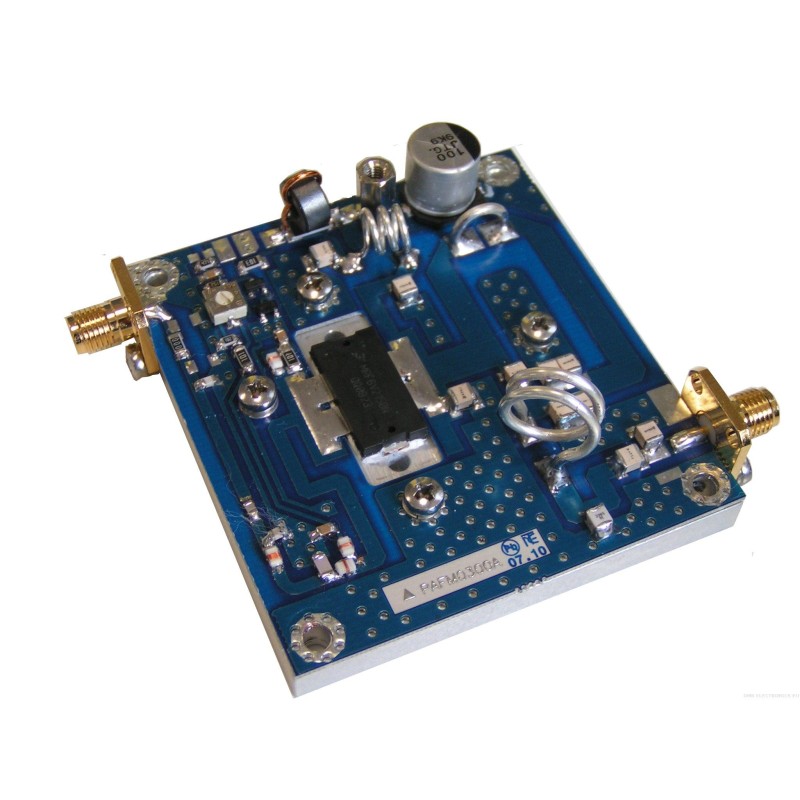

Stromverstärkerpalette 300W FM

    PAFM0300A

          Neu

          Stromverstärker -Abschnitt 300W FM, der hauptsächlich für die FM -Anwendung mit einem zuverlässigen LDMOS -Gerät entwickelt wurde.

          Dieser Verstärker ist für jede CW- oder gepulste Anwendung geeignet.

          • 87,5 - 108 MHz
          • schmollend: 300 w
          • Gewinn: 20db
          • 50 Ohm In/Out Impedance
          • Klasse C
          • Geräte: MRF6V2300NR1
          • Versorgung: 48 VDC Nominal
          • Abmessungen: (lxwxh): 60x65x30mm 2,36 ”x2,56” x1,18 ”

          Mehr Infos

          Sammeln Sie mit dem Kauf dieses Artikels bis zu 18 Treuepunkte. Ihr Warenkorb hat insgesamt 18 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 3,60.


                € 367,76

                Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
                Kostenloser Versand Kostenloser Versand in NL
                Volumenrabatt Volumenrabatt
                Bonus-System Bonus-System
                Sichere Zahlung Sichere Zahlung
                Geld-zurück-Garantie Geld-zurück-Garantie
                Trustpilot Trustpilot

        Mengenrabatt

          Menge Rabatt Sie sparen
          2 2% Bis zu € 14,71
          4 4% Bis zu € 58,84
          6 6% Bis zu € 132,39
          8 8% Bis zu € 235,37
          10 10% Bis zu € 367,76

        Mehr Infos Stromverstärkerpalette 300W FM

        Product discription:


        Power Amplifier Section 300W FM Designed primarily for FM application, with a reliable Power Ldmos device.

        This amplifier is suitable for any CW or pulsed application.

        • 87.5 - 108 MHz
        • Pout : 300 W
        • Gain : 20dB
        • 50 Ohm in/out impedance
        • Class C
        • Devices : MRF6V2300NR1
        • Supply : 48 Vdc nominal
        • Dimensions : (LxWxH):60x65x30mm 2,36”x2,56”x1,18”



        Technical facts:


        • Voltage supply 55Vdc Vs
        • Supply current 1.5Adc Is
        • Operating Temperature range 0 +80 °C Note1
        • Storage Temperature range -30 +100 °C
        • Load Mismatch (full power, all phase angle) 2:1 Note2
        • Frequency range 87.5 108 Mhz Full band
        • Power gain 18 20 dB Note3
        • Power Output 250 300 350 W
        • Power Input 33 34.7 dBm Note4
        • Efficiency 75 80 % Note5
        • Supply voltage 30 45 50 V
        • Power gain variation +/- 1 +/-1.5 dB
        • F2 Second Harmonic -30 dB
        • F3 Third Harmonic -45 dB
