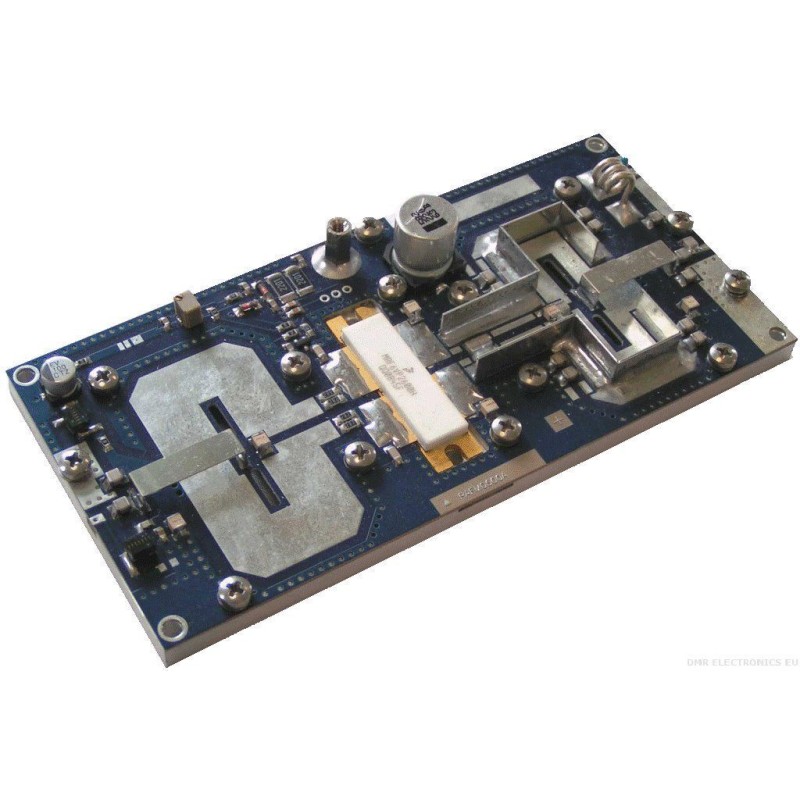

Stromverstärkerpalette 600W FM PAFM0600XR

PAFM0600XR

    Neu

    Stromverstärker Abschnitt 600W FM, der hauptsächlich für die FM -Anwendung entwickelt wurde, ist dieser Verstärker für jede CW- oder gepulste Anwendung geeignet.

    • 87,5 - 108 MHz
    • schmollend: 600 w
    • Gewinn: 23 dB
    • Extreme Robustheit (VSWR 65: 1)
    • Klasse C
    • Gerät: MRFE6VP5600H
    • Versorgung: 30-48 VDC - 43VDC Nominal
    • Abmessungen (LXWXH): 140x68x21 mm 5,55 ”x2,67” x0,82 ”

    Sammeln Sie mit dem Kauf dieses Artikels bis zu 30 Treuepunkte. Ihr Warenkorb hat insgesamt 30 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 6,00.


    € 619,83

    Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
    Kostenloser Versand Kostenloser Versand in NL
    Volumenrabatt Volumenrabatt
    Bonus-System Bonus-System
    Sichere Zahlung Sichere Zahlung
    Geld-zurück-Garantie Geld-zurück-Garantie
    Trustpilot Trustpilot

    Mengenrabatt

    Menge Rabatt Sie sparen
    2 2% Bis zu € 24,79
    4 4% Bis zu € 99,17
    6 6% Bis zu € 223,14
    8 8% Bis zu € 396,69
    10 10% Bis zu € 619,83

    Mehr Infos Stromverstärkerpalette 600W FM PAFM0600XR

    Product discription:


    Power Amplifier Section 600W FM Designed primarily for FM application, this amplifier is suitable for any CW or pulsed application.

    • 87.5 - 108 MHz
    • Pout: 600 W
    • Gain: 23 dB
    • Extreme Ruggedness (VSWR 65:1)
    • Class C
    • Device: MRF6V5600NR1
    • Supply : 30-48 VDC - 43VDC nominal
    • Dimensions(LxWxH): 140x68x21 mm 5,55”x2,67”x0,82”



    Technical facts:


    • Voltage supply 52 V V
    • Supply current 20 A I
    • Operating Temperature range 0 +95 °C Note1
    • Storage Temperature range -30 +90 °C
    • Load Mismatch (full power, all phase angle) 2:1 Note2
    • Frequency range 87.5 108 MHz
    • Power gain (saturated) 21 24 dB Note3
    • Power Output 550 600 650 W
    • Power Input 2 5 8 W Note4
    • Efficiency 74 80 % Note5
    • Supply voltage 30 48 V
    • Power gain variation +/-0.5 +/-1 dB
    • F2 Second Harmonic -28 -24 dB
    • F3 Third Harmonic -28 -24 dB
