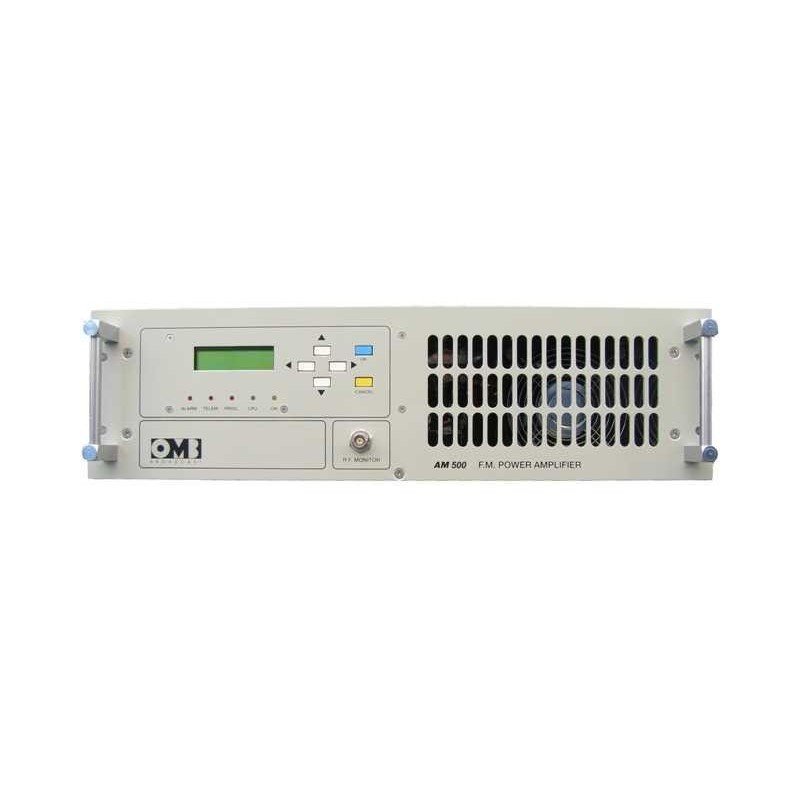

OMB Professional AM 500W digitaler FM -Verstärker

    AM 500

          Überholt

          Der AM 500 ist ein Hochleistungs-500W-FM-Verstärker, der mit der MOSFET-Technologie

          entwickelt wurde

          Mehr Infos

          Sammeln Sie mit dem Kauf dieses Artikels bis zu 183 Treuepunkte. Ihr Warenkorb hat insgesamt 183 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 36,60.


                € 3.665,28

                Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
                Kostenloser Versand Kostenloser Versand in NL
                Volumenrabatt Volumenrabatt
                Bonus-System Bonus-System
                Sichere Zahlung Sichere Zahlung
                Geld-zurück-Garantie Geld-zurück-Garantie
                Trustpilot Trustpilot

        Mengenrabatt

          Menge Rabatt Sie sparen
          2 2% Bis zu € 146,61
          4 4% Bis zu € 586,44
          6 6% Bis zu € 1.319,50
          8 8% Bis zu € 2.345,78
          10 10% Bis zu € 3.665,28

        Mehr Infos OMB Professional AM 500W digitaler FM -Verstärker

        OMB Professional AM 500W Digital FM Amplifier


        Product Discription:
        The AM 500 is a high-performance 500W FM amplifier, developed with MOSFET technology.

        It includes an elliptic LPF (Low Pass Filter) with high-attenuation in the harmonic frequencies and its sophisticated power supply unit with a DC-DC converter guarantees an optimal working with mains voltage fluctuations between 90 and 260V without output power variations.

        The most relevant parameters can be visualized in the LCD display: forward and reflected power, overdrive, module 1 current, module 2 current, power supply 1 voltage, power supply 2 voltage,etc. And the equipment also provides cyclical protection system to protect the amplifier against forward and reflected over-power, overexcitement, over-current, over-voltage and excessive temperatures.

        The 2 independent 300W amplifying modules are combined and mounted on a high-performance heat-sink, so that the transistors work in optimal thermal conditions even in really hot environments.

        Furthermore, the AM 500 provides a telemetry output in order to get information about internal parameters of the amplifier.




        Technical Facts:
        • frequency range 87.5 ~ 108MHz
        • operating class B
        • input return loss 20dB
        • input power 3 ~ 6W
        • OUTPUT POWER500W nominal
        • power gain 19.2dB typical
        • efficency 70% approx.
        • coolingAir forced
        • harmonic <-70dBc
        • input/output impedance 50Ω
        • RF input connector N Female
        • RF output ConnectorN Female
        • RF monitor ConnectorBNC Female
        • AC power supply90 ~ 260VAC, 50/60 Hz, <1000VA
        • Protections
          Reflected power (10% nominal power), over-consumption, temperature, power supply failure, overdrive, direct and reflected foldback.
        • remote control and TElemetry RS-232, exciter inhibition
        • Dimensions 3RU (19'' rack) 465mm depth (without handles)
        • weight 24.6Kg (54.12Lbs)
