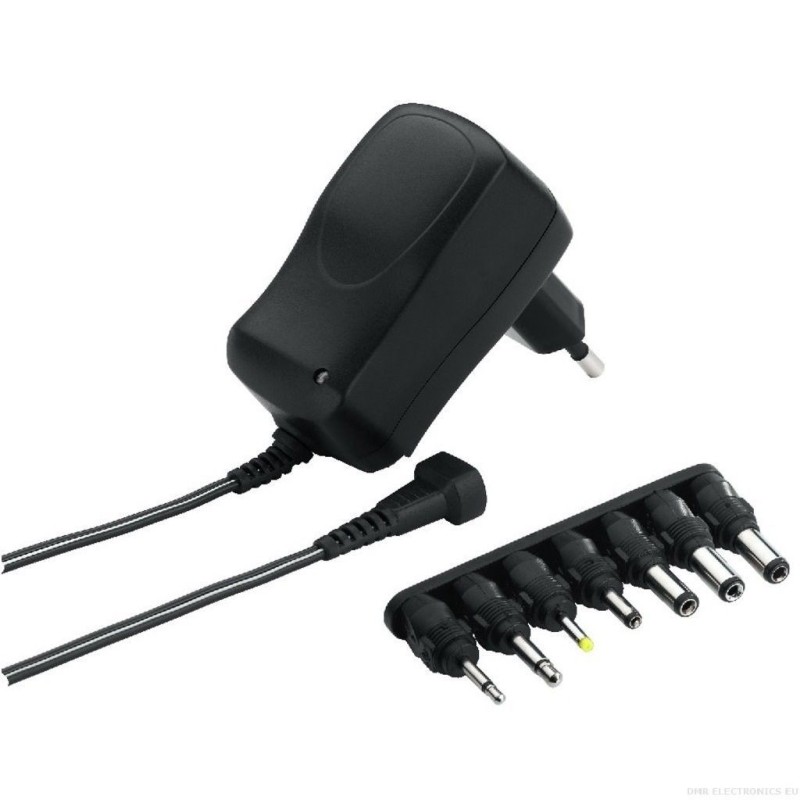

Switch-mode PSU, 0.6 A PSS-600E

View larger

Mean Well

Condition New

Switch-mode PSU, 0.6 A PSS-600E

with a high energy efficiency, corresponds to the EU ecodesign directive.

Saves electricity costs due to low power consumption in standby mode (< 0.3 W)
Switchable output voltage
Protected against short circuit, overload and overheating
Power LED
1.8 m connection cable
Selectable polarity by reversing the supplied adapters
7 plug-in adapters: plugs: 2.5 mm, 3.5 mm, hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm

No reward points for this product.

Product discription:

Switch-mode PSU, 0.6 A PSS-600E

with a high energy efficiency, corresponds to the EU ecodesign directive.

Saves electricity costs due to low power consumption in standby mode (< 0.3 W)
Switchable output voltage
Protected against short circuit, overload and overheating
Power LED
1.8 m connection cable
Selectable polarity by reversing the supplied adapters
7 plug-in adapters: plugs: 2.5 mm, 3.5 mm, hollow plugs: 2.35/0.75 mm, 3.5/1.35 mm, 5.0/2.1 mm, 5.5/2.1 mm, 5.5/2.5 mm

Techincal specs:

Category	switch-mode PSU
Input voltage	˜ 100-240 V/50-60 Hz/160 mA
Output voltage	DC current 3/4.5/5/6/7.5/9/12 V
Charging/output current	600 mA
Charging time	-
Trickle charge	-
Polarity selection	yes
Switchable output voltage	yes
Reactivation	-
Connections	plug-in adapter
Cable length	1.8 m
Short-circuit protection	yes
Overload protection	yes
Overheat protection	yes
Reverse polarity protection	-
Detection of faulty battery	-
Protective class	-
Admiss. ambient temp.	0-40 °C
Dimensions	38 x 50 x 68 mm
Weight	100 g
Other features	eco
