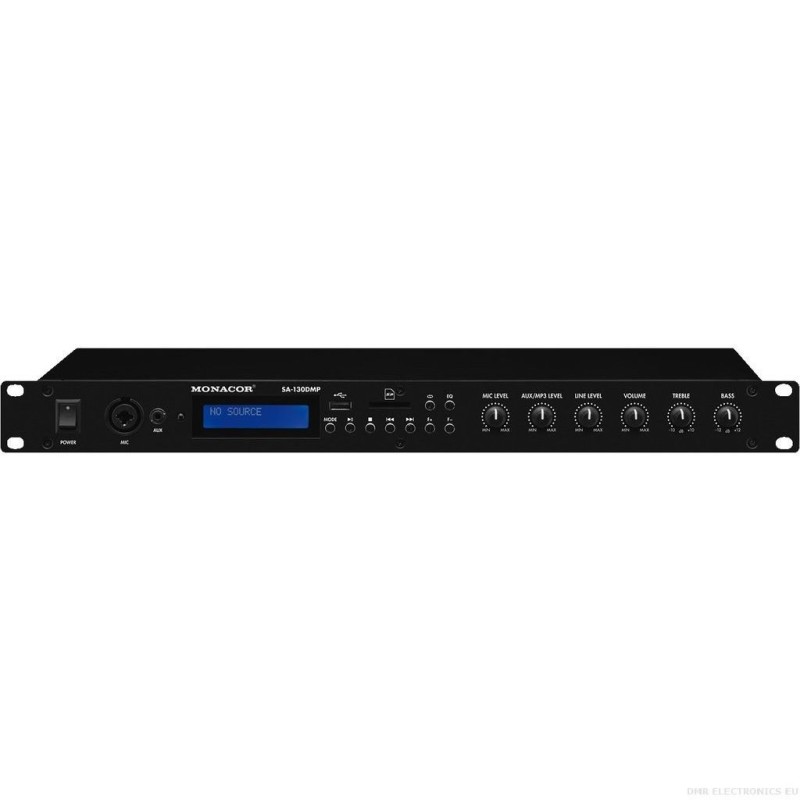

IMG-Stage Line | Monacor Stereo amplifier, 140 W SA-130DMP

    IMG-Stage Line | Monacor Stereo amplifier, 140 W SA-130DMP View larger

    SA-130DMP

    Stereo amplifier, 140 W with integrated MP3 player, Bluetooth receiver, FM radio, USB interface and SD/MMC card slot. model SA-130DMP

    Delivery time upon request

    By buying this product you can collect up to 17 loyalty points. Your cart will total 17 loyalty points that can be converted into a voucher of € 3,40.


    € 344,99

    Discount on your Order Discount on your Order
    Free Shipping Free Shipping in NL
    Volume Discount Volume Discount
    Bonus System Bonus System
    Secure Payment Secure Payment
    Money Back Guarantee Money Back Guarantee
    Trustpilot Trustpilot

    Volume discounts

    Quantity Discount You Save
    2 2% Up to € 13,80
    4 4% Up to € 55,20
    6 6% Up to € 124,20
    8 8% Up to € 220,79
    10 10% Up to € 344,99

    Product information IMG-Stage Line | Monacor Stereo amplifier, 140 W SA-130DMP

    Stereo amplifier, 140 W with integrated MP3 player, Bluetooth receiver, FM radio, USB interface and SD/MMC card slot.

    • Bluetooth receiver for wireless connection of laptops, smartphones or tablet PCs
    • USB storage media can be connected directly
    • For SD/MMC cards up to 32 GB (FAT16/FAT32), available at option
    • Adjustable microphone input and aux input on the front panel
    • Adjustable stereo line input
    • Insert facility, e.g. for effect units, equalizers, feedback controllers
    • 2-way tone control
    • Adjustable master output
    • 482 mm (19") rack installation, 1 RS


    Technical Facts Amplifiers




    Channels 2
    Zones -
    Power rating 140 W
    Power rating at 2 Ω -
    Power rating at 4 Ω 2 x 70 W
    Power rating at 8 Ω -
    Power rating at 100 V -
    Power rating with 4 Ω bridged operation -
    Power rating with 8 Ω bridged operation -
    Peak music power output (PMAX) -
    Output impedance
    Inputs 480 mV/20 kΩ (line)
    1.3 mV/500 Ω (mic)
    190 mV/10 kΩ (aux)
    580 mV/22 kΩ (amp in)
    Attenuation factor
    Frequency range 20-20,000 Hz
    Crossover network -
    Crossover frequency -
    Integrated limiter -
    Equalizer bass ± 12 dB/100 Hz
    Equalizer midrange -
    Equalizer treble ± 10 dB/10 kHz
    S/N ratio 90 dB
    Crosstalk attenuation -
    THD 0.1%
    Power supply ˜ 230 V/50 Hz/350 VA
    Mains voltage ˜ 230 V
    Mains frequency 50 Hz
    Power consumption, operation 350 VA
    Power consumption, standby -
    Standby current -
    Alternative operating voltage -
    Alternative power supply -
    Admiss. ambient temp. 0-40 °C
    Dimensions 482 x 44 x 245 mm
    Width 482 mm
    Height 44 mm
    Depth 245 mm
    Rack spaces, RS 1
    Weight 4.9 kg
    Connections 1 x RCA L/R (line),
    1 x XLR/6.3 mm jack (mic),
    1 x 3.5 mm jack (aux),
    1 x RCA L/R (amp in),
    1 x RCA L/R (amp out),
    screw terminals (speakers)
