RigExpert TI-5000

    TI-5000

          Nieuw

              RigExpert TI-5000 is a new and powerful USB transceiver interface based on high quality stereo codec IC, for operating phone, CW and digital modes using personal computer.

            Meer details

          Let op: laatste item(s) op voorraad!

          Bij het kopen van dit product krijgt u in totaal 10 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 10 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 2,00.


                € 219,00

                Rabatt auf Ihre Bestellung   Korting op je Bestelling
                Gratis verzenden Gratis verzenden tot 10 KG
                Volume korting Volume korting
                Bonus systeem Bonus systeem
                Veilig betalen Veilig betalen
                Niet goed geld terug Niet goed geld terug
                QShops certificaat QShops certificaat
                Trustpilot Trustpilot

        Volumekorting

          Aantal Korting U bespaart
          2 2% Tot € 8,76
          4 4% Tot € 35,04
          6 6% Tot € 78,84
          8 8% Tot € 140,16
          10 10% Tot € 219,00

        Meer informatie RigExpert TI-5000

          Product discription:


          RigExpert TI-5000 is a new and powerful USB transceiver interface based on high quality stereo codec IC, for operating phone, CW and digital modes using personal computer.

          TI-5000 provides:

          Transceiver audio interface

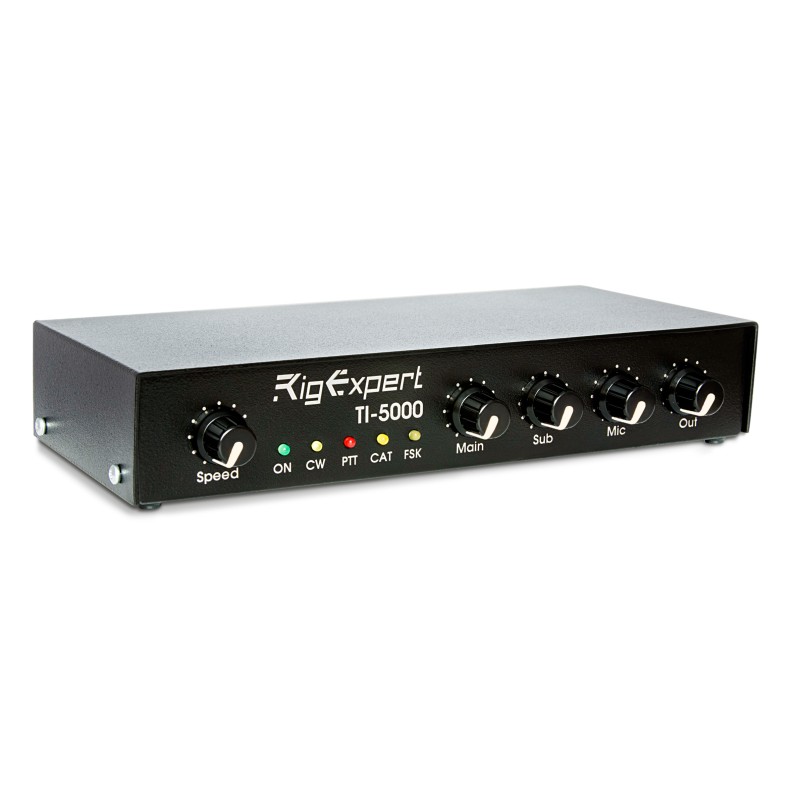

          Analog audio interface is a connection to transceiver audio output (external speaker connector or line output) and transceiver audio input (microphone connector or line input). Audio interface enables operating digital modes, recording and playing voice, as well as other useful functions (such as measuring levels of a signal from the air) by using a computer. Input (two channels) and output volume levels are adjusted by potentiometers on the front panel of the device.

          CAT interface for various transceiver models

          CAT (Computer Aided Transceiver) system provides control of transceiver frequency, operating mode and other functions by computer software. Normally, modern transceivers have serial (with various signal levels) link providing CAT interface.In RigExpert TI-5000, CAT interface port is recognized as a COM port by computer software.

          FSK output

          FSK (Frequency Shift Keying) is a popular method of transmitting digital messages over radio primarily used in radioteletype (RTTY) mode. Most transceivers provide FSK modulator feature to make the RTTY signal stable and clear.A separate COM port is assigned for the FSK output when using RigExpert TI-5000.

          PTT and CW output functions

          Transceivers provide PTT (Push To Talk) and CW (Continuous Wave) keyer inputs to allow setting the transmitter on or off.In RigExpert TI-5000, PTT and CW outputs are assigned to the RTS and DTR lines of a separate COM port.

          CW keyer

          Independent keyer paddle input plus built-in RigExpert implementation of WinKey with separate virtual COM port for WinKey.

          Footswitch input

          Microphone input with QSO Recording option and level control

          Plug-and-Play configuration

          Windows/MacOS/Linux compatible

          Compatible with any HAM Radio software: MixW, MMTTY, WSJT, etc.

          Technical facts:


          General features:

          • Transceiver audio interface for operating digital modes, voice recording and playback
          • CAT (Computer Aided Transceiver) system
          • FSK output
          • PTT and CW outputs
          • CW keyer (WinKey)
          • Footswitch input
          • Microphone input

          Computer connection:

          • USB (Universal Serial Bus) connector
          • Powered from the USB port (consuming 100 mA maximum)
          • No external power supply needed

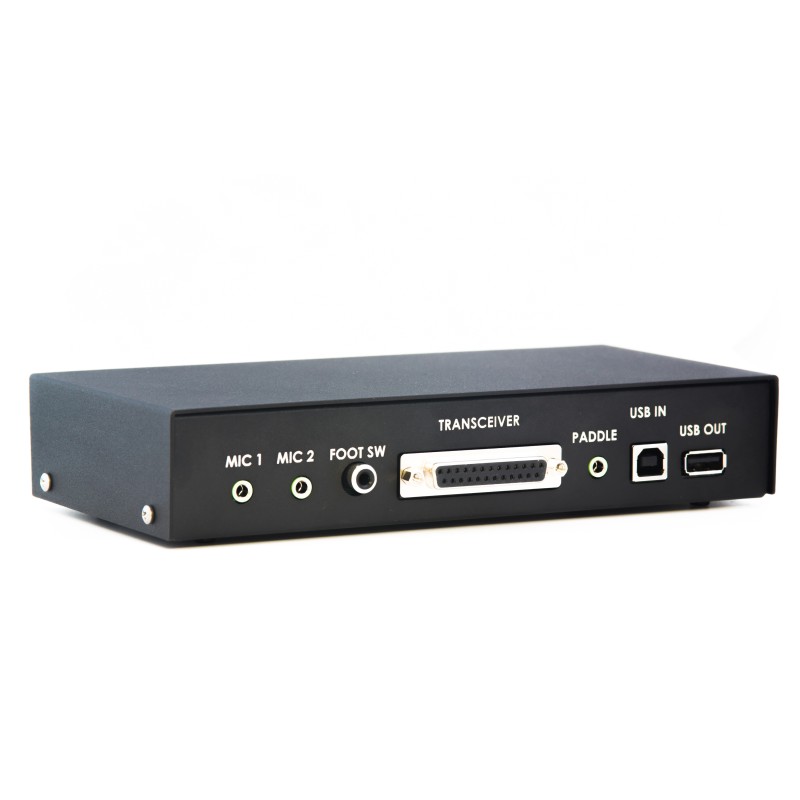

          Transceiver connection:

          • Single 25-pin connector for transceiver cable
          • Various transceiver models supported

          Audio interface:

          • Insulated from digital nets
          • Maximum input/output amplitude is 1V
          • Input/output samplerate: 8 to 48 kHz
          • True 16-bit DAC/ADC used

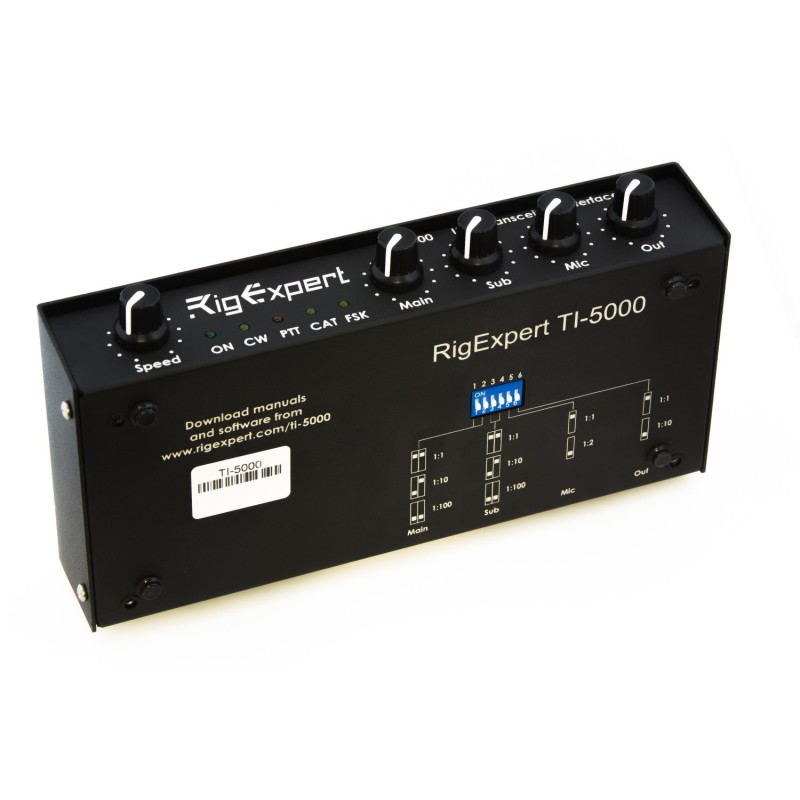

          • Volume levels are adjusted by the front panel potentiometers
          • External microphone input with level control
          • Recording QSO audio stream

           CAT serial port:

          • Baudrate: 300-115200 baud
          • Electrical compatibility: RS-232, CI-V, TTL or inverted-TTL (Yaesu, Icom, Kenwood, Ten-Tec, Elecraft and JRC transceivers)

          PTT/CW outputs:

          • PTT output: open collector and TTL-level
          • CW output: open collector
          • Maximum current is 50 mA

          FSK output:

          • Baudrate: 45-1200 baud
          • Open collector output

          System requirements:

          • Desktop or laptop computer with USB 1/2/3 compliant port
          • MacOS/Linux/Windows 2000/XP/2003/Vista/7/8/10 (32- or 64-bit) operating system
          • No drivers required for systems on Windows 10/MacOS/Linux
          • For Windows 7 and previous versions of Windows only Winkey and FSK drivers are required

          Supported software:

          • MixW 2/3/4
          • MMTTY, MMSSTV
          • WSJT, WSJT-X, WSPR
          • all other soundcard software!

          Dimensions: 20 x 10 x 4 cm

          Weight: 300 g

          Operating temperature: 0…40 °C

          Warranty: 2 years

          GTIN code: 4820185420167
