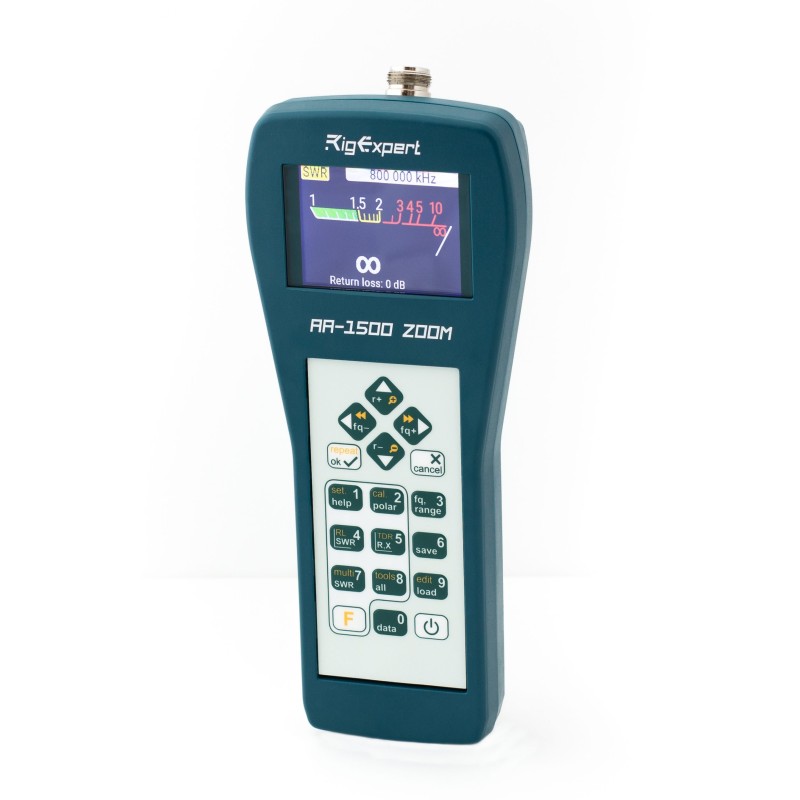

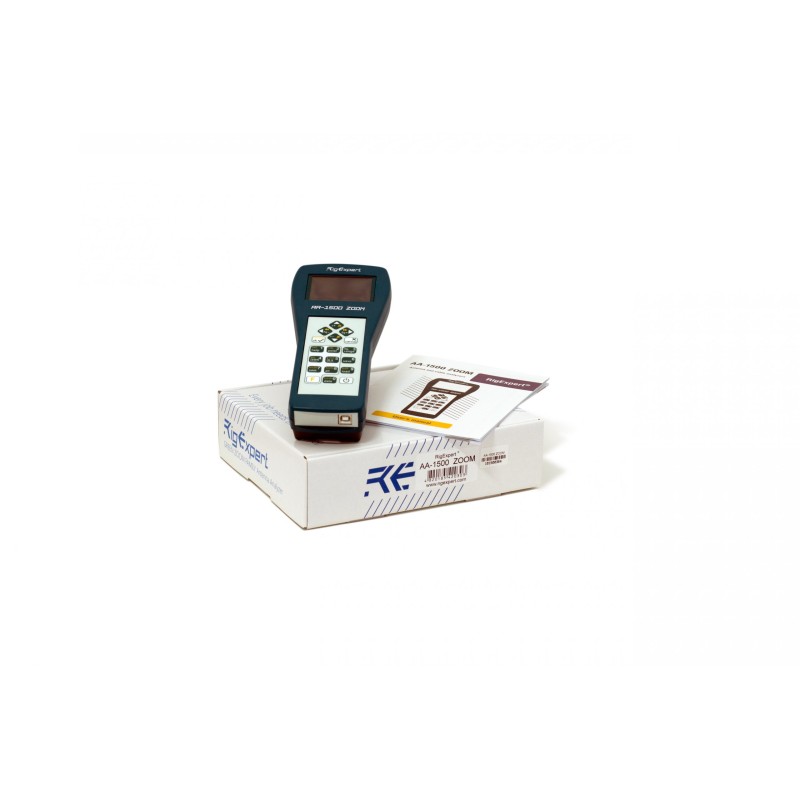

RigExpert AA-1500 ZOOM

RigExpert AA-1500 ZOOM

RigExpert

AA-1500

RigExpert AA-1500 ZOOM.

Specifications

Frequency range: 0.1 to 1500 MHz

Frequency entry: 1 kHz resolution

Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600-Ohms systems

SWR measurement range: 1 to 100 in numerical mode, 1 to 10 in graph mode

Bij het kopen van dit product krijgt u in totaal 38 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 38 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 7,60.


€ 768,59

Korting op je Bestelling Korting op je Bestelling
Gratis verzenden Gratis verzenden tot 10 KG
Volume korting Volume korting
Bonus systeem Bonus systeem
Veilig betalen Veilig betalen
Niet goed geld terug Niet goed geld terug
Trustpilot Trustpilot

Volumekorting

Aantal Korting U bespaart
2 2% Tot € 30,74
4 4% Tot € 122,97
6 6% Tot € 276,69
8 8% Tot € 491,90
10 10% Tot € 768,59

Productinformatie RigExpert AA-1500 ZOOM

RigExpert AA-1500 ZOOM.

Specifications

Frequency range: 0.1 to 1500 MHz

Frequency entry: 1 kHz resolution

Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600-Ohms systems

SWR measurement range: 1 to 100 in numerical mode, 1 to 10 in graph mode

R and X range: 0…2000, -2000…2000

Display modes: SWR, return loss, R, X, Z, L, C, Magnitude, and Phase Angle at a single frequency, SWR chart (100 points). SWR chart at fixed HAM bands by IARU Regions (100 points), Cable tools (Velocity factor & Cable length measurer, Stub tuner, Cable loss chart, Cable impedance chart), TDR

Optional open-short-load calibration in SWR, R, X, or Smith/polar chart graph modes.

RF output:
–    Connector type: N
–    Output signal shape: square, 0.1 to 200 MHz. For higher frequencies, harmonics of the main signal are used.
–    Output power: -10 dBm (at 50 Ohm load)

Power:
–    Three 1.2V, 1800…3000 mAh, Ni-MH batteries, type AA
–    Max. 3 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used
–    When the analyzer is connected to a PC or a DC adapter with a USB socket, it takes power from these sources

Interface:
– 320×240 color TFT display
– 6×3 keys on the water-proof keypad
– Multilingual menus and help screens (English – Spanish – Japanese)
– USB connection to a personal computer
– Bluetooth v. 4.2 (Single-mode, Class B)

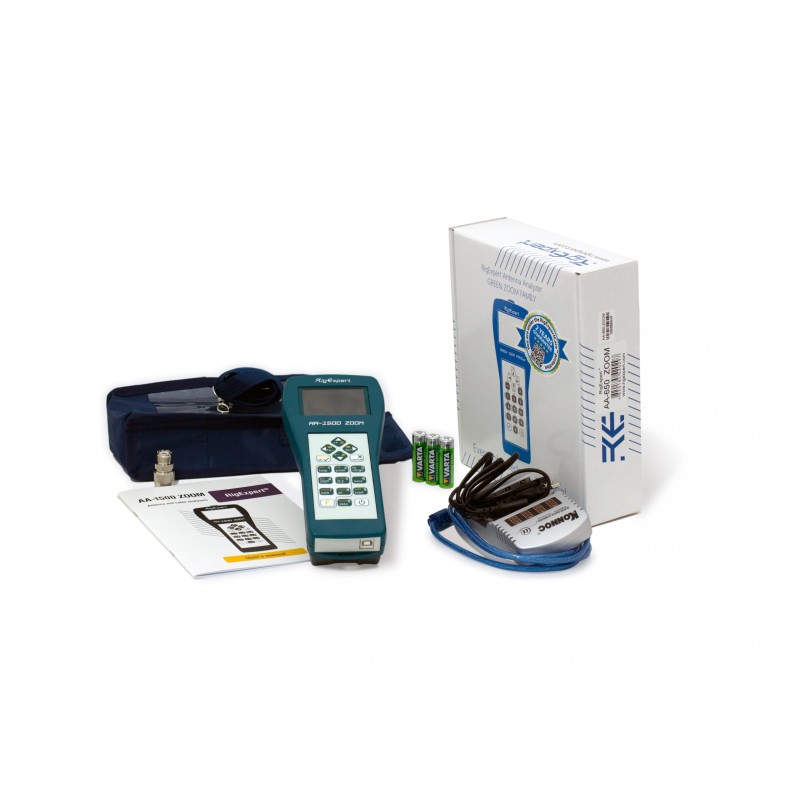

Accessories inside the box: Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter

Dimensions: 23x10x5.5 cm (9x4x2”)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 650g (23 Oz)

Warranty: 2 years RigExpert Care

GTIN-13: 4820185420303

RigExpert AA-1500 ZOOM is made in Ukraine.

Specifications are subject to change without notice.
