ULM-164 6 Kanäle Zeilensplitter

IMG-Stage Line ULM-164 6-weg line splitter - Monacor Audio-Processor

Vergrößern

€ 324,99

Mengenrabatt

Menge	Rabatt	Sie sparen
2	2%	Bis zu € 13,00
4	4%	Bis zu € 52,00
6	6%	Bis zu € 117,00
8	8%	Bis zu € 207,99
10	10%	Bis zu € 324,99

Menge

Secure payments powered by Mollie

Brand: IMG-Stage Line

Model: ULM-164

Condition: Neu

Kategorie: Monacor Audio-Processor

ULM-164 /SW
Nummer: 20.2240
Universal Line Mixer, 6 Kanäle < /p>

Produktseite drucken

Angesehene Artikel

RC-121 SW Profilregalschränke

Mehr Infos

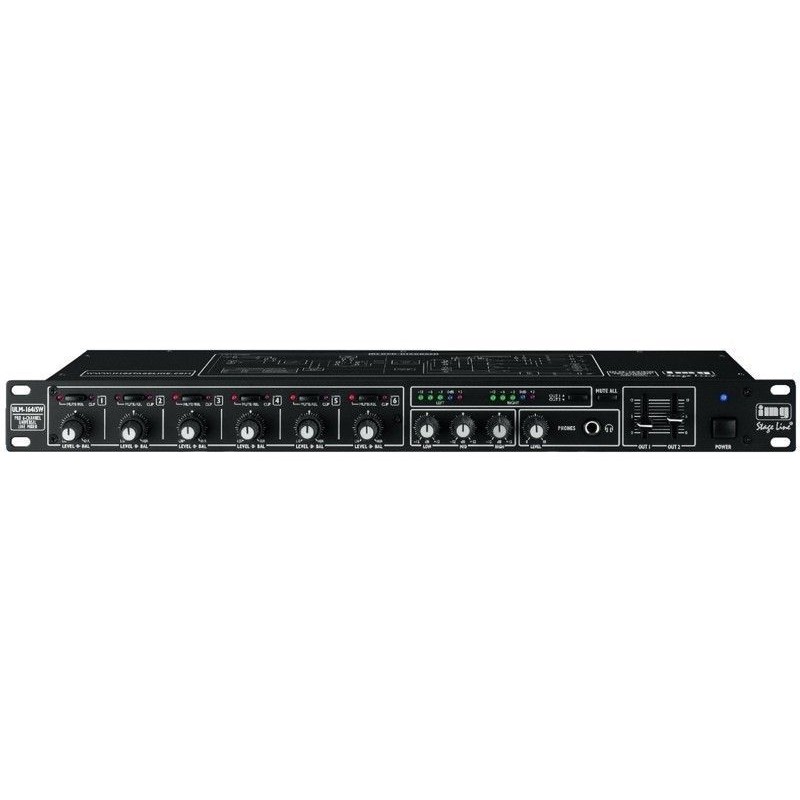

IMG-Stage Line ULM -164 6-way line splitter, with 2 separate outputs rca and 6.3 mm jack

Product Discription:

Universal line Mixer, 6 channels.
6 stereo inputs/mono inputs
2 stereo outputs, independent of each other (master 1 via RCA and 6.3 mm jack), 1 mono output
3-way equalizer
LED VU meter, switchable for both outputs
Clip LED for each channel
Balance controls with centre click for the stereo input channels
Extended muting function
Adjustable headphone output
482 mm (19") rack installation, 1 RS

Technical Facts:

Line input, stereo 150 mV/50 kΩ
Line input, mono 150 mV/25 kΩ
Master output, stereo 1 V/600 Ω
Master output, mono 2 V/600 Ω
Headphones, stereo ≥ 8 Ω
Frequency range 20-20,000 Hz
THD 0.05 %
S/N ratio 69 dB, unweighted
Equalizer, bass ±12 dB/80 Hz
Equalizer, midrange ±12 dB/1 kHz
Equalizer, treble ±12 dB/10 kHz
Power supply 230 V/50 Hz/10 VA
Admiss. ambient temp. 0-40 °C
Dimensions 482x48x175 mm, 1 RS
Weight 2.3 kg
Line input, stereo 6 x RCA L/R
Line input, mono 6 x 6.3 mm jack, unbal.
Master output, stereo 2 x RCA (1 x 6.3 mm) L/R
Master output, mono 1 x 6.3 mm jack
Headphones 1 x 6.3 mm jack
