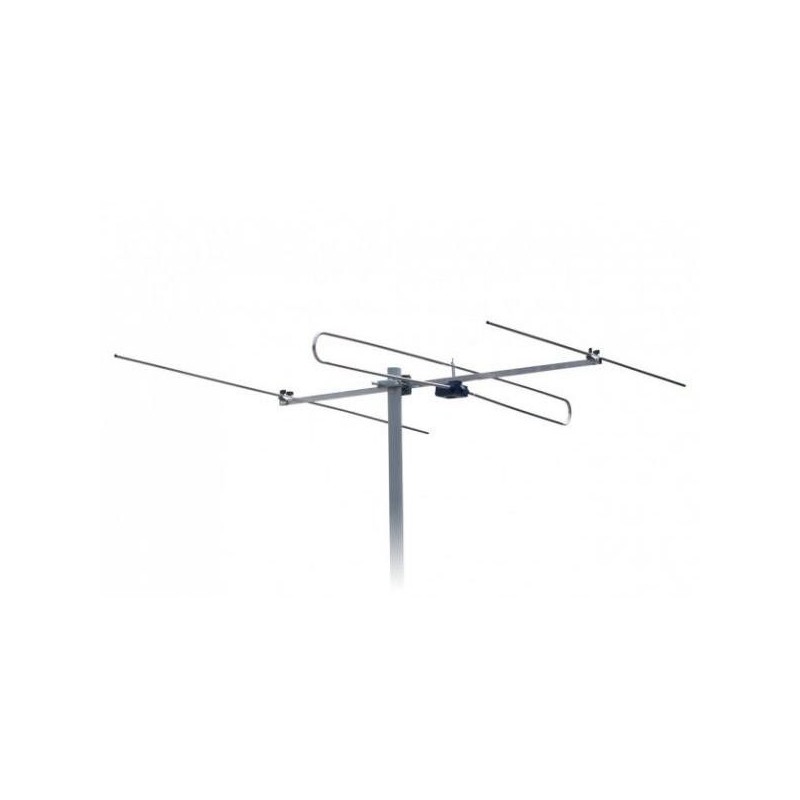

3-Element LPFM Yagi FM Antenne

    PCS 0230

          Neu

              3-Element-LPFM-YAGI-UKW-Antenne Der niedrige Preis und der No-Tune-Betrieb machen diese YAGI-Richtantenne (strahlt den größten Teil des Signals nach vorne und zurück) zu einer guten Ergänzung für Sender mit geringer Leistung

            Mehr Infos

          Achtung: Letzte verfügbare Teile!

          Sammeln Sie mit dem Kauf dieses Artikels bis zu 2 Treuepunkte. Ihr Warenkorb hat insgesamt 2 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 0,40.


                € 53,71

                Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
                Kostenloser Versand Kostenloser Versand in NL
                Volumenrabatt Volumenrabatt
                Bonus-System Bonus-System
                Sichere Zahlung Sichere Zahlung
                Geld-zurück-Garantie Geld-zurück-Garantie
                Trustpilot Trustpilot

        Mengenrabatt

          Menge Rabatt Sie sparen
          2 2% Bis zu € 2,15
          4 4% Bis zu € 8,59
          6 6% Bis zu € 19,34
          8 8% Bis zu € 34,37
          10 10% Bis zu € 53,71

        Mehr Infos 3-Element LPFM Yagi FM Antenne

          Produktbeschreibung:


          Precise manufacturing, low price and no-tune operation make this directional YAGI antenna (radiates most of the signal forward and back) a good match for low power transmitters such as PCI MAX 3000. It is recommended where only small power will be used, funds are limited and there are no measuring instruments available for tuning. It also greatly enhances signal reception, if used in a receiver.

          While the antenna itself can handle considerable power, the ferrite balun used limits power handling to a couple of watts.

          Director and reflector element can be removed leaving only the dipole element with mounting brackets.



          TechnicalFacts:




          • No. of elements: 3
          • Gain: 4,5 - 5,5 dBd
          • Front/back ratio: 10 - 15 dB
          • Beam width: H 70? / V 110?
          • Vswr: 1:1.5 min
          • Power handling: 2-4W typ.
          • Antena length: 1155 mm
          • Freq. range: 88-108 MHz (no tune)
          • Anschluss: Koaxialkabel wird direkt mit dem Balun verdrahtet
          • Gewicht: 2,5 kg
          • Vollständiges Montagematerial ist im Lieferumfang enthalten!
          • Gängige Verpackungsmaße: 1460 x 250 x 100 mm
