Brand: IMG-Stage Line

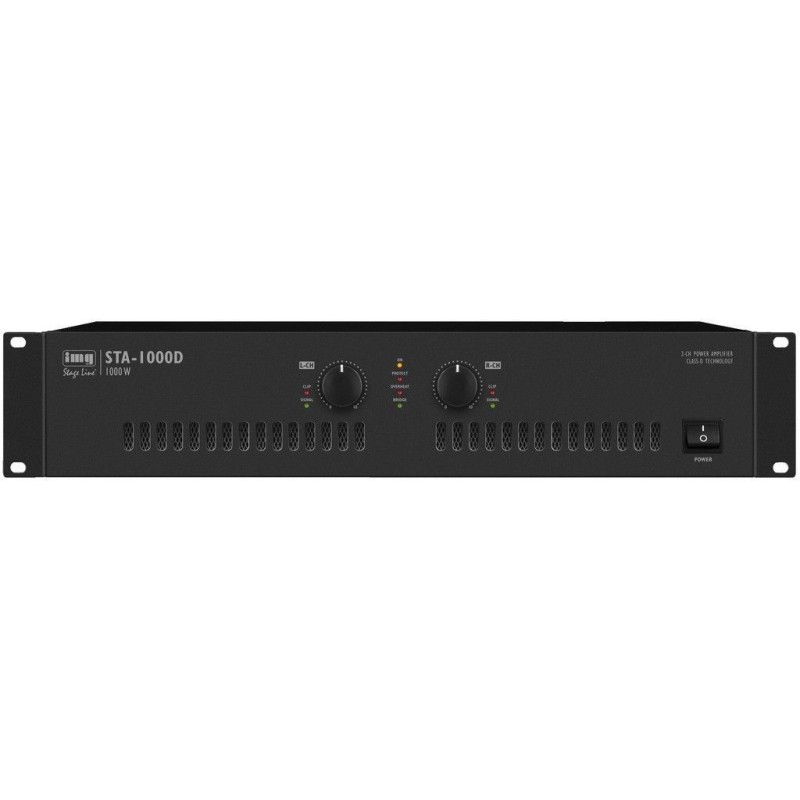

Model: STA-1000D
Condition: New
Category: Monacor versterkers
STA-1000D
Number: 25.5210
The new generation of digital PA amplifiers from IMG Stage Line impresses with a high power capability and high energy efficiency
Accessories
-
20 other products in category - Monacor versterkers
-
Dante PA Amplifier PA-900DT
-
4-Zone PA Matrix Mixing Amplifier
-
PA-4125DX/DT - 4-Zone Dante Amplifier with DSP
-
STA-400D class D PA-amplifier
-
STA-800D Professional stereo PA amplifier
-
6-Channel Stereo Audio Mixer for DJ & PA
-
Class D Stereo PA Amplifier
-
FLY-16-R 16-channel wireless PA audio receiver
-
PA-812 DAP class D PA mixing amplifier
-
PA-803DAP 30W Amplifier
-
SA-230 stereo mixing amplifier
-
STA-1506 Multichannel PA amplifier
-
STA-2200 PA Amplifier – 2x 750W, Powerful Performance
-
STA-1508 Multichannel PA amplifier
-
PA-4120D 4-channel class D PA power amplifie
-
10-Channel PA Preamplifier model PA-1414MX
-
DADC-144DT 4-Channel Dante® Transceiver
-
Stereo amplifier, 140 W SA-130DMP
-
STA-2000D Professional digital PA amplifier
-
FLY-16T 16-channel wireless PA audio transmitter
Product informationProduct discription:
The new generation of digital PA amplifiers from IMG Stage Line impresses with a high power capability and high energy efficiency. Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.Digital stereo PA Amplifier- Class D concept
- Excellent acoustic performance
- Extra wide dynamic range with very low THD
- Excellent pulse response also in the bass range
- 482 mm (19") rack installation, 2 RS
- Silent operation due to temperature-controlled fans which are only activated at temperatures above 85 °C
- Lightweight design due to compact switch-mode PSU
- Energy-saving concept due to high efficiency
- 2 level controls
- Protected against short circuit, overtemperature, DC voltage at the output and overload
- LEDs for indicating power, signal, bridge, overload (clip), overheating and protect
- Bridged operation
- Wide mains voltage range of 85-265 V˜
- NEUTRIK POWERCON and SPEAKON connections
Technical facts:
- Output power
- RMS power
- 4 Ω
- 2 x 500 WRMS
- 2 x 580 WMAX
- 8 Ω
- 2 x 280 WRMS
- 2 x 310 WMAX
- 8 Ω bridged operation
- 1 x 1,000 WRMS
- 1 x 1,060 WMAX
- 4 Ω bridged operation
- 1 x 1,000 WRMS
- 1 x 1,060 WMAX
- Max. power 1,200 WMAX
General information
- Inputs
- Frequency range 20-20,000 Hz
- S/N ratio > 119 dB, A-weighted
- Crosstalk attenuation -
- THD < 0.05 %
- Power supply 230 V˜/50 Hz/1,160 VA
- Admiss. ambient temp. 0-40 °C
- Dimensions 482x335x89 mm, 2 RS
- Weight 5.85 kg

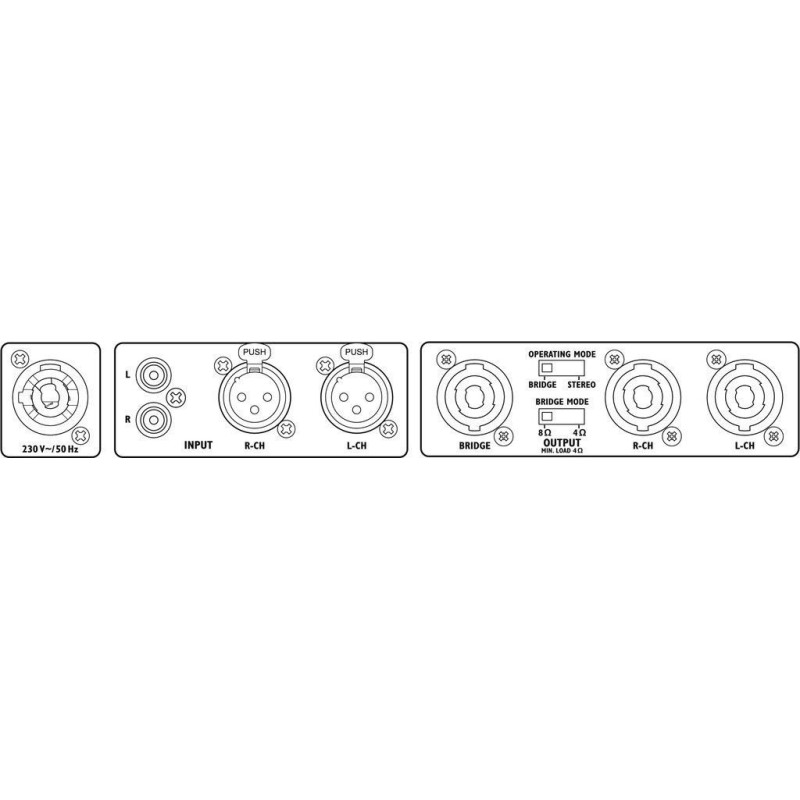

Connections
- 1 x NEUTRIK POWERCON
- 1 x 3-pole XLR L/R
- 1 x RCA L/R
- 1 x NEUTRIK SPEAKON L/R
- 1 x NEUTRIK SPEAKON bridge
-
