Brand : IMG-Stage Line

Model : TXS-2402SET

Condition : Neu

Kategorie : Microfone Wireless Sets

Name : 2

Digital Wireless 2-Kanal-PLL-Mikrofonsystem, 2,4 GHz ( lizenzfrei in der EU)

2 Mikrofonsender, 1 Empfänger, 1 Plug-In-PSU
Ein hoher Widerstand gegen Störungen durch digitale Übertragung
2 Systeme können parallel verwendet werden (entspricht 4 Mikrofonübertragungspfade)
16 Frequenzen (2,404-2,476 MHz) für jeden Kanal können am Sender
drahtlose automatische Konfiguration des Empfängers
Volumensteuerung für jeden Kanal
6,3 mm Ausgang für gemischtes Signal
Mikrofonpatronen der Supercardiodencharakteristik

Sammeln Sie mit dem Kauf dieses Artikels bis zu 16 Treuepunkte. Ihr Warenkorb hat insgesamt 16 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 3,20.

Produktseite drucken

€ 324,99

Mengenrabatt

Menge	Rabatt	Sie sparen
2	2%	Bis zu € 13,00
4	4%	Bis zu € 52,00
6	6%	Bis zu € 117,00
8	8%	Bis zu € 207,99
10	10%	Bis zu € 324,99

Menge

Rabatt auf Ihre Bestellung
Kostenloser Versand bis 1 KG
Mengenrabatt
Bonussystem
Sichere Bezahlung
Geld-zurück-Garantie
Trustpilot

Mehr Infos

Product discription:

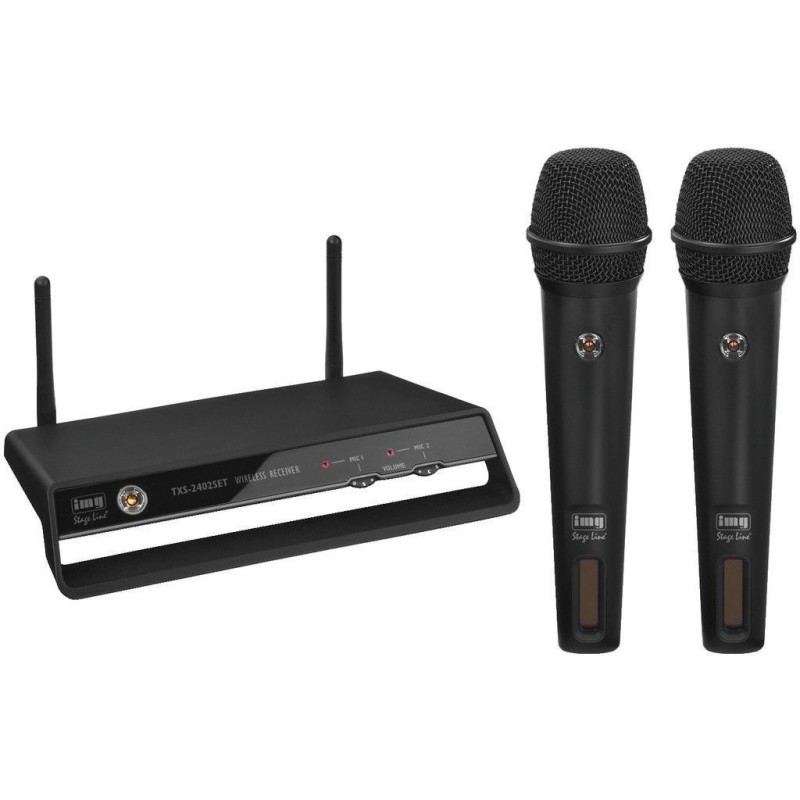

With the TXS-2402SET,
the entry into the world of digital wireless transmission will become a special sound experience. The signal transmission in the 2.4 GHz range is particularly stable and impresses by a high resistance to interference. The system manages without a compander which results in an incredibly dynamic efficiency and a voice transmission with a unique sound quality. Two systems can be used in parallel operation, thus 4 microphone transmission paths can be used simultaneously. Licence-free system. The particularly easy and convenient use of the units and appealing design make the TXS-2402SET a real digital experience for the user.

Digital wireless 2-channel PLL microphone system, 2.4 GHz

2 microphone transmitters, 1 receiver, 1 plug-in PSU
High resistance to interference due to digital transmission
2 systems can be used in parallel (corresponds to 4 microphone transmission paths)
16 frequencies (2,404-2,476 MHz) for each channel can be selected at the transmitter
Wireless auto-configuration of the receiver
Volume control for each channel
6.3 mm output for mixed signal
Microphone cartridges of supercardiod characteristic

Licence-free in the EU.

tastenwelt 06/2012
"An entry-level wireless system with a perfectly functioning technology."
+ Easy operation
+ Well-balanced hand-held transmitter

Technical facts:

Type	wireless PLL microphone system
Carrier frequency range	2,404-2,476 MHz
Audio frequency range	80-12,000 Hz
Channels	2
THD	< 10%
Dynamic range	87 dB
RF S/N ratio	-
Operating time	-
Admiss. ambient temp.	0-40 °C
Power supply	-
Dimensions	-
Total weight	-
Connections	-
Transmitting power	10 mW
Operating range	approx. 30 m (free field outdoors) approx. 20 m (indoors)
Power supply transmitter	2 x 1.5 V batt. AA size
Dimensions transmitter	Ø 54 mm x 225 mm
Width transmitter	54 mm
Height transmitter	54 mm
Depth transmitter	225 mm
Weight transmitter	120 g
Connections transmitter	-
Audio signal receiver	100 mV/600 Ω
Power supply receiver	via suppl. plug-in PSU
Dimensions receiver	220 x 45 x 150 mm
Width receiver	220 mm
Height receiver	45 mm
Depth receiver	150 mm
Weight receiver	550 g
Connections receiver	1 x 6.3 mm jack, unbal.
