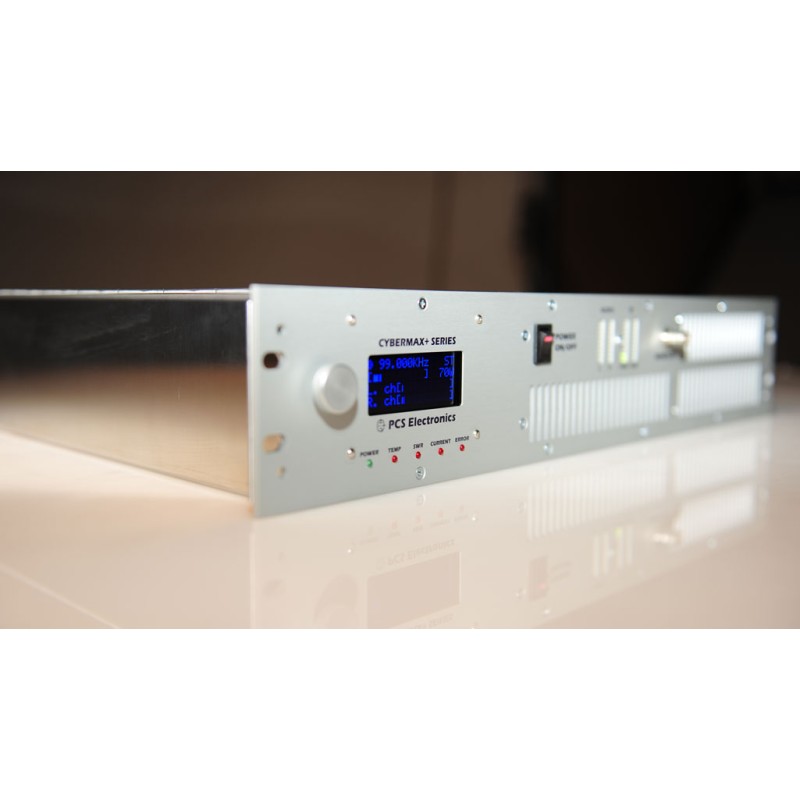

PCS-Electronics Cybermaxfm+ SE V3 300W FM -Sender mit DSP und RDS

Name: Cybermaxfm+ SE V3 300W FM -Sender mit DSP und RDS
Brand: PCS-Electronics
SKU: SE-300W
Price: 2123.54 EUR
Availability: InStock

CYBERMAXFM+ SE V3 400W FM transmitter with DSP and RDS - FM-Sender

Vergrößern

€ 2.123,54

Model

Mengenrabatt

Menge	Rabatt	Sie sparen
2	2%	Bis zu € 84,94
4	4%	Bis zu € 339,77
6	6%	Bis zu € 764,47
8	8%	Bis zu € 1.359,07
10	10%	Bis zu € 2.123,54

Menge

Delivery up to 3 weeks

Brand: PCS-Electronics

Model:

Condition: Neu

Kategorie: FM-Sender

Die neue S+ V3 -Serie bringt eine signifikant verbesserte DSP -Software, V4 -Erreger, bessere Stereo -Trennung und engere MPX -Kontrolle mit sich. Unsere neuen SE+ V3 -Modelle sind mit einem großen 4x16 LCD -Display und Vu -Messgerät ausgestattet! Die SE+ -Laite basiert auf unserem oberen Rand der Zeile FM -Erregerin (8015 -Serie), SE8000 DSP -Stereo -Encoder und verfügt über eine Reihe anderer Verbesserungen. Perfekt für den anspruchsvollen Sender

Produktseite drucken

Zubehör

Mehr Infos

Product discription:

The new SE V3 series brings significantly improved DSP software, V4 exciter, better stereo separation and tighter MPX control. Our new SE V3 models come with large 4x16 LCD display and VU meter! SE lineup is based on our top of the line FM exciter (8015 series), SE8000 DSP stereo encoder and has a number of other improvements. Perfect for demanding broadcasters.

Technical facts:

RF SECTION
- Output power: 300W depending on the model, easily adjustable via LCD display (0 to max)
- Output impedance 50 unbalanced, VSWR less than 2:1 for full output
- Output connector: N female
- Frequency range 87.5 to 108MHz
- PLL step 100KHz
- RF Spurious > -85 dBc @ - 1MHz min. out of carrier
- RF Harmonics > -60 dBc Standard
- Monitoring Led: Power on, SWR/TEMP/PLL warning
- Modulation capability: FM

AUDIO SECTION
- Audio connectors: BNC (MPX model) plus RCA and XLR (stereo version)
- USB audio input
- Audio level required: 4dBu (1.23Vrms @ 0db gain), -10dBu (0.316Vrms @ 14dB gain), adjustable in wide range
- Audio input impedance: 10Kohms resistive, balanced
- Pre-emphasis Flat, 50 or 75usec
- Harmonic distortion ( THD ) <0.1%
- Stereo separation: >65dB
- Mode: Stereo/Mono, adjustable via LCD display or remotely with PC
- Frequency amplitude: 0.5dB, 30Hz - 15kHz

GENERAL
- AC mains power: 110-240V 50/60Hz universal, works everywhere on this planet
- Ambient temperature: -5° to 45°C
- External dimensions 300W/400W ( W x D x H ) 19" x depth (170mm) x height 2HE (88mm)
- External dimensions 600W, 800W ( W x D x H ) 19" x depth (170mm) x height 2HE (88mm)
- Physical weight 6Kg (200-300), 8Kg (600W), 9Kg (800W)
- Volumetric weight up to 20Kg

Note: SE transmitters are available in 2 versions.
- With MPX input (from STL receiver or external DSP processor for example)
- Stereo DSP/RDS version with DSP stereo encoder plus RDS

Model name	DSP processor	RDS processor	XLR inputs	Full unit name
SE V3 MPX	No	No	No, just BNC for MPX	CyberMaxFM SE V3 MPX
SE V3 STEREO RDS	Yes	Yes	Yes	CyberMaxFM SE V3 STEREO DSP RDS
