TEM 1000 W FM -Sender in 3 Einheit 19 -Zoll -Rack MPX -Eingang

Neu

    TEM 1000 W FM Transmitter in 3 unit 19inch rack MPX input

    Einführung

    Dieser 1 kW-Sender, der im 87,5 ÷ 108 MHz-Band betrieben wird, verwendet 1x1250W RF-Modulverstärker: < /span>
    es bedeutet 80% Effizienz dank der 6. Generation LD-MOS Gerät.

    Sammeln Sie mit dem Kauf dieses Artikels bis zu 313 Treuepunkte. Ihr Warenkorb hat insgesamt 313 Treuepunkte die umgewandelt werden können in einen Gutschein im Wert von € 62,60.


    € 4.169,41

    GSM

    • GSM Remote Control

    • No GSM

    Stereo optie

    • Basis MPX Mono versie

    • Digital Stereo encoder met Digital inputs

    • Stereo encoder kaart L R

    Frequentie controle

    • Geen installatie - Automatic frequency daviation control card

    • Install - Automatic frequency daviation control card

    Audio Alarm

    • Geen installatie - Audio Alarm detector board

    • Install - Audio Alarm detector board

    RDS

    • RDS encoder

    • Zonder RDS

    Rabatt auf Ihre Bestellung Rabatt auf Ihre Bestellung
    Kostenloser Versand Kostenloser Versand in NL
    Volumenrabatt Volumenrabatt
    Bonus-System Bonus-System
    Sichere Zahlung Sichere Zahlung
    Geld-zurück-Garantie Geld-zurück-Garantie
    Trustpilot Trustpilot

    Mengenrabatt

    Menge Rabatt Sie sparen
    2 2% Bis zu € 166,78
    4 4% Bis zu € 667,11
    6 6% Bis zu € 1.500,99
    8 8% Bis zu € 2.668,42
    10 10% Bis zu € 4.169,41

    Mehr Infos TEM 1000 W FM -Sender in 3 Einheit 19 -Zoll -Rack MPX -Eingang

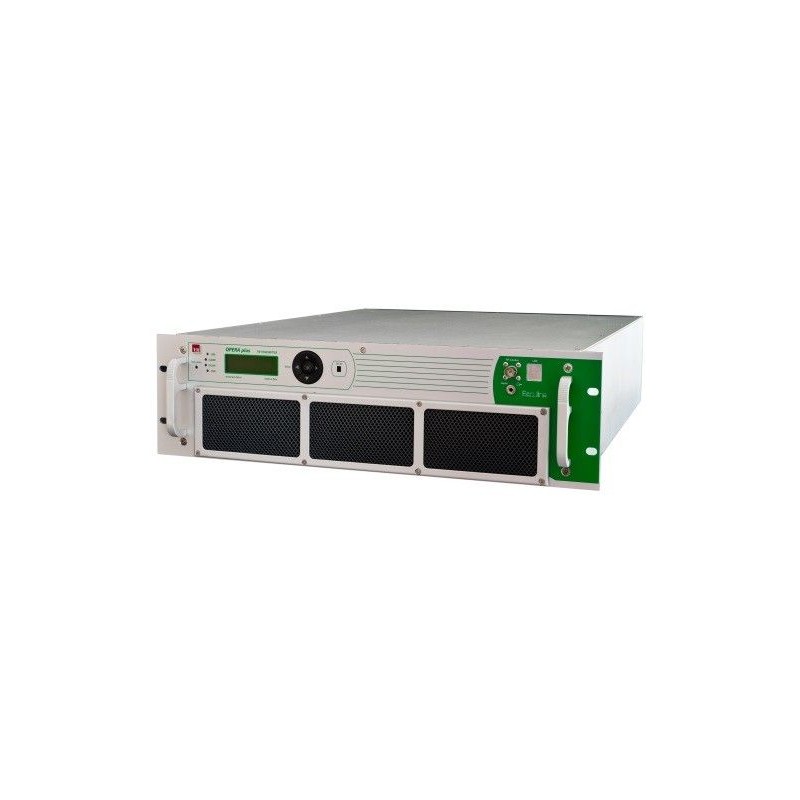

    TEM Italy 1000W FM TRANSMITTER (Mono/MPX)


    Product Discription:

    This 1 kW transmitter operating in the 87,5÷108 MHz band, uses 1x1250W RF module Amplifier:
    It means 80% efficiency thanks to 6th generation LD-MOS device.
    It means significant energy saving Operating frequency can be set up in a few seconds by the synthesizer. The equipment is fully microprocessor controlled.
    These transmitters are ideally suited for unmanned stations, in fact they do not require periodically maintenance and are fully protected.
    The installation is very fast and maintenance very easy. It can be equipped with an RDS code built-in



    • Wideband circuits amplifier with MOSFET technology
    • Built-in exciter with digital frequency synthesiser and stereo encoder built-in
    • Automatic fold-back ROS protection
    • 2 levels of temperature protection
    • 1 RF 1250W MOSFET amplifier
    • LCD display to check all operating parameters
    • PFC switching power supply for highest reliability and efficiency
    • Sealed duct cooling air with two blowers
    • Easy removable double blower
    • Harmonics filter built-in
    • Air filter easy removable and washable
    • RS232 facility to control the transmitter by “hiper terminal”
    Technical Facts:
    • Operating voltage 230VAC ±10 %
    • Cooling Forced air with one built-in blowers
    • Line power <1450VA
    • Operating temperature range -5° to 45°C
    • Storage temperature range -40° to 50°C
    • Output RF connector 7/16”
    • Monitor RF connector BNC
    • Dimensions 485x132x625 mm
    • Weight 15 kg

    See for more technical information visit product page
