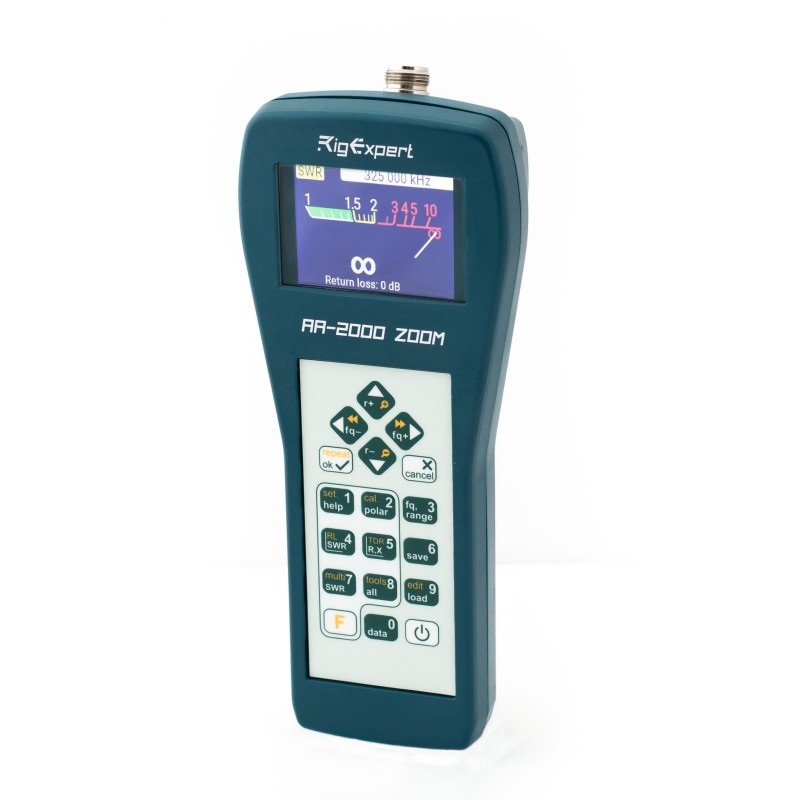

RigExpert AA-2000 Zoom

Name: AA-2000 Zoom
Brand: RigExpert
SKU: AA-2000
Price: 1289.99 EUR
Availability: InStock

RigExpert AA-2000 ZOOM - RigExpert Antennenanalysatoren

Vergrößern

€ 1.289,99

Mengenrabatt

Menge	Rabatt	Sie sparen
2	2%	Bis zu € 51,60
4	4%	Bis zu € 206,40
6	6%	Bis zu € 464,40
8	8%	Bis zu € 825,59
10	10%	Bis zu € 1.289,99

Menge

Brand: RigExpert

Model: AA-2000

Condition: Neu

Kategorie: RigExpert Antennenanalysatoren

rigExpert aa-2000 Zoom.

leistungsstarke Antenne und Kabelanalysator für bis zu 2 GHz mit großem Blanview ^® Display

Holen Sie sich alles, was Sie wollen, in einem:

Big Sunlight Lesbar Blanview® Display
Ein hoher Kontrast mit geringem Stromverbrauch
Konsistenz und Genauigkeit ohne vorherige Neukalibrierung
Mehrsprachige benutzerfreundliche Schnittstelle
eingebauter Helfer im Drücken einer Taste
Bis zu drei alkalische oder wiederaufladbare Batterien mit Spannung von 1,2 V bis 3,7 V
Bluetooth LE für die Kommunikation mit mobiler App

Produktseite drucken

Download

Rigexpert AA-2000 Datasheet

Download (240.15k)

Mehr Infos

RigExpert AA-2000 ZOOM.

Powerful antenna and cable analyzer for up to 2 GHz with Big Blanview^® Display

Get ALL you want in ONE:

BIG sunlight readable Blanview® display
High contrast with Low Power Consumption
Consistency and accuracy without prior recalibration
Multilingual user friendly interface
Built-in Helper in the push of a button
Up to three alkaline or rechargeable batteries with voltage from 1.2V to 3.7V
Bluetooth LE for communication with mobile app

RigExpert AA-2000 ZOOM. Specifications

Frequency range: 0.1 to 2000 MHz

Frequency entry: 1 kHz resolution

Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600-Ohm systems

SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes

R and X range: 0…2000, -2000…2000

Display modes: SWR, return loss, R, X, Z, L, C, Magnitude, and Phase Angle at a single frequency, SWR chart (100 points). SWR chart at fixed HAM bands by IARU Regions (100 points), Multé mode, Cable tools (Velocity factor measures, Cable length measurer, Stub tuner, Cable loss check), TDR

Optional open-short-load calibration in SWR, R, X, or Smith/polar chart graph modes.

RF output:
–    connector type: N
–    Output signal shape: square, 0.1 to 200 MHz. For higher frequencies, harmonics of the main signal are used.
–    Output power: -10 dBm (at 50 Ohm load)

Power:
–    Three 1.2V, 1800…3000 mAh, Ni-MH batteries, type AA
–    Max. 3 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used
–    When the analyzer is connected to a PC or a DC adapter with a USB socket, it takes power from these sources

Interface:
– 800*480 color BlanView display
– 6×3 keys on the water-proof keypad
– Multilingual menus and help screens ( English / German / French /Spanish / Portuguese / Italian / Japanese / Ukrainian / Russian)
– USB connection to a personal computer
– Bluetooth v. 4.2 (Single-mode, Class B)

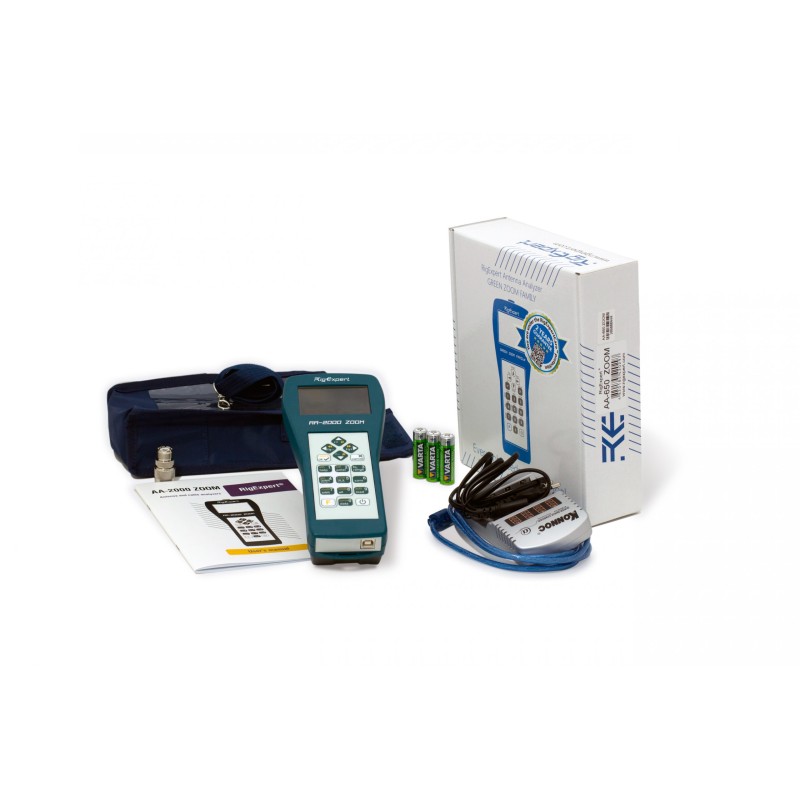

Accessories inside the box: Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter

Dimensions: 23x10x5.5 cm (9x4x2”)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 650g (23 Oz)

Warranty: 2 years RigExpert Care

GTIN-13: 4820185420310

RigExpert AA-2000 ZOOM is made in Ukraine.

Specifications are subject to change without notice.
