Merk: DMR-Electronics
Model: 07-0100-0010
Staat: Nieuw
Categorie: Coax kabels

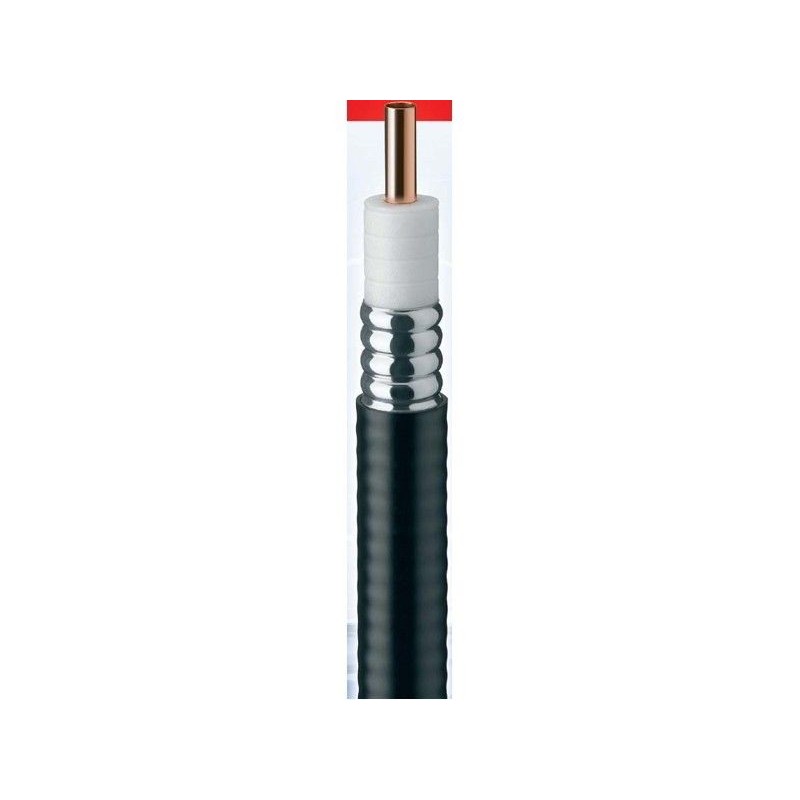

Cellflex Coax Kabel 1/2 LCF zwart is een robuuste, flexibele coaxkabel met lage demping, ontworpen voor hoogwaardige signaaloverdracht.
Deze kabel, verkocht per 10 meter, is perfect voor professionele toepassingen in telecommunicatie en RF-systemen, en biedt uitstekende prestaties in veeleisende omstandigheden.
10 andere producten in categorie - Coax kabels
-
CELF174HF Halogeen vrije double shielded Coax kabel
-
Ecoflex 15 Coax kabel
-
RG 214, 50 Ohm CABLE ( per 100m )
-
CELF 400 Low Loss Coax Kabel
-
AIRCELL 7 Coax kabel
-
Aircom Premium Coax kabel
-
RG142 U high temperature teflon coax kabel, 10 meter
-
Ecoflex 10 Plus Coax kabel
-
RG58C-U Coax kabel 50 ohm
-
Aircell 5 Coax kabel
Bekeken producten
Productinformatie
Cellflex coax kabel 1/2 LCF zwart
Low Attenuation Cellflex Coax Kabel
The low attenuation of CELLFLEX® coaxial cable results in highly efficient signal transfer
in your RF system.
Complete Shielding
The solid outer conductor of CELLFLEX® coaxial cable creates a continuous RFI/EMI shield
that minimizes system interference.
Low VSWR
Special low VSWR versions of CELLFLEX® coaxial cables contribute to low system noise.
Outstanding Intermodulation Performance
CELLFLEX® coaxial cables solid inner and outer conductors virtually eliminate intermods.
Intermodulation performance is also confirmed with state-of-the-art equipment at the RFS factory.
High Power Rating
Due to their low attenuation, outstanding heat transfer properties and temperature stabilized dielectric
materials, CELLFLEX® cable provides safe long term operating life at high transmit power levels.
Wide Range of Application
Typical areas of application are: feedlines for broadcast and terrestrial microwave antennas,
wireless cellular, PCS and ESMR base stations, cabling of antenna arrays,
and radio equipment interconnects.
Technical Facts:
| Structure | |||
| Inner Conductor: | Copper-Clad Aluminum Wire | [ mm (in) ] | 3.56 (0.14) |
| Dielectric: | Foam Polyethylene | [ mm (in) ] | 9.3 (0.366) |
| Outer Conductor: | Corrugated Copper | [ mm (in) ] | 12.3 (0.48) |
| Jacket: | Polyethylene, PE | [ mm (in) ] | 13.75 (0.54) |
| Mechanical Properties | |||
| Weight, approximately | [ kg/m (lb/ft) ] | 0.17 (0.11) | |
| Minimum bending radius, single bending | [ mm (in) ] | ||
| Minimum bending radius, repeated bending | [ mm (in) ] | 32 (1.3) | |
| Bending moment | [ Nm (lb-ft) ] | 1.8 (1.33) | |
| Max. tensile force | [ N (lb) ] | 650 (146) | |
| Recommended / maximum clamp spacing | [ m (ft) ] | 0.30 / 0.30 (1.00 / 1.00) | |
| Electrical Properties | |||
| Characteristic impedance | [ Ω ] | 50 +/- 1 | |
| Relative propagation velocity | [ % ] | 77 | |
| Capacitance | [ pF/m (pF/ft) ] | 86.0 (26.0) | |
| Inductance | [ µH/m (µH/ft) ] | 0.215 (0.066) | |
| Max. operating frequency | [ GHz ] | 10.6 | |
| Jacket spark test RMS | [ V ] | 5000 | |
| Peak power rating | [ kW ] | 24.0 | |
| RF Peak voltage rating | [ V ] | 1550 | |
| DC-resistance inner conductor | [ Ω/km (Ω/1000ft) ] | 2.9 (0.88) | |
| DC-resistance outer conductor | [ Ω/km (Ω/1000ft) ] | 4.5 (1.37) | |
| Recommended Temperature Range | |||
| Storage temperature | [ °C (°F) ] | -70 to +85 (-94 to +185) | |
| Installation temperature | [ °C (°F) ] | -40 to +60 (-40 to +140) | |
| Operation temperature | [ °C (°F) ] | -50 to +85 (-58 to +185) | |
**note: het aantal welke u selecteert is gelijk aan x 10 meter, ( aantal 2 = 20 meter, aantal 5 = 50 meter).
U ontvangt de volledige lengte aan één stuk.
