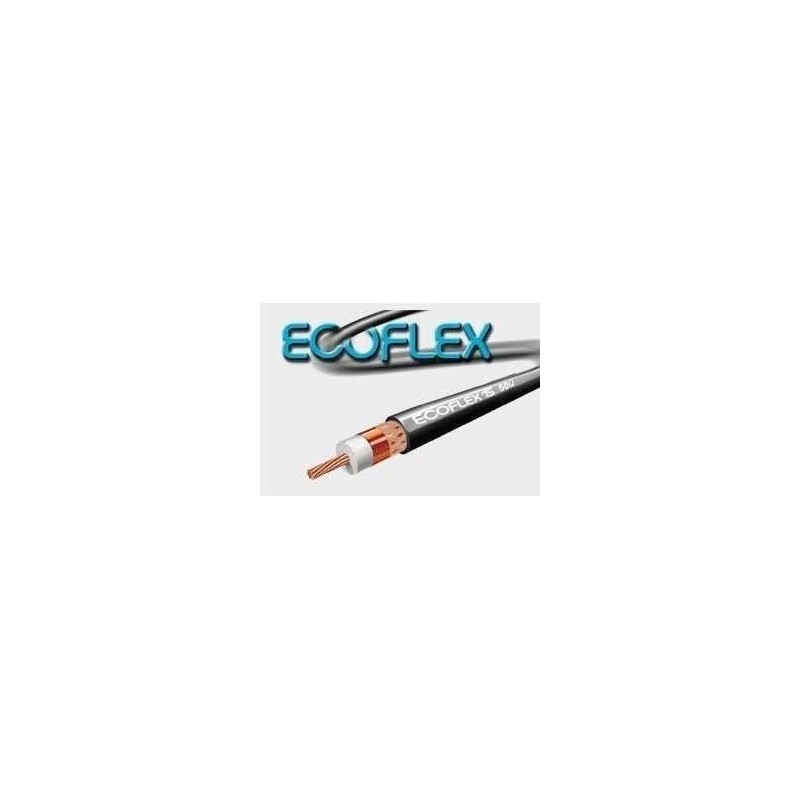

ECOFLEX 15 Coax kabel

          Nieuw

              ECOFLEX 15 Coax kabel, ECOFLEX 15 is the right choice when a low loss, highly flexible microwave rated cable is required. It?s economical price makes ECOFLEX 15 the clear leader for today?s demanding applications

            Meer details

          Bij het kopen van dit product krijgt u in totaal 75 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 75 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 15,00.


                € 425,61

                    Coax lengte

                      • Coax kabel 25 meter
                      • Coax kabel 50 meter
                      • Coax kabel 100 meter

                    Optie

                      • Coax only
                      • Install 2x PL259 (SO239 male)
                      • Install 2xN male connector
                      • Install N male BNC male
                      • Install N male PL259 (SO239 male)

                  Rabatt auf Ihre Bestellung   Korting op je Bestelling
                  Gratis verzenden Gratis verzenden tot 10 KG
                  Volume korting Volume korting
                  Bonus systeem Bonus systeem
                  Veilig betalen Veilig betalen
                  Niet goed geld terug Niet goed geld terug
                  QShops certificaat QShops certificaat
                  Trustpilot Trustpilot

          Volumekorting

            Aantal Korting U bespaart
            2 2% Tot € 17,02
            4 4% Tot € 68,10
            6 6% Tot € 153,22
            8 8% Tot € 272,39
            10 10% Tot € 425,61

          Meer informatie ECOFLEX 15 Coax kabel

            ECOFLEX 15 Coax kabel


            ECOFLEX 15 was designed to meet the demands of the RF and Telecommunications industries for a low loss, highly flexible, affordable coaxial cable. An EMI screening immunity of > 90 dB at 1.0 GHz is achieved through the use of double shielding, which consists of overlapped copper foil and an additional copperbraid. The copperfoil has an applied PE coating which insures that EMI immunity is not compromised by bending or flexing the cable.


            ECOFLEX 15 is the right choice when a low loss, highly flexible microwave rated cable is required. It?s economical price makes ECOFLEX 15 the clear leader for today?s demanding applications.

            Loss in db per 100 m
            Frequency ECOFLEX 15
            5 MHz 0.60
            10 MHz 0.86
            50 MHz 1.96
            100 MHz 2.81
            144 MHz 3.40
            200 MHz 4.05
            300 MHz 5.0
            400 MHz 5.9
            432 MHz 6.1
            500 MHz 6.7
            1000 MHz 9.8
            1296 MHz 11.4
            1500 MHz 12.4
            2000 MHz 14.7
            2320 MHz 16.0
            2400 MHz 16.3
            3000 MHz 18.7
            4000 MHz 22.3
            5000 MHz 25.7
            6000 MHz 28.8
            = amateur radio band


            Technical Data Ecoflex 15
            Impedance 50 Ωs
            Centre conductor stranded copper 7 x 1.55 mm
            Dielectric PE-Compound
            Outer conductor 1 PE-coated copperfoil, coverage 100%
            Outer conductor 2 copper braid, coverage 72%
            Diameter over sheath 14.6 mm
            Capacity per meter 77 pF
            Velocity factor 0.86
            Buig cirkel diameter zonder te forceren 214 mm
