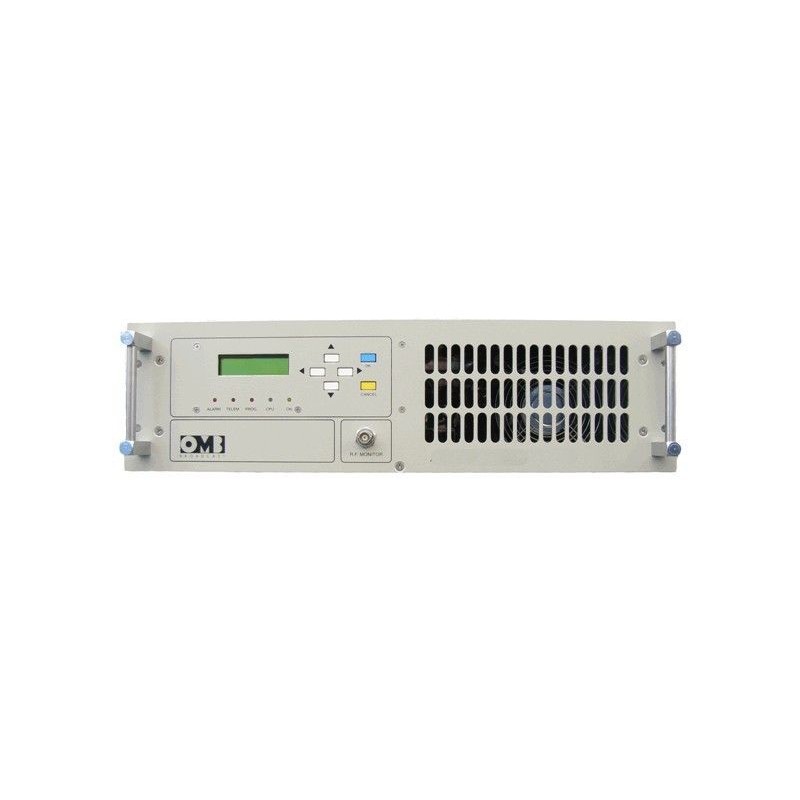

OMB Professional AM 1000W Digital FM Versterker Bekijk groter

OMB Professional AM 1000W Digital FM Versterker

AM 1000

Niet op voorraad

The AM 1000 is a high-performance FM amplifier that includes 3 amplifying modules designed with state of the art MOSFET technology

Meer details


✓ Scherpe prijs ✓ Veilig betalen
✓ Gratis verzenden ✓ Niet goed geld terug
✓ Volume korting ✓ Korting sparen
✓ Groot assortiment ✓ QShops Keurmerk

Bij het kopen - bestellen van dit product krijgt u in totaal 329 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 329 Loyaliteit punten die omgezet kunnen worden in een waardebon van EUR 65,80.


EUR 6.599,99 incl. BTW

Volumekorting

Aantal Prijs U bespaart
5 EUR 6.335,99 Tot EUR 1.320,00
10 EUR 6.005,99 Tot EUR 5.939,99

Meer informatie

 OMB Professional AM 1000W FM Amplifier


Product Discription:
The AM 1000 is a high-performance FM amplifier that includes 3 amplifying modules designed with state of the art MOSFET technology.
It includes an elliptic LPF (Low Pass Filter) with high-attenuation in the harmonic frequencies and digital telemetry output in order to get information about internal parameters of the amplifier.
The most relevant parameters can be visualized in the LCD display: Forward and Reflected power, overdrive, group 1 current, group 2 current, power supply voltage, SWR and temperature alarms.
The 3 independent amplifying modules are combined and mounted on a high-performance heat-sink, so that the transistors work in optimal thermal conditions even in really hot environments.




Technical Facts:
  • FREQUENCY RANGE 87,5 ~ 108MHz
  • OPERATING CLASS B
  • INPUT RETURN LOSS > 20 dB
  • INPUT POWER 10~15 W
  • OUTPUT POWER 1000W nominal
  • POWER GAIN 19.2dB typical
  • EfFICENCY 70% approx.
  • COOLING Forced air
  • HARMONIC -76.5dBc
  • INPUT/OUTPUT IMPEDANCE 50Ω
  • RF INPUT CONNECTOR N Female
  • RF OUTPUT CONNECTOR 7/16 DIN
  • RF MONITOR CONNECTOR BNC Female
  • AC POWER SUPPLY 115/230 VAC ?15%, <1700VA
  • PROTECTIONS Reflected power, over-consumption, temperature, power supply failure, overdrive, direct and reflected foldback.
  • REMOTE CONTROL AND TELEMETRY Digital RS-232, exciter inhibition
  • OPERATING TEMPERATURE-5 to +40?C
  • MAX. OPERATING TEMPERATURE -10 to +50?C
  • Dimensions 3RU (19?? rack)
  • WEIGHT 22 Kg
