5KW FM Zender, HIGH EFFICIENCY 5KW FM ZENDER EM 5000 HE DIGITAL

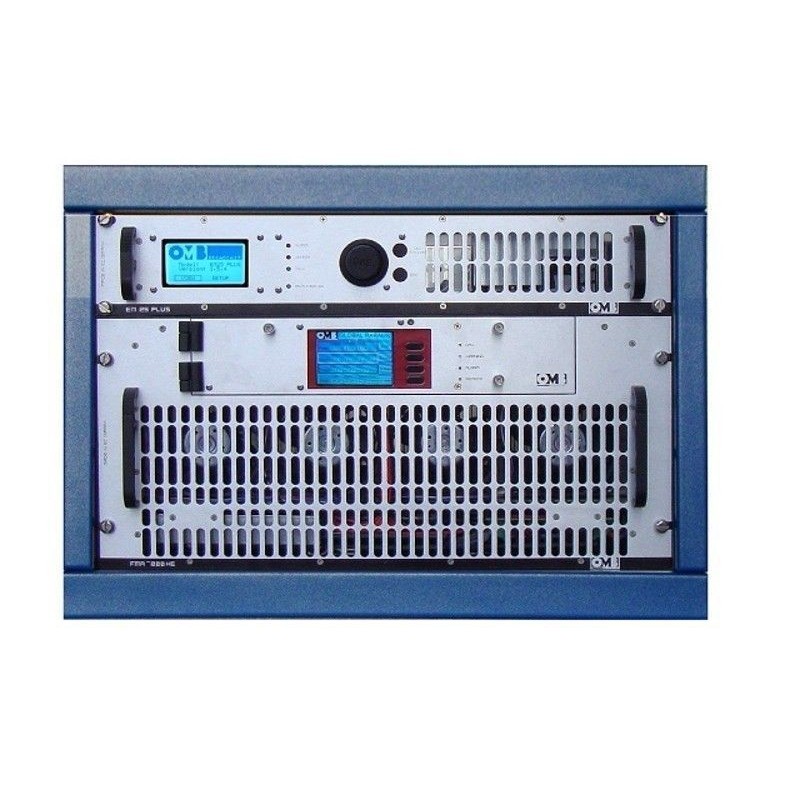

5KW FM Zender, HIGH EFFICIENCY 5KW FM ZENDER EM 5000 HE Bekijk groter

: OMB

: EM 5000-DIG

: Nieuw

: FM Zenders

: 5KW FM Zender, HIGH EFFICIENCY 5KW FM ZENDER EM 5000 HE DIGITAL

The 5KW FM transmitter, EM 5000 HE DIG PLUS, has been created by the OMB center of development for high efficiency transmitters. It consists on the high efficiency 5KW amplifier, FMA 5000 HE, with 72% efficiency and the EM 25 DIG PLUS, a 25W FM transmitter. The high efficiency 5KW amplifier has an approximate consumption of 6600VA at 230Vac, so it pays for itself in a short period of time due to its low consumption. This 5KW FM transmitter is also available in Dual Drive version

Bij het kopen van dit product krijgt u in totaal 1301 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 1301 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 260,20.


€ 26.039,99

AantalKortingU bespaart
2 2% Tot € 1.041,60
4 4% Tot € 4.166,40
6 6% Tot € 9.374,40
8 8% Tot € 16.665,59
10 10% Tot € 26.039,99

Let op: laatste item(s) op voorraad!

  • Korting op je Bestelling Korting op je Bestelling
  • Gratis verzenden Gratis verzenden tot 1 KG
  • Volume korting Volume korting
  • Bonus systeem Bonus systeem
  • Veilig betalen Veilig betalen
  • Niet goed geld terug Niet goed geld terug
  • Trustpilot Trustpilot
Productinformatie
Product Discription:

MAIN ADVANTAGES OF THE EM 5000 HE DIG PLUS FM TRANSMITTER MANUFACTURED BY OMB:

  •  AC Efficiency: 72% (typical value). RF Efficiency RF: 84% (typical value)
  • 6 amplifying modules of 1000W with MOSFET technology
  • 3 independent switching power supplies connected in parallel so if there is a failure in any of them the equipment maintains its operation
  • TFT screen and touch keyboard for the control and visualization of operational parameters.
  • Memory registration of events
  • Control of the speed of cooling fans depending on the temperature at the power modules for optimizing power consumption and decreasing acoustic contamination
  • Advanced protection against load mismatches without interrupting the transmission and ultra-fast protection in case of excessive reflected power and input power
  • Analog telemetry, digital RS232 remote control and telemetry, remote control by opened/closed contacts
  • Low pass filter, EMI filters and internal single-phase transient suppressor
  • Automatic power reduction at night if the amplifier is combined with the EM 25 DIG PLUS
  • Automatic power reduction in case of high temperature, the equipment returns automatically to its rated power value when the temperature reaches back an average value
  • Automatic power reduction in case of failure of one of the power supplies and in case of excessive reflected power.
  • Automatic voltage control for efficiency optimization
GENERAL CHARACTERISTICS



AMPLIFIER FMA 5000 HE
FREQUENCY RANGE87.5-108MHz
INPUT RETURN LOSS-20dB
INPUT POWER<25W
OUTPUT POWER5KW nominal, manual and automatic adjustable
POWER GAIN>21.3dB minimum
TOTAL EFFICIENCY>73% typical
RF EFFICIENCY84% typical
COOLINGForced air, speed control of fans
HARMONICS LEVEL<-82dBc
INPUT/OUTPUT IMPEDANCE50Ω
RF INPUT CONNECTORN(F)
RF OUTPUT CONNECTOREIA 7/8" or EIA 1+5/8" (under request)
RF MONITOR CONNECTORBNC(F)
POWER SUPPLY230VAC single phase, 230-380VAC three phase
CONSUMPTION6600VA (@5000W output power)
PROTECTIONSReflected power, forward power, overdrive, and overcurrent in power modules. Smart temperature protection. Ultra-fast protection against reflected and input power. Real time registration of events. Exciter’s inhibition
TELEMETRY AND REMOTE CONTROLAnalog telemetry (direct and reflected power measurements). Digital telemetry and remote control RS232. Remote control by opened/closed contacts
OPERATION TEMPERATURE-5 to +40°C
WEIGHT55Kg approx. (without rack)
DIMENSIONS5 standard rack units of 19" (height), 850mm (depth)



EXCITER EM 25 DIG PLUS
FREQUENCY RANGE87.5-108MHz
FM MODULATION75KHz (adjustable) peak deviation. Mono 180kF3E and Stereo 256kF3E
AUDIO/MPX INPUT LEVEL-3.5 @ +12.5dBm @ 75KHz deviation
AUDIO INPUT CONNECTORSXLR(F)
AUXILIARY CHANNEL (RDS/SCA) INPUT LEVEL7.5KHz deviation: -12.5 to 3.5dBm and 2KHz deviation: -24 to -8dBm
AUX. CHANNEL INPUT IMPEDANCE10kOhm
MODULATION DISTORTION7.5Khz deviation: <0.05%, 0.02% typical; 2KHz deviation: <0.2%, 0.05% typical
S/N MONO RATIO30 to 20000Hz: >76dB, 86dB typical, CCIR: >75dB, 81dB typical



Technical specifications:



S/N STEREO RATIO30 to 20000Hz: >72dB, 77dB typical, CCIR: >68dB, 72dB typical
AUDIO CHANNELS BANDWIDTH30 to 15000Hz ±0.1dB
PRE-EMPHASIS TIME CONSTANTSelectable, 25/50/75 microseconds
RF NOMINAL OUTPUT POWER25W
TUNING STEPS OF TRANSMITTER10/100KHz
ALC OUTPUT POWER STABILITY±3%
SPURIOUS AND HARMONIC EMISSIONS<80dBc
RF OUTPUT IMPEDANCE50Ω
RF INPUT POWER CONNECTORN
RF SAMPLING CONNECTORBNC
POWER SUPPLY110-230Vac ±15% 50-60Hz
OPERATION TEMPERATURE RANGE0 to 40°C recommended, -10 to 55°C max.
RELATIVE HUMIDITYUp to 95% without condensation
DIMENSIONS484x300x90mm, 2 standard rack units of 19"
WEIGHT7Kg
