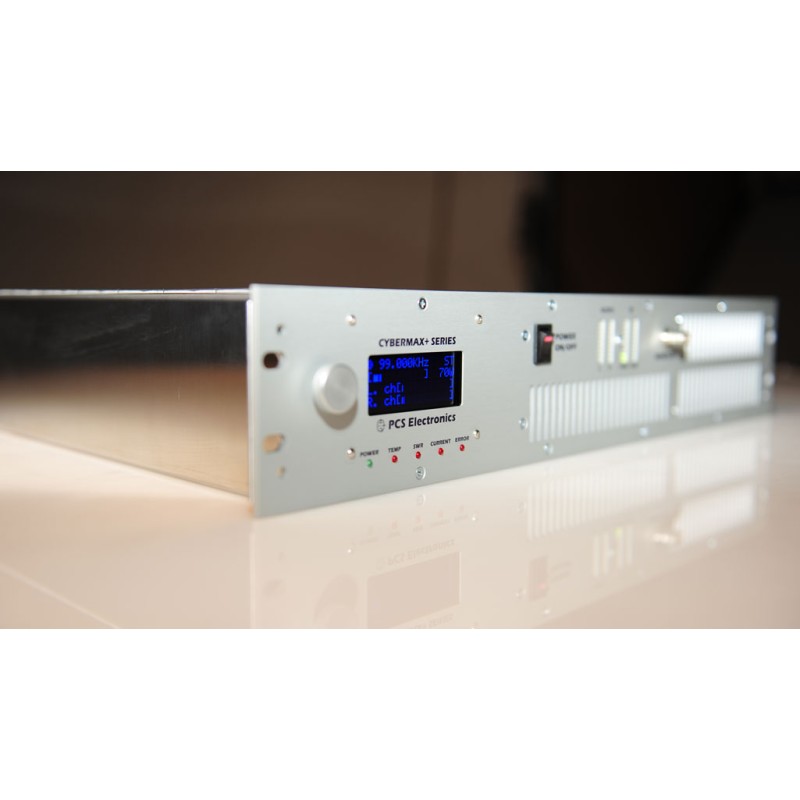

CYBERMAXFM+ SE V3 200W FM zender met DSP and RDS

Volumekorting

Aantal	Korting	U bespaart
2	2%	Tot € 58,51
4	4%	Tot € 234,05
6	6%	Tot € 526,61
8	8%	Tot € 936,19
10	10%	Tot € 1.462,80

Meer informatie Over: CYBERMAXFM+ SE V3 200W FM zender met DSP and RDS

Product discription:

---

The new SE+ V3 series brings significantly improved DSP software, V4 exciter, better stereo separation and tighter MPX control. Our new SE+ V3 models come with large 4x16 LCD display and VU meter! SE+ lineup is based on our top of the line FM exciter (8015 series), SE8000 DSP stereo encoder and has a number of other improvements. Perfect for demanding broadcasters.



Technical facts:

---

RF SECTION
- Output power: 200W/400W/600W/800W depending on the model, easily adjustable via LCD display (0 to max)
- Output impedance 50 unbalanced, VSWR less than 2:1 for full output
- Output connector: N female
- Frequency range 87.5 to 108MHz
- PLL step 100KHz
- RF Spurious > -85 dBc @ +- 1MHz min. out of carrier
- RF Harmonics > -60 dBc Standard
- Monitoring Led: Power on, SWR/TEMP/PLL warning
- Modulation capability: FM

AUDIO SECTION
- Audio connectors: BNC (MPX model) plus RCA and XLR (stereo version)
- USB audio input
- Audio level required: 4dBu (1.23Vrms @ 0db gain), -10dBu (0.316Vrms @ +14dB gain), adjustable in wide range
- Audio input impedance: 10Kohms resistive, balanced
- Pre-emphasis Flat, 50 or 75usec
- Harmonic distortion ( THD ) <0.1%
- Stereo separation: >65dB
- Mode: Stereo/Mono, adjustable via LCD display or remotely with PC
- Frequency amplitude: 0.5dB, 30Hz - 15kHz

GENERAL
- AC mains power: 110-240V 50/60Hz universal, works everywhere on this planet
- Ambient temperature: -5° to +45°C
- External dimensions 200W/400W ( W x D x H ) 19" x depth (170mm) x height 2HE (88mm)
- External dimensions 600W, 800W ( W x D x H ) 19" x depth (170mm) x height 2HE (88mm)
- Physical weight 6Kg (200-400), 8Kg (600W), 9Kg (800W)
- Volumetric weight up to 20Kg



Note: SE transmitters are available in 2 versions.
- With MPX input (from STL receiver or external DSP processor for example)
- Stereo DSP/RDS version with DSP stereo encoder plus RDS

Model name	DSP processor	RDS processor	XLR inputs	Full unit name
SE V3 MPX	No	No	No, just BNC for MPX	CyberMaxFM+ SE V3 MPX
SE V3 STEREO + RDS	Yes	Yes	Yes	CyberMaxFM+ SE V3 STEREO DSP+RDS
