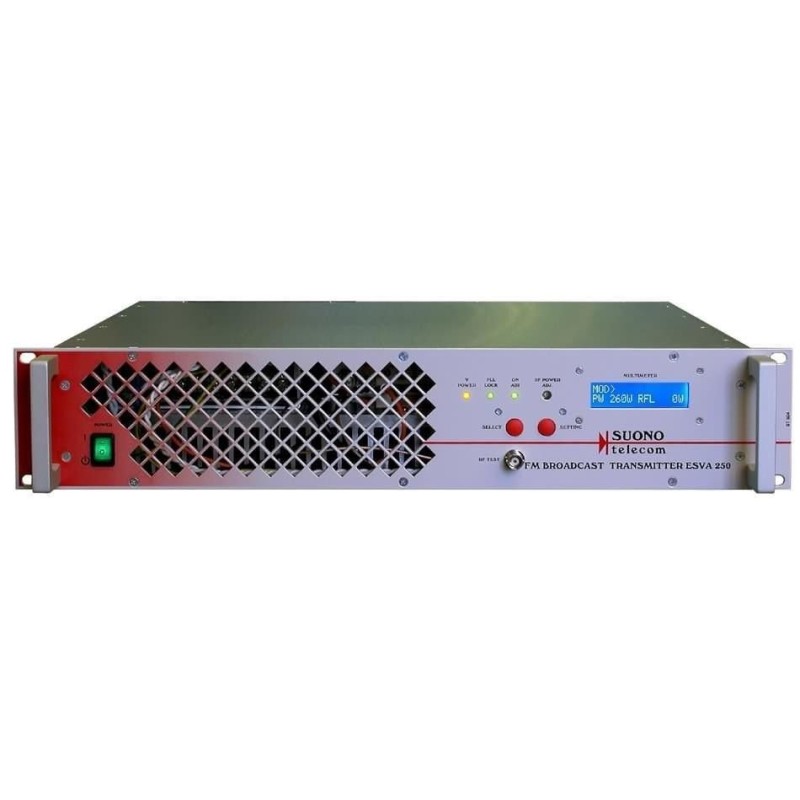

Suono ESVA 250 Watt FM Zender

Name: ESVA 250 Watt FM Zender
Brand: Suono
SKU: ESVA-250
Price: 2159.99 EUR
Availability: InStock

Bekijk groter

€ 2.159,99

RDS

Volumekorting

Aantal	Korting	U bespaart
2	2%	Tot € 86,40
4	4%	Tot € 345,60
6	6%	Tot € 777,60
8	8%	Tot € 1.382,39
10	10%	Tot € 2.159,99

Aantal

Levertijd 5 - 15 werkdagen

Merk: Suono

Model:

Staat: Nieuw

Categorie: FM Zenders

FM Zender van het merk Suono, model ESVA. Een 250W FM Zender (Mono/MPX), die is gemaakt met de modernste beschikbare technologie om maximale prestaties te leveren tegen minimale kosten.

Productpagina Afdrukken

Accessoires

Productinformatie

FM Zender van het merk Suono, model ESVA. Een 250W FM Zender (Mono/MPX), die is gemaakt met de modernste beschikbare technologie om maximale prestaties te leveren tegen minimale kosten.

Technical Facts:

FREQUENCY RANGE:87.5÷108 MHz (76÷88 MHz on request)
MODULATION: FM
EMISSION CLASS: F3E
VCO TUNING: 25 MHz
FREQUENCY STABILITY: ± 2.5 ppm
SYNTHESIZER STEP:10KHz
POWER OUTPUT: 0 ÷ 250 W (max.270W)
SPURIOUS EMISSION: < - 80 dB or better
HARMONIC EMISSION: < - 70 dB
STEREO SEPARATION: > 55 dB @ 1KHz
DISTORSION: < 0.1 % (TYP. 0.06%) @ 1KHz
BASE BAND: 30 Hz ÷ 60 KHz within 0.15 dB
UNWEIGHTED S/N RATIO: > 80 dB (30Hz ÷ 15KHz 50 uS RMS)
ASYNCRONOUS AM S/N Ratio: > 70 dB Ref. 100% AM 400Hz
SYNCRONOUS AM S/N Ratio: > 65 dB with FM @ 75KHz @400Hz
PRE-ENPHASIS: 50 OR 75 μS int. selectable
RF OUT connector: N-F 50 Ohm
MPX INPUT CONNECTOR:bnc-F
MPX INPUT IMPEDANCE: 2 KOhm
SCA INPUT CONNECTOR: 3 BNC-F
COOLING: Forced air by brushless fan
OP.TEMPERATURE RANGE: - 10 ÷ +45 °C
MAXIMUM UMIDITY: 90 %
AC SUPPLY: 100 ÷ 240 VAC - 47 ÷ 63 Hz
DIMENSION: 2 unit rack 19", 435mm depth
WEIGHT: 12Kg
