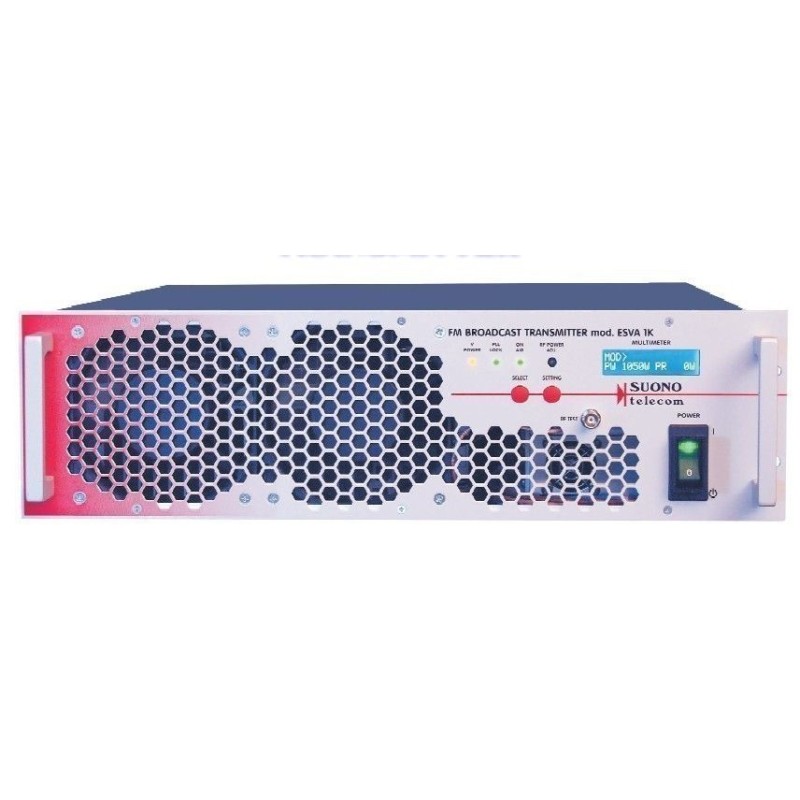

ESVA 1000 Watt 1KW FM Zender

Name: ESVA 1000 Watt 1KW FM Zender
Brand: Suono
SKU: ESVA-1KW
Price: 3939.99 EUR
Availability: InStock

Suono ESVA 1000W 1KW FM Zender - FM Zenders

Bekijk groter

€ 3.939,99

RDS

Volumekorting

Aantal	Korting	U bespaart
2	2%	Tot € 157,60
4	4%	Tot € 630,40
6	6%	Tot € 1.418,40
8	8%	Tot € 2.521,59
10	10%	Tot € 3.939,99

Aantal

Levertijd 5 - 15 werkdagen

Merk: Suono

Model:

Staat: Nieuw

Categorie: FM Zenders

FM Zender van het merk Suono, model ESVA. Een 1000W FM Zender (Mono/MPX), die is gemaakt met de modernste beschikbare technologie om maximale prestaties te leveren tegen minimale kosten.

Productpagina Afdrukken

Accessoires

Bekeken producten

CYBERMAXFM 800W FM zender met DSP and...

Productinformatie

FM Zender van het merk Suono, model ESVA. Een 1000W FM Zender (Mono/MPX), die is gemaakt met de modernste beschikbare technologie om maximale prestaties te leveren tegen minimale kosten.

Technical Facts:

FREQUENCY RANGE: 87.5 ÷ 108 MHz (76 88MHz on request)
TYPE:FULL SOLID STATE MOS-FET-WIDE BAND
MODULATION: FM
EMISSION CLASS: F3E
VCO TUNING: 25 MHz
FREQUENCY STABILITY: 2,5 ppm
SYNTHESIZER STEP: 100KHz (10KHz on request)
POWER OUTPUT: 0 ÷ 1.000 Watts
SPURIOUS EMISSION: < - 80 dB or better
HARMONIC EMISSION: < - 70 dB
STEREO SEPARATION: > 55 dB @ 1KHz
DISTORSION: < 0.1 % (TYP. 0.06%) @ 1KHz
BASE BAND: 30 Hz ÷ 60 KHz within 0.15 dB
UNWEIGHTED S/N RATIO: > 80 dB (30Hz 15KHz 50 S RMS)
ASYNCRONOUS AM S/N Ratio: > 65 dB Ref. 100% AM 400Hz
SYNCRONOUS AM S/N Ratio: > 65 dB with FM @ 75KHz @400Hz
PRE-ENPHASIS: 50 OR 75 ìS int. Selectable
RF OUT connector: 7/16 female
MPX INPUT CONNECTOR: bnc-F
MPX INPUT IMPEDANCE: 2 Kohm
SCA INPUT CONNECTOR: 3 BNC-F
PROTECTIONS: OVERLOAD, VSWR in a fold-back reducing power, TEMPERATURE
COOLING: Forced Air
OP.TEMPERATURE RANGE: 0 ÷ +50 °C
MAXIMUM UMIDITY:95 % non condensing
AC SUPPLY: 100 ÷ 240 VAC - 47 ÷ 63 Hz
DIMENSION: 3 unit rack 19", 530mm depth
WEIGHT: 18 Kg
