Suono ESVA 500 Watt Fm Zender

Name: Suono ESVA 500 Watt Fm Zender
Brand: Suono
SKU: ESVA-500
Price: 2949.99 EUR
Availability: InStock

Bekijk groter

€ 2.949,99

RDS

Inbouw RDS encoder
Zonder RDS

Volumekorting

Aantal	Korting	U bespaart
2	2%	Tot € 118,00
4	4%	Tot € 472,00
6	6%	Tot € 1.062,00
8	8%	Tot € 1.887,99
10	10%	Tot € 2.949,99

Aantal

Levertijd 5 - 15 werkdagen

Merk : Suono

Model :

Staat : Nieuw

Categorie : FM Zenders

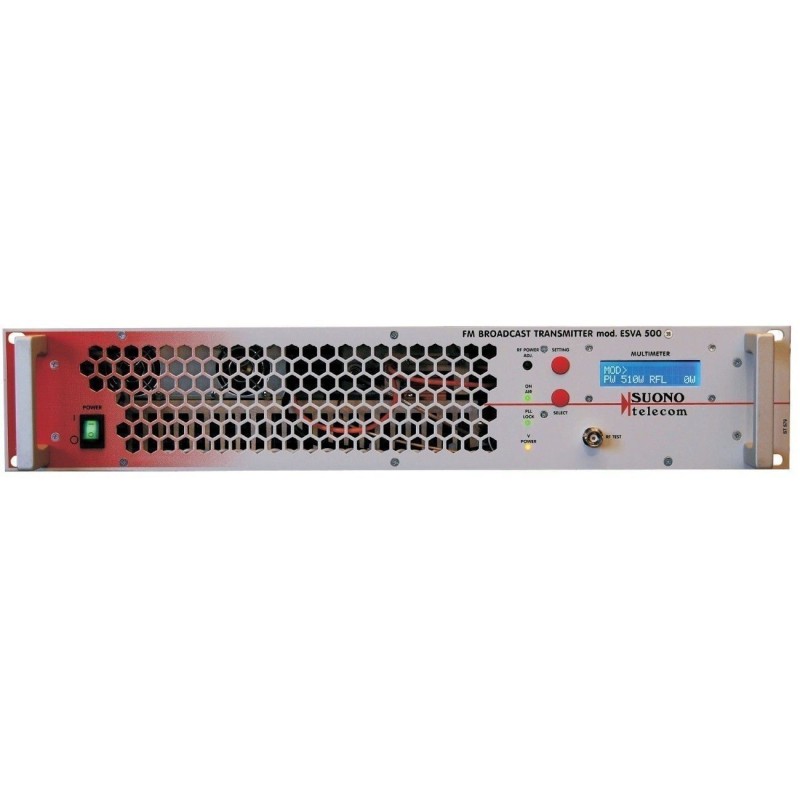

FM Zender van het merk Suono, model ESVA. Een 500W FM Zender (Mono/MPX), die is gemaakt met de modernste beschikbare technologie om maximale prestaties te leveren tegen minimale kosten.

Productpagina Afdrukken

Accessoires

Productinformatie

FM Zender van het merk Suono, model ESVA. Een 500W FM Zender (Mono/MPX), die is gemaakt met de modernste beschikbare technologie om maximale prestaties te leveren tegen minimale kosten.

Technical Facts:

FREQUENCY RANGE: 87.5 ÷ 108 MHz (76 88MHz on request)
TYPE: FULL SOLID STATE MOS-FET-WIDE BAND
MODULATION: FM
EMISSION CLASS: F3E
VCO TUNING: 25 Mhz
FREQUENCY STABILITY: 2,5 ppm
SYNTHESIZER STEP: 100KHz (10KHz on request)
POWER OUTPUT: 0 ÷ 500 Watts
SPURIOUS EMISSION: < - 80 dB or better
HARMONIC EMISSION: < - 60 dB
STEREO SEPARATION: > 55 dB @ 1KHz
DISTORSION: < 0.1 % (TYP. 0.06%) @ 1KHz
BASE BAND: 30 Hz ÷ 60 KHz within 0.15 dB
UNWEIGHTED S/N RATIO: > 80 dB (30Hz 15KHz 50 S RMS)
ASYNCRONOUS AM S/N Ratio: > 65 dB Ref. 100% AM 400Hz
SYNCRONOUS AM S/N Ratio: > 65 dB with FM @ 75KHz @400Hz
PRE-ENPHASIS: 50 OR 75 ìS int. Selectable
RF OUT connector: N female
MPX INPUT CONNECTOR: bnc-F
MPX INPUT IMPEDANCE: 2 Kohm
SCA INPUT CONNECTOR: 3 BNC-F
PROTECTIONS: OVERLOAD,
VSWR in a fold-back reducing power
TEMPERATURE
COOLING: Forced Air
OP.TEMPERATURE RANGE: 0 ÷ +50 °C
MAXIMUM UMIDITY: 90 %
AC SUPPLY: 100 ÷ 240 VAC - 47 ÷ 63 Hz
DIMENSION: 2 unit rack 19", 470mm depth
WEIGHT: 12 Kg
