GP FM antenne FM GPA 66-108

GP antenne FM 66-108 (500W) - GP FM Antennes

Bekijk groter

€ 84,99

Volumekorting

Aantal	Korting	U bespaart
2	2%	Tot € 3,40
4	4%	Tot € 13,60
6	6%	Tot € 30,60
8	8%	Tot € 54,39
10	10%	Tot € 84,99

Aantal

Direct leverbaar

Secure payments powered by Mollie

Merk: Sirio

Model: GPA 66-108

Staat: Nieuw

Categorie: GP FM Antennes

Sirio GP antenne FM GPA 66-108 (500W).

Omnidirectional, Unity gain
Made of aluminium alloy 6063 T-832

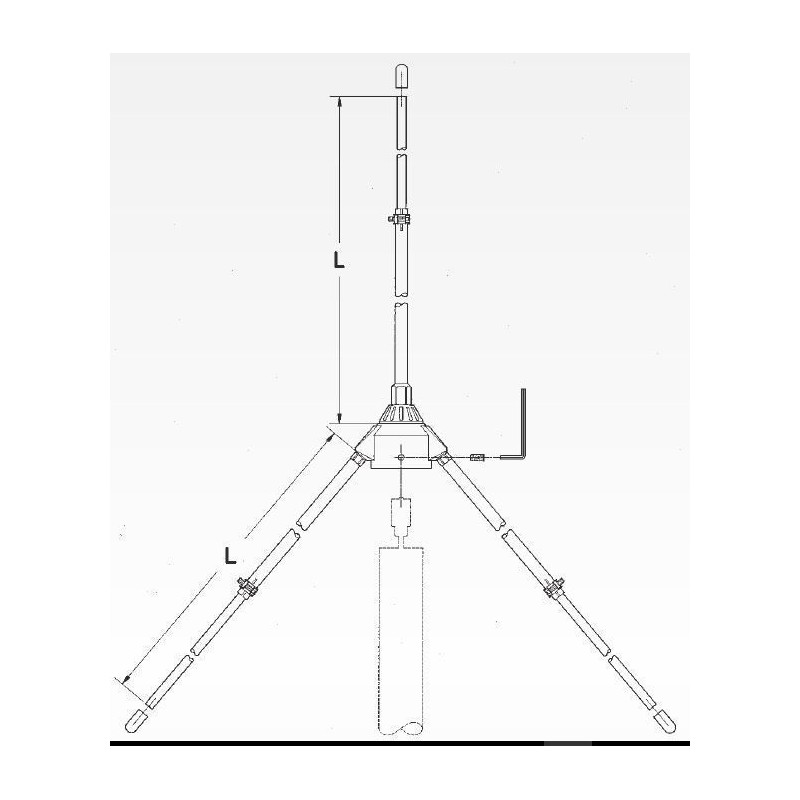

Tunable by whip length adjusting
Side mast mounting allowed by optional bracket FT-2 code 2510004.00

Productpagina Afdrukken

Accessoires

GP-87-108 LB N Breedband FM Antenne

Productinformatie

Sirio GP antenne FM GPA 66-108 (500W)

Product Discription:

Base station antenna, Mono-band

Omnidirectional, Unity gain
Made of aluminium alloy 6063 T-832
Tunable by whip length adjusting
Side mast mounting allowed by optional bracket FT-2 code 2510004.00

Technical Facts:

Base station antenna, Mono-band
Omnidirectional, Unity gain
Made of aluminium alloy 6063 T-832
Tunable by whip length adjusting
Side mast mounting allowed by optional bracket FT-2 code 2510004.00
Type: 1/4? ground plane
Frequency range: tunable from 66 to 108 MHz
Impedance: 50? unbalanced
Radiation (H-plane): 360? omnidirectional
Radiation (E-plane): beamwidth at -3 dB = 86?
Radiation angle: 0?
Polarization: vertical
Gain: 0 dBd - 2.15 dBi

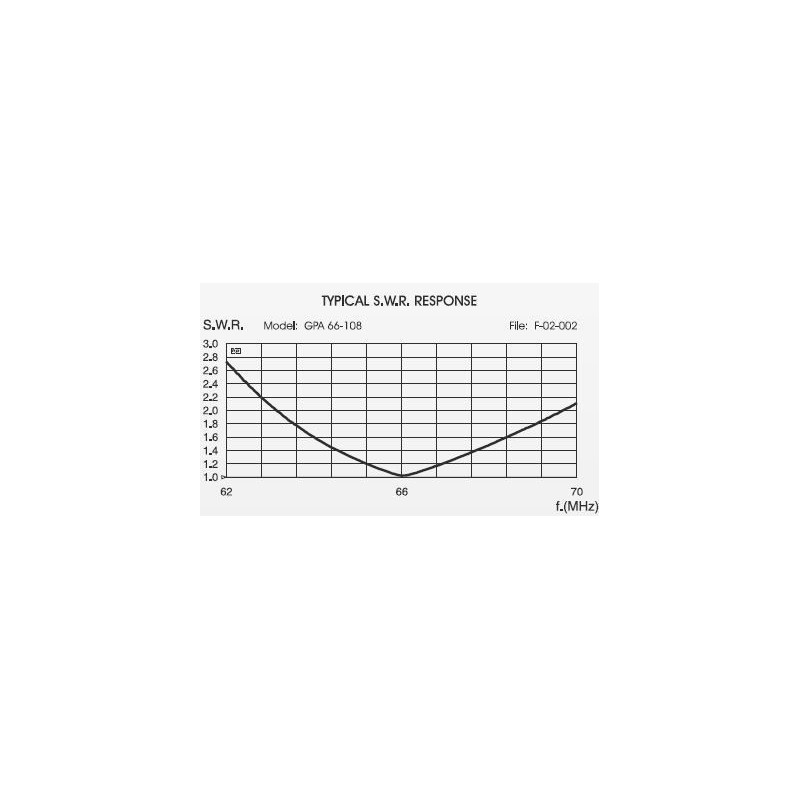

Bandwidth at V.S.W.R. 2:1: 6.5 MHz at 66 MHz
V.S.W.R. at res. freq.: ? 1.2:1 at start freq.
Max. power: 500 Watts
Feed system / position: direct / center

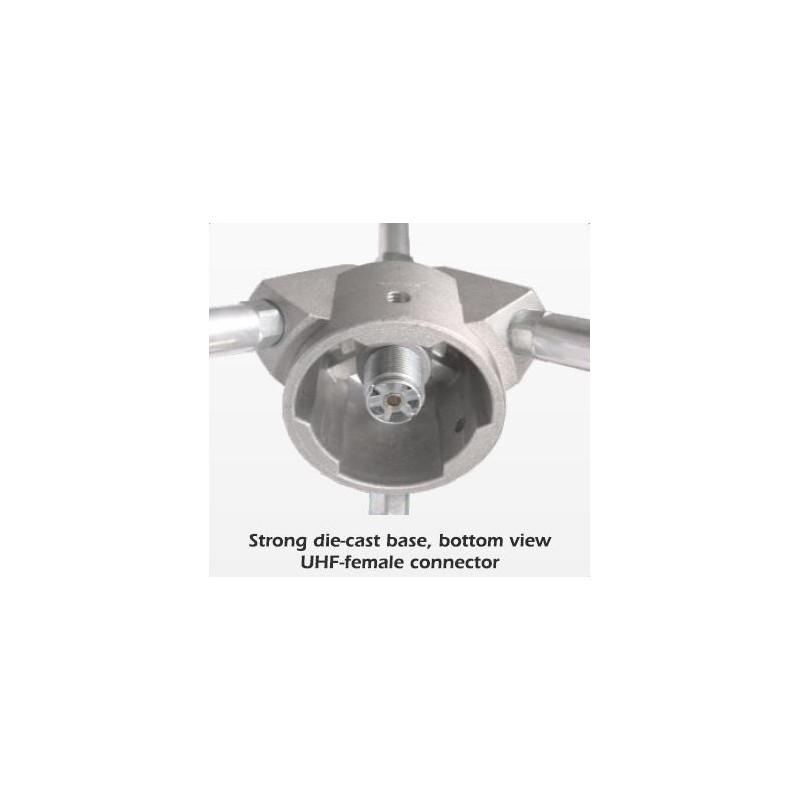

Connection: UHF-female (SO239)

Mechanical Data:

Materials: Aluminium, Chromed brass, Nylon
Wind load / resistance: 54 N at 150 Km/h / 150 Km/h
Wind surface: GPA 66-108: 0.05 m2
Height (approx.): 1930 mm
Weight (approx.): 1Kg
