IMG-Stage Line VMX-440 4-channel voice music mixer

    VMX-440

          Nieuw

          VMX-440/SW

          4-channel voice / muziek mixer 2 stereo line bronnen en 2 mono microfoon bronnen kunnen met elkaar worden gemengd zonder problemen

          Meer details

          Bij het kopen van dit product krijgt u in totaal 6 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 6 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 1,20.


                € 136,36

                Korting op je Bestelling Korting op je Bestelling
                Gratis verzenden Gratis verzenden tot 10 KG
                Volume korting Volume korting
                Bonus systeem Bonus systeem
                Veilig betalen Veilig betalen
                Niet goed geld terug Niet goed geld terug
                Trustpilot Trustpilot

        Volumekorting

          Aantal Korting U bespaart
          2 2% Tot € 5,45
          4 4% Tot € 21,82
          6 6% Tot € 49,09
          8 8% Tot € 87,27
          10 10% Tot € 136,36

        Meer informatie IMG-Stage Line VMX-440 4-channel voice music mixer

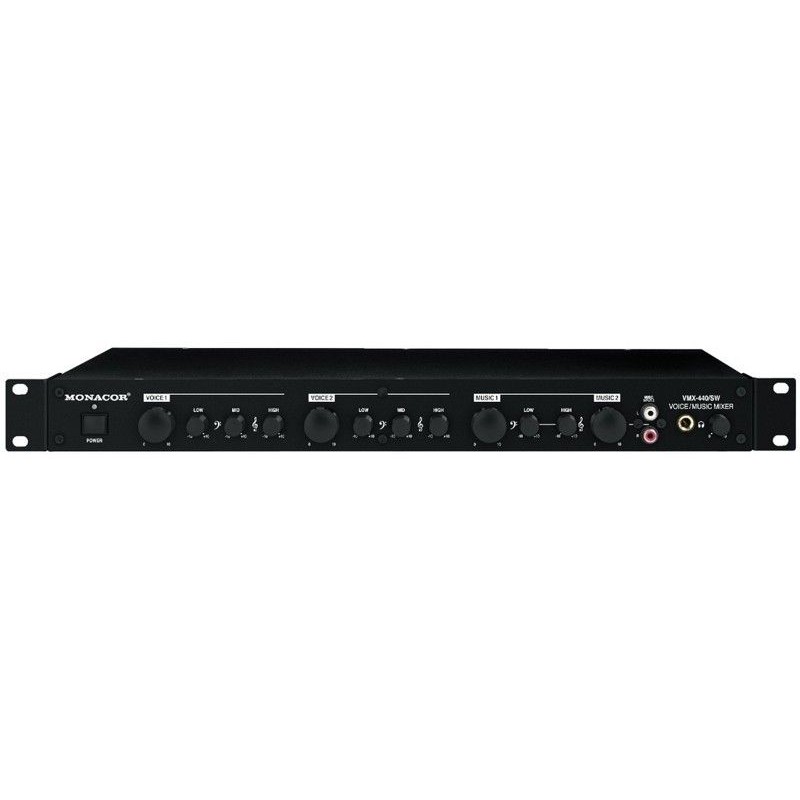

        4-channel voice/music mixer

        Mixing made easy! An easy-to-use operating concept and clearly arranged features. Two stereo line sources and two mono microphone sources can be mixed together without any problems. Each input channel features a tone control. The master output level can be preadjusted via recessed trimming potentiometers in order to protect against overload. An optional remote switch can mute the stereo master outputs.


        • 2 stereo line inputs
        • 2 balanced microphone inputs
        • Parallel stereo line input at the front panel
        • 3-way equalizer for each microphone input
        • Common 2-way tone control for the two line inputs
        • Mute via optional momentary push-button or switch
        • 2 adjustable stereo master outputs
        • Master output level can be preadjusted via trimming potentiometers
        • Adjustable headphone output
        • Stereo record output
        • 482mm (19") rack installation, 1RS, with supplied mounting brackets


        Technical Facts Mixers

        • Line input, stereo100mV/10kΩ
        •  Microphone input1mV/600Ω
        •  Master output, stereo1-3V/100Ω
        •  Record output, stereo1V/100Ω
        •  Headphones, stereo ≥32Ω, 2 x 15mW
        •  Frequency range20-20,000Hz
        •  THD 0.05%
        •  S/N ratio >60dB
        •  Equalizer, bass?12dB/30Hz
        •  Equalizer, midrange?12dB/1kHz (voice only)
        •  Equalizer, treble?12dB/12kHz
        •  Power supply 230V?/50Hz/10VA
        •  Admiss. ambient temp. 0-40 ?C
        •  Dimensions482x45x274mm, 1RS
        •  Weight 2.9kg
        •  Line input, stereo3 x RCA L/R
        •  Microphone input2 x 6.3mm jack, bal.
        •  Master output, stereo2 x RCA L/R
        •  Record output, stereo1 x RCA L/R
        •  Headphones1 x 6.3mm jack
        •  Mutescrew plug connection
