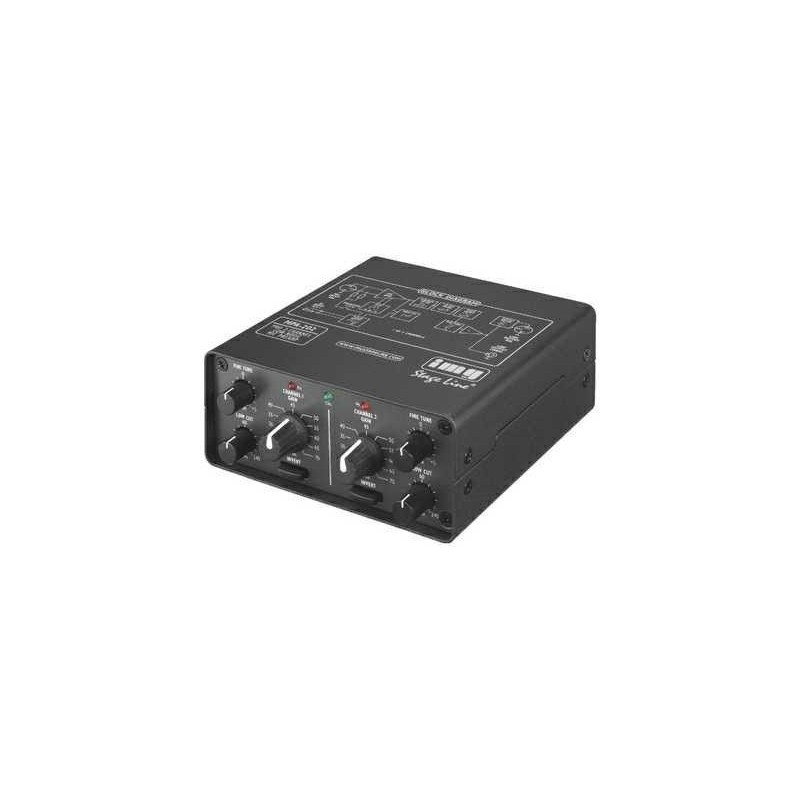

2-channel low-noise microphone preamplifier
- 2 microphone inputs, XLR, bal.
- Gain, 11 steps 20-70dB
- 2 level controls ?5dB
- LED green/red for operation/peak
- Phantom power +12V, can be switched on additionally
- Microphone phase can be switched for each channel
- Lo cut 15-240Hz, continuously adjustable
- Subsonic filter 15Hz, 18dB/oct.
- 2 line outputs, XLR bal.
- 2 line outputs, RCA unbal.
|
|
Technical Facts Amplifiers - Frequency range20-20,000Hz
- Input sensitivity 0.16-150mV, switchable
- Input impedance Mic4.4kΩ bal., 2.2kΩ unbal.
- Stereo line-
- Outputs Line, bal.1V/100Ω, 14Vmax.
- Stereo line1V/600Ω, 7Vmax.
- Stereo master- Filter, low cut15-240Hz, 6dB/oct.
- Filter, high cut- Filter, subsonic15Hz, 18dB/oct.
- Gain, mic15-75dB
- Gain, stereo line- S/N ratio, mic> 68dB (unweighted) > 87dB (weighted)
- S/N ratio, line- THD < 0.01%
- Power supply 15V?/300mA via supplied plug-in PSU 230V?/50Hz/5VA
- Dimensions116x55x135mm
|
