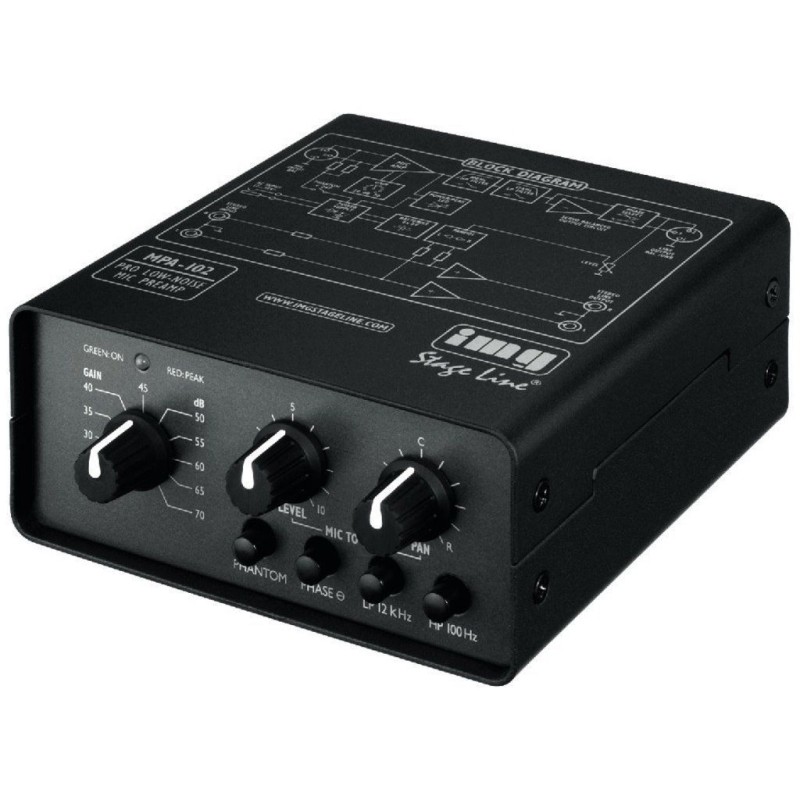

Microfoon voorversterker MPA-102 1-kanaals low-noise

IMG-Stage Line MPA-102 1-channel microfoon voorversterker - Microfoon Mixer & Voorversterker

Bekijk groter

€ 119,99

Volumekorting

Aantal	Korting	U bespaart
2	2%	Tot € 4,80
4	4%	Tot € 19,20
6	6%	Tot € 43,20
8	8%	Tot € 76,79
10	10%	Tot € 119,99

Aantal

Secure payments powered by Mollie

Merk: IMG-Stage Line

Model: MPA-102

Staat: Nieuw

Categorie: Microfoon Mixer & Voorversterker

Microfoon voorversterker MPA-102 1-kanaals low-noise , voor netvoeding of batterij.

Productpagina Afdrukken

Bekeken producten

Productinformatie

1-channel low-noise microphone preamplifier, for mains operation or battery operation.

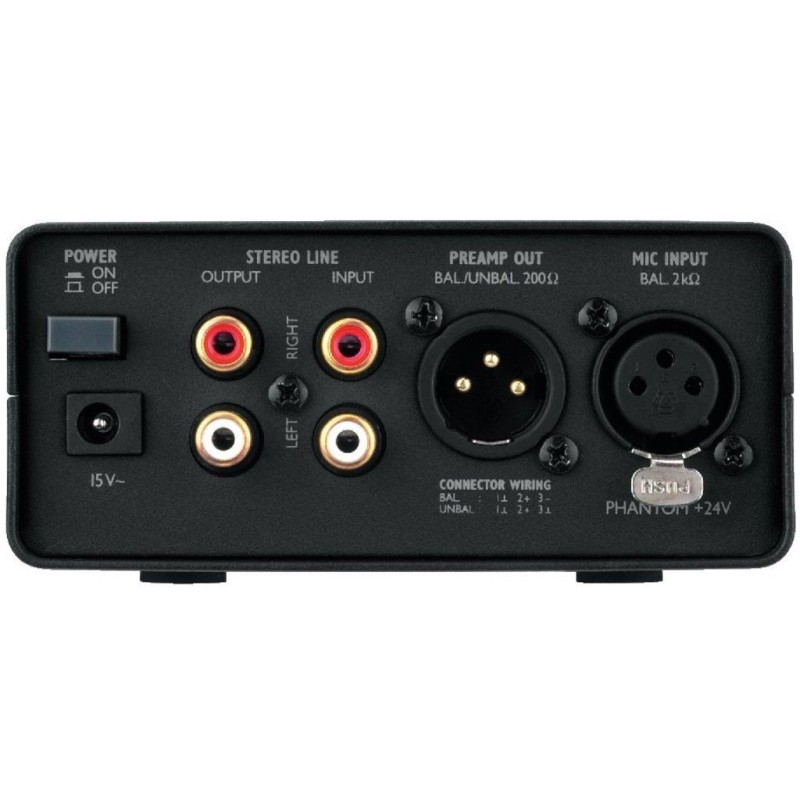

1 microphone input, xlr, bal.
Gain, 11 steps 20-70dB
LED green/red for operation/peak
Phantom power +24V, can be switched on additionally
Microphone phase can be switched
Lo cut 100Hz, hi cut 12kHz, 12dB/oct., switchable
1 preamplifier output
1 stereo line input
1 stereo line output
Level control and panorama control for mixing the microphone signal to the stereo line channel

MPA-102

Technical Facts Amplifiers

Frequency range20-20,000Hz
Input sensitivity 0.3-150mV, switchable
Input impedance
Mic2.2kΩ Stereo line10kΩ
Outputs Line, bal.1V/100Ω, 12V max.
Stereo line1V/100Ω, 6Vmax.
Stereo master-
Filter, low cut100Hz/-3dB, 12dB/oct.
Filter, high cut12kHz/-3dB, 12dB/oct.
Gain, mic20-70dB
Gain, stereo line0dB S/N ratio,
mic> 66dB (unweighted)
S/N ratio, line80dB (unweighted)
THD < 0.01%
Power supply 15V? via supplied plug-in PSU 10VA; alternatively 4 x 9V battery
Dimensions116x55x125mm
