IMG-Stage Line LMS-808 Microfoon lijn mixer- splitter

    IMG-Stage Line LMS-808 microfoon line mixer/line splitter Bekijk groter

    LMS-808

    IMG-Stage Line Microfoon lijn mixer / splitter

    Bij het kopen van dit product krijgt u in totaal 14 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 14 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 2,80.


    € 294,99

    Korting op je Bestelling Korting op je Bestelling
    Gratis verzenden Gratis verzenden tot 10 KG
    Volume korting Volume korting
    Bonus systeem Bonus systeem
    Veilig betalen Veilig betalen
    Niet goed geld terug Niet goed geld terug
    Trustpilot Trustpilot

    Volumekorting

    Aantal Korting U bespaart
    2 2% Tot € 11,80
    4 4% Tot € 47,20
    6 6% Tot € 106,20
    8 8% Tot € 188,79
    10 10% Tot € 294,99

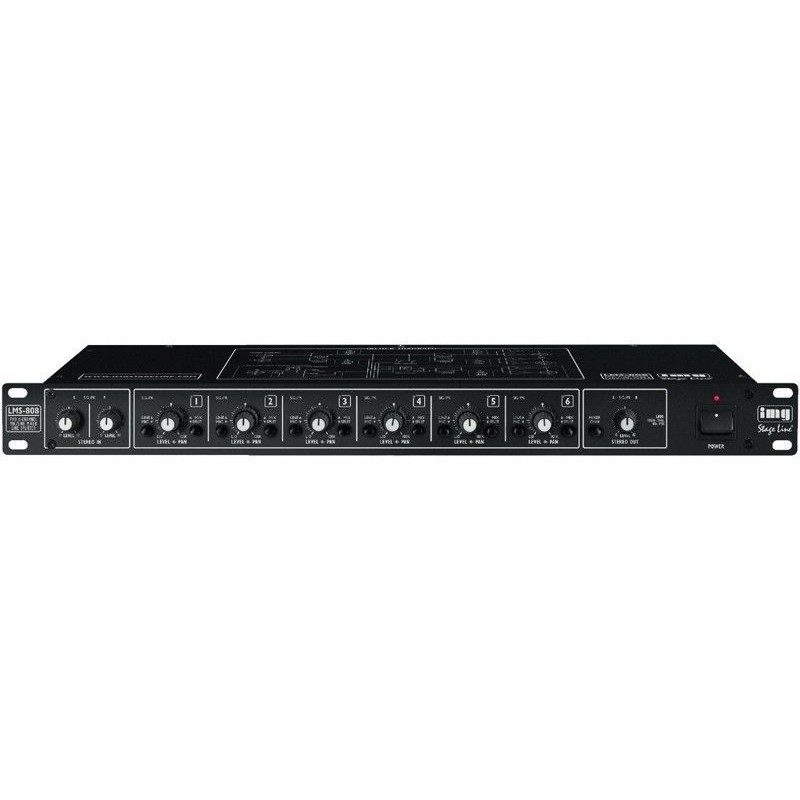

    Productinformatie IMG-Stage Line LMS-808 Microfoon lijn mixer- splitter

    IMG-Stage Line Microphone line mixer/line splitter







    Microphone line mixer/line splitter
    • Multifunctional unit with three selectable operating modes:
    • Mixer operation for mixing up to 8 mono input signals (6 x line/mic and 2 x line) to 1 stereo output
    • Line splitter operation for splitting 2 mono line inputs to 6 mono outputs
    • Level matching amplifier operation for amplifying up to 6 input signals
    • 6 mono input channels, each with switchable 12V phantom power, pan control, signal/clip LED and individual selection of the operating mode
    • 2 mono line input channels, each with level control and signal/clip LED

















    Technical Facts:
    • Line input, mono250mV/30kΩ
    • Microphone/line input1mV/6.6kΩ (mic), 100mV/40kΩ (line)
    • Line output, stereo1V/200Ω
    • Line output, mono1V/200Ω
    • Frequency range10-30,000Hz
    • THD0.02% S/N ratio81dB, weighted
    • Crosstalk-63dB
    • Power supply230V/50Hz/10VA
    • Admiss. ambient temp.0-40 °C
    • Dimensions (WxHxD)482x48x200mm, 1RS
    • Weight2.9kg Line input, mono2 x XLR, bal.
    • Microphone/line input6 x XLR, bal.
    • Line output, stereo1 x XLR L/R, bal.
    • Line output, mono6 x XLR, bal.
