Wireless Multifrequency microphone system TXS-631

Wireless Multifrequency Microphone System TXS-631 Bekijk groter

Merk: DMR-Electronics

Model:

Staat: Nieuw

Categorie: Microfoons-Draadloos-Sets

Informatie: Wireless Multifrequency microphone system TXS-631

TXS-631SET
Number: 25.3660
Multifrequency microphone system, with UHF PLL technology

Bij het kopen van dit product krijgt u in totaal 11 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 11 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 2,20.


€ 239,99

Aantal Korting U bespaart
2 2% Tot € 9,60
4 4% Tot € 38,40
6 6% Tot € 86,40
8 8% Tot € 153,59
10 10% Tot € 239,99

Secure payments powered by Mollie

Productinformatie

Multifrequency microphone system, with UHF PLL technology.





Product Discription:
Multifrequency microphone system, with UHF PLL technology.

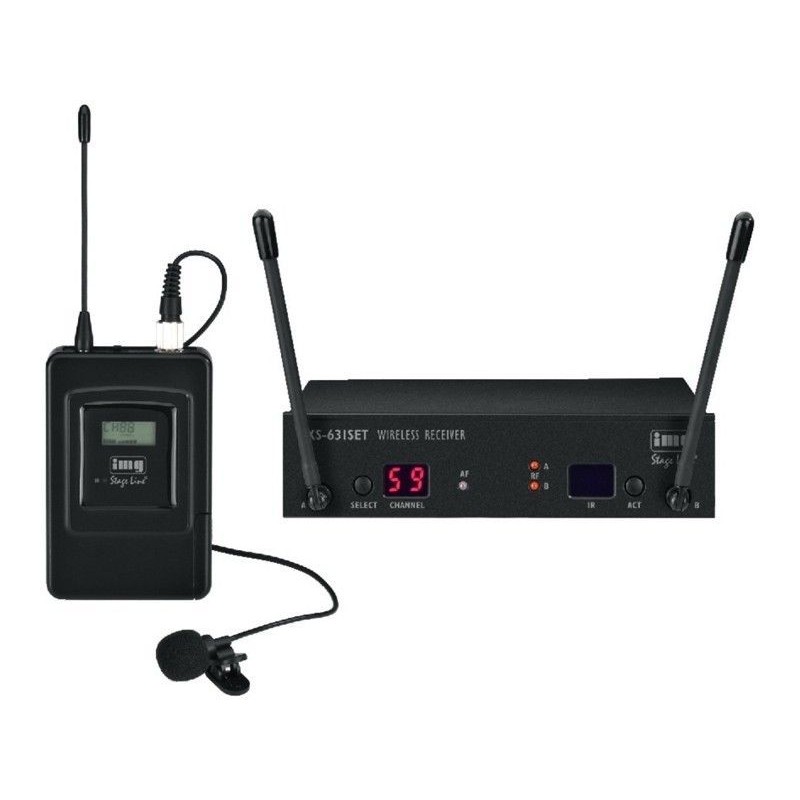

  • 1 pocket transmitter, 1 tie clip microphone, 1 receiver, 1 plug-in PSU
  • True diversity system
  • 80 selectable UHF channels (863-865MHz) or 100 selectable UHF channels (672.000-696.975MHz)
  • ACT function for transmitting the selected frequency to the pocket transmitter via infrared signal
  • Automatic scan
  • Volume and squelch controls
  • Gain can be adjusted at the pocket transmitter
  • Indication for channel, antenna A/B, ACT status and AF audio level (receiver), channel and battery status (pocket transmitter)
  • Robust metal housing (receiver)
Licence-free in the EU.







Technical Facts:
  • Carrier frequency 672.000-696.975MHz or 863-865MHz
  • Transmitting power< 25mW (EIRP) RF
  • S/N ratio105dB
  • Audio range50-18,000Hz, ±3dB
  • Dynamic range120dB THD< 0.5%
  • Audio output350mV/10kΩ (jack) 25mV/10kΩ (XLR, bal.)
  • Operating rangeapprox. 50m
  • Admiss. ambient temp.0-40 °C
  • Power supply Transmitter 2 x 1.5V batt. AA size Receiver via suppl. plug-in PSU
  • Dimensions Transmitter 62x105x25mm
  • Receiver 152x38x120mm
  • Weight Transmitter 88g Receiver 482g
  • Connections1 x 6.3mm jack, unbal. 1 x XLR, bal.
