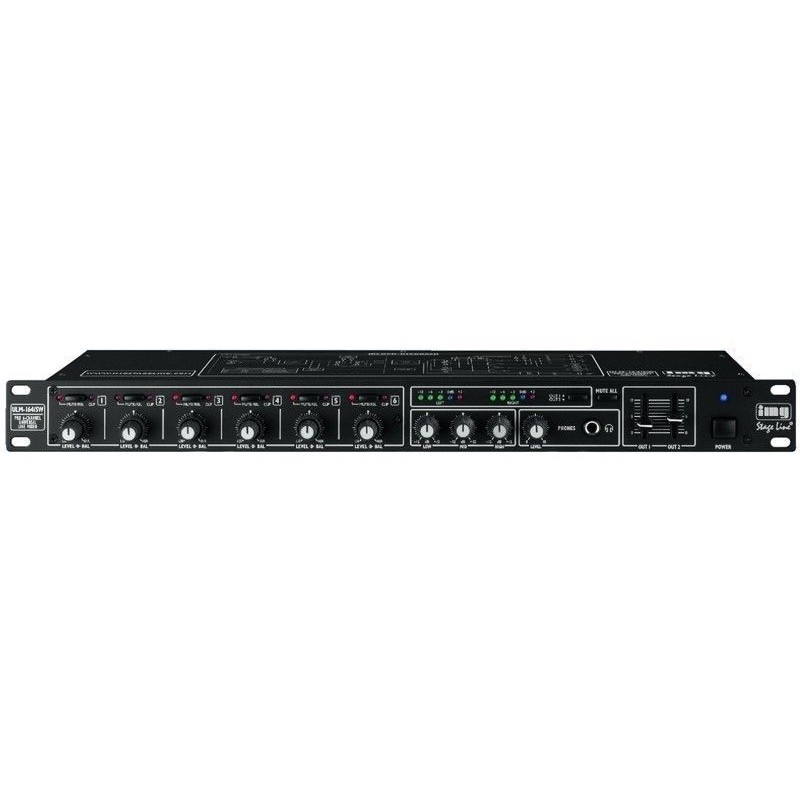

IMG-Stage Line ULM -164 6-way line splitter, with 2 separate outputs RCA and 6.3 mm jack
Product Discription:
- Universal line mixer, 6 channels.
- 6 stereo inputs/mono inputs
- 2 stereo outputs, independent of each other (master 1 via RCA and 6.3 mm jack), 1 mono output
- 3-way equalizer
- LED VU meter, switchable for both outputs
- Clip LED for each channel
- Balance controls with centre click for the stereo input channels
- Extended muting function
- Adjustable headphone output
- 482 mm (19") rack installation, 1 RS
|
Technical Facts:
Line input, stereo 150 mV/50 kΩ Line input, mono 150 mV/25 kΩ Master output, stereo 1 V/600 Ω Master output, mono 2 V/600 Ω Headphones, stereo ≥ 8 Ω Frequency range 20-20,000 Hz THD 0.05 % S/N ratio 69 dB, unweighted Equalizer, bass ±12 dB/80 Hz Equalizer, midrange ±12 dB/1 kHz Equalizer, treble ±12 dB/10 kHz Power supply 230 V/50 Hz/10 VA Admiss. ambient temp. 0-40 °C Dimensions 482x48x175 mm, 1 RS Weight 2.3 kg Line input, stereo 6 x RCA L/R Line input, mono 6 x 6.3 mm jack, unbal. Master output, stereo 2 x RCA (1 x 6.3 mm) L/R Master output, mono 1 x 6.3 mm jack Headphones 1 x 6.3 mm jack
|
