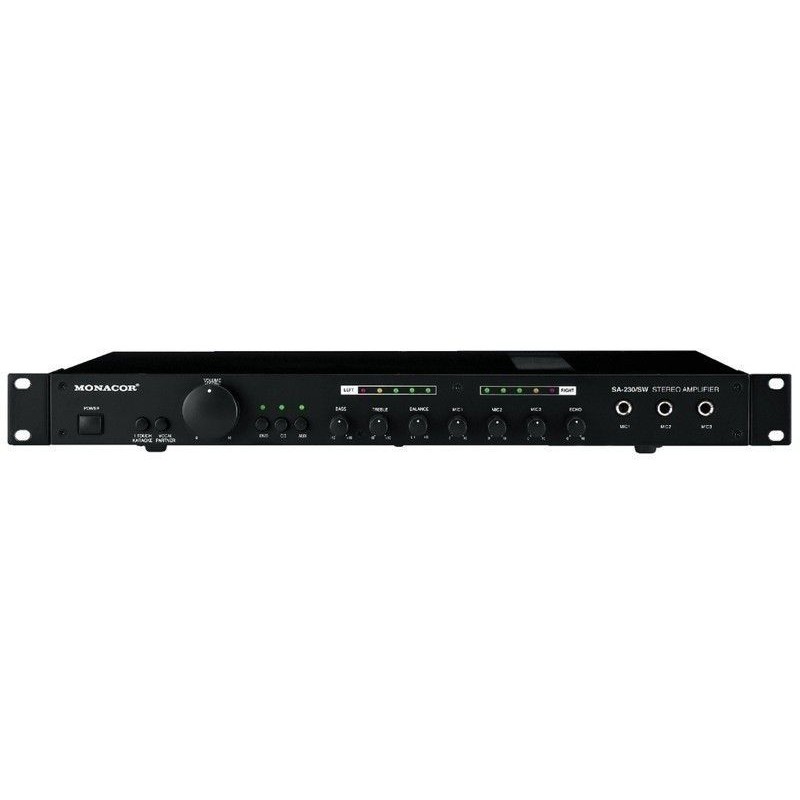

IMG-Stage Line SA-230 stereo mixing amplifier Bekijk groter

IMG-Stage Line | Monacor SA-230

IMG-Stage Line

SA-230-sw

IMG-Stage Line | Monacor SA-230 stereo mixing versterker

Bij het kopen van dit product krijgt u in totaal 10 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 10 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 2,00.


€ 210,74

Korting op je Bestelling Korting op je Bestelling
Gratis verzenden Gratis verzenden tot 10 KG
Volume korting Volume korting
Bonus systeem Bonus systeem
Veilig betalen Veilig betalen
Niet goed geld terug Niet goed geld terug
Trustpilot Trustpilot

Volumekorting

Aantal Korting U bespaart
2 2% Tot € 8,43
4 4% Tot € 33,72
6 6% Tot € 75,87
8 8% Tot € 134,87
10 10% Tot € 210,74

Productinformatie IMG-Stage Line | Monacor SA-230

Universal stereo mixing amplifier

Join the singing! The clearly arranged user surface of the SA-230 makes listening to music and especially making music really enjoyable. One of the three stereo line sources at a time and three mono microphone sources can be mixed together without any problems. When combined with special karaoke CDs or DVDs, features like "1-touch karaoke" or "vocal partner" are available. An adjustable digital echo can be added to the microphone channels as an effect. The amplifier's cooling design without a fan allows for a silent operation. The latest protective circuits offer protection against overload, overheating, and short circuit.


  • 100WMAX
  • Silent operation (due to design without fan)
  • 3 stereo line inputs
  • 3 mono microphone inputs, on the front panel, each with gain control
  • Adjustable digital echo for the microphone inputs
  • Karaoke feature
  • Vocal partner feature
  • LEDs for level control and active line inputs
  • Controls for volume, bass, treble, balance, and digital echo
  • Stereo record output
  • 482mm (19") rack installation, 1RS, with supplied mounting brackets


Technical Facts Amplifiers




  • Output power
  • RMS power
  • Stereo 4Ω2 x 25WRMS
  • Stereo 8Ω2 x 20WRMS
  • Max. power2 x 50WMAX
  • General information
  • Inputs175mV/8kΩ (line) 2.5mV/3.5kΩ (mic)
  • Frequency range20-20,000Hz
  • S/N ratio62dB
  • Digital echo200 msec.
  • Equalizerbass: ?10dB treble: ?10dB
  • Power supply230V?/50Hz/150VA
  • Admiss. ambient temp.0-40 ?C
  • Dimensions432x45x275mm
  • Weight4kg
  • Connections
    line: RCA L/R mic: 6.3mm jack rec.: RCA L/R  speaker: spring-loaded speaker terminals
