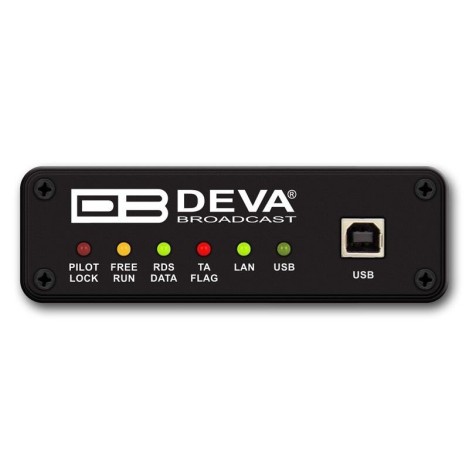

SmartGen Mini UECP Compatible, Compact RDS-RBDS Encoder with LAN & USB Connectivity
Wees er snel bij: Laatste items in voorraad!
Beschikbaarheidsdatum:
Houd mij op de hoogte van beschikbaarheid
Bij het kopen van dit product krijgt u in totaal 22 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 22 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 4,40.
| Aantal | Prijs | U bespaart |
|---|---|---|
| 2 | € 445,45 | Tot € 18,18 |
| 4 | € 436,36 | Tot € 72,73 |
| 6 | € 427,27 | Tot € 163,63 |
| 8 | € 418,18 | Tot € 290,91 |
| 10 | € 409,09 | Tot € 454,54 |
Product discription:
Compact, Robust, Reliable and Smart - This is just a small part of all the advantages of our Second Generation RDS/RBDS Encoder SmartGen Mini. The interactive function RT+ for song tagging is fully supported without a compromise. Based on the latest RDS technology, the SmartGen Mini is fully digitally designed for 24/7/365 operation. The SmartGen Mini is the most cost-effective solution for sending of TMC and EWS Services. It supports both European CENELEC and United States NRSC standards and is fully compatible with the latest UECP EBU SPB490 Version 7.05
SmartGen Mini gives dynamic, on-the-fly programming access with its built-in USB, TCP/IP, UDP/IP interfaces. This connectivity permits full integration of RDS/RBDS transmissions with the station’s other networked functions, including message streamings for digital radio and Webcasting. The SmartGen Mini encoder provides a full loop-through interface for connection to your existing broadcast chain. The SmartGen Mini can 'parse' scrolling text, automatically breaking the phrases into word groups.
The SmartGen Mini has all the RDS features that you could possibly need and that at an incredible price.
PROGRAMMING SOFTWARE:
Based on our more than 15 years of experience in the RDS field, SmartGen RDS/RBDS Encoders Manager was developed as a dedicated software for full management of our high end RDS Encoders range as regards to the latest updates of the UECP EBU SPB490 Version 7.05
It supports a wide range of interfaces as RS-232, USB and LAN. The SmartGen Manager has “Basic RDS” and “Advanced RDS” programming interfaces. Using its “Basic” Mode, all main RDS parameters can be easily programmed into the non-volatile memory of the RDS Encoder. The interactive simulator shows the outgoing scrolling messages exactly as they are displayed to the listeners.
The SmartGen RDS/RBDS Encoders Manager has all the functionalities required to drive any parameter by the latest version of the UECP EBU SPB490 Version 7.05. Its visual and self-guided user interface makes the UECP advanced programming of the SmartGen Encoders easy and user-friendly.
Technical facts:
| Power Supply | External, 12V / 0.5A |
| Pilot/MPX Input | Yes |
| MPX/RDS Output | 0 to 4095 mV |
| Inputs/Outputs | No |
| Communication Port | USB, LAN |
| Synchronization | External (Pilot or MPX) / Internal / Auto |
| Synchronization Monitoring | Yes |
| RDS Level adjustment | Digitally controlled |
| Phase adjustment | Yes, 0 ÷ 359.9° |
| Separate outputs for RDS+MPX and for RDS only | No |
| Command to activate the RDS SCA | Yes |
| Side Chain Mode, Loop through mode, Bypass feature | Yes |
| RDS Subcarrier | 100% Digitally Generated Shape / Bypass: 0 dB |
| Pilot synchronization | Input Level: -50dBu to +12dBu / Frequency: 19kHz, ±3Hz |
| EN50067 compliant | Yes |
| Accurate Clock Time (CT) Sync with Internet Connection | Yes |
| Remote TA actuation for Traffic Announcements | Yes |
| GPS module for automatic synchronization of the built-in clock | No |
| Fully independent RDS decoder for self-monitoring purposes | No |
| Firmware can be upgraded in the field | Yes |
| Front-panel LCD displays all programmed data | No |
| Data may be entered on-site with Front-panel Buttons | No |
| Operating Temperature | 0°C ÷ 55°C |
| RDS Features | |
| Group supported | All |
| Group Sequence | Configurable |
| PS | 4 DSN x 4 PSN |
| PI | 4 DSN x 4 PSN |
| PTY | RDS/RBDS |
| AF Method A | 25 |
| AF Method B | up to 50 |
| RT | Yes, 5 messages |
| RT rate adjustment | Group Sequence |
| RT+ for songs and content tagging | Yes |
| TP | Yes |
| TA Control | Command, Software |
| PTYN | Yes |
| EON | 4 PSN |
| CT | Yes |
| TMC, EWS, IH, TDC | Yes |
| Free Format Groups (FFG) | Yes |
| Open Data Application (ODA) | Yes |
| 64-character Dynamic PS shown on all RDS/RBDS Radios | Yes |
| Auto "parses" long messages for best text display | Yes |
| Scrolling by character | from 1 up to 8 |
| Scrolling by word, Auto centering, Truncate long words | Yes |
| Communication | |
| Communication Interfaces | USB, LAN |
| Connection with Automation Software | Yes |
| Network Connectivity | 2 TCP ports; 2 UDP ports |
| Scheduler | Yes |
| Configuration | Embeded Web Server, SmartGen Manager |
| Password Protection | Yes |
| ASCII Protocol | Yes |
| UDP, TCP, HTTP, SNTP | Yes |
| Alert notifications on user-defined events via SNMP traps or E-mails | No |
| Embedded SNMP agent permitting active management tasks | No |
| Custom HTML formatted E-mail templates with dynamic variables | No |
| Supported Network Protocols: | HTTP, SNTP, UDP, TCP, UPnP |
| UECP Protocol | Fully compliant with EBU SPB490 Ver.7.05 |
| PI <=> CALL Calculator | Yes |
| Remote Display | Yes |
| Supplied with Intuitive Software | Yes |
| Comes with 2-years Limited Warranty | Yes |
| Size and Weight | |
| Dimensions (W;H;D) | 120 x 31 x 103 mm |
| Shipping Weight | 230 x 54 x 172 mm / 0.580 kg |
| HS Code | 8527212000 |
SmartGen Mini UECP Compatible, Compact RDS-RBDS Encoder with LAN & USB Connectivity
