1500W RF FM Output Board with SWR/PWR pickup

          Nieuw

              RF output board 1500W for N or SO239 connector with SWR/PWR directional coupler. Now with TEFLON laminate and frequency compensated inside FM broadcasting band!

            Meer details

          Bij het kopen van dit product krijgt u in totaal 1 Loyaliteit punt. Uw winkelwagen bevat een totaal aan 1 Loyaliteit punt die omgezet kunnen worden in een waardebon van € 0,20.


                € 28,92

                    Output board opties

                      • 1500W RF Output Board (SWR/PWR)
                      • 1500W RF Output Board (SWR/PWR), 15cm RG142 teflon coax

                  Rabatt auf Ihre Bestellung   Korting op je Bestelling
                  Gratis verzenden Gratis verzenden tot 10 KG
                  Volume korting Volume korting
                  Bonus systeem Bonus systeem
                  Veilig betalen Veilig betalen
                  Niet goed geld terug Niet goed geld terug
                  QShops certificaat QShops certificaat
                  Trustpilot Trustpilot

          Volumekorting

            Aantal Korting U bespaart
            2 2% Tot € 1,16
            4 4% Tot € 4,63
            6 6% Tot € 10,41
            8 8% Tot € 18,51
            10 10% Tot € 28,92

          Meer informatie 1500W RF FM Output Board with SWR/PWR pickup

            Product discription:

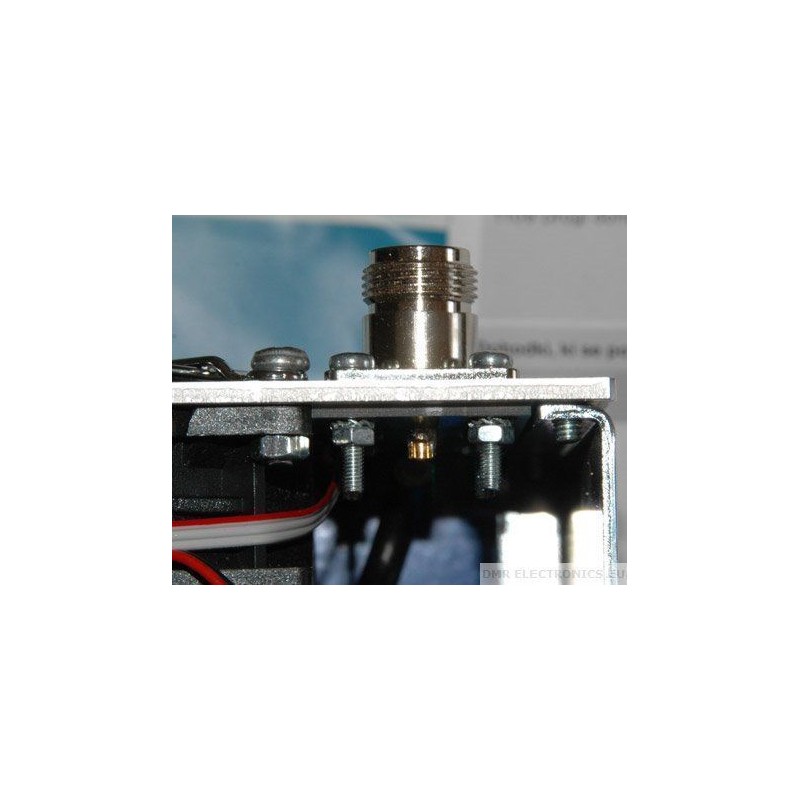

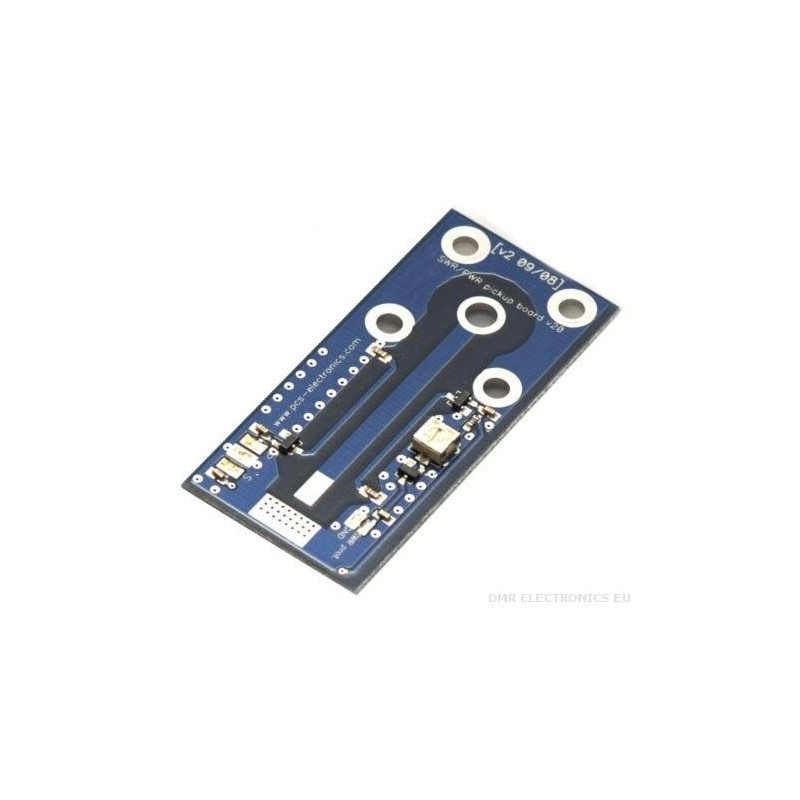

            A simple solution that could make your life so much easier. If you ever wanted to mount a N or SO239 connector to your enclosure and connect coaxial cable to it in a clean and effective way without adding parasitic inductance and making it all look like a mess, you probably noticed that this isn't so easy to do. We do have a simple solution, however. This small PCB screws tightly and directly to the N or SO239 connector (see pictures) and enables a clean, electrically excellent and also good looking contact. To top it off, it also contains a small stripline directional coupler. Three-pin solder header provides ground and two voltages, one for SWR and the other for POWER. You can now measure this voltage to determine your output POWER or SWR. It is also possible to use this board to simply build SWR protection.

            Coaxial cable can be easily soldered to the terminals as shown on the photos. We recommend teflon based coaxial cable for such interconnection wiring since teflon isolation does not melt when soldered or heated due to high power level. Boards with installed 15cm of RG142 teflon cable are also available. This cable is also prepared for soldering on its free end, making installation extremely simple.

            The boards are now produced on TEFLON laminate and take much higher power, also they are freqency compensated so a reading at 108MHz and 88MHz produces the same readings.



            Technical facts:

            - Size: 62mmx29mm, PTFE (TEFLON) laminate
            - Power handling: 0-1500W with heatsinking, above 1KW we recommend 1-2mm thick CuAg wire across middle conductor for safety.
            - Frequency range: 0-500MHz (Frequency compensated for equal reading inside entire FM broadcasting band)
            - Connectors supported: N and SO239
            - Includes: PCB and all components, connector and screws not included



          3 andere producten in categorie: RF FM uitgang boards en swr pickup boards
