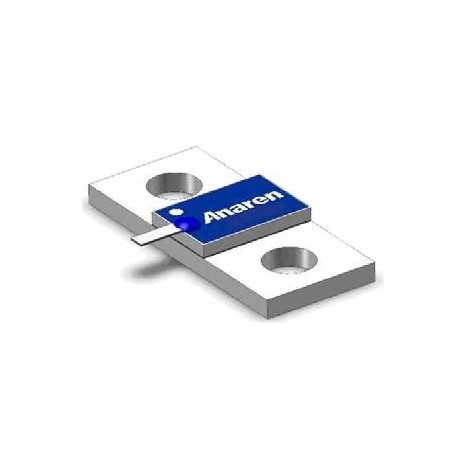

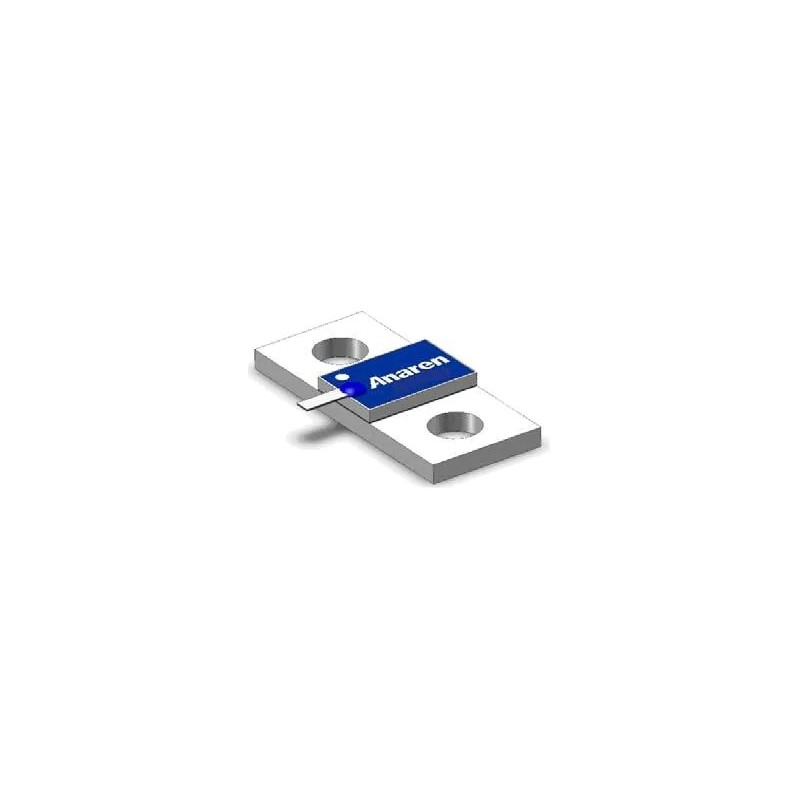

High frequent RF Resistor 250W

    620-G250N50W4

          Nieuw

              High frequent RF Resistor, model G250N50W4, 250W DC-2.2GHz 250Watts -55C to +150C

            Meer details

          Bij het kopen van dit product krijgt u in totaal 1 Loyaliteit punt. Uw winkelwagen bevat een totaal aan 1 Loyaliteit punt die omgezet kunnen worden in een waardebon van € 0,20.


                € 20,65

                Rabatt auf Ihre Bestellung   Korting op je Bestelling
                Gratis verzenden Gratis verzenden tot 10 KG
                Volume korting Volume korting
                Bonus systeem Bonus systeem
                Veilig betalen Veilig betalen
                Niet goed geld terug Niet goed geld terug
                QShops certificaat QShops certificaat
                Trustpilot Trustpilot

        Volumekorting

          Aantal Korting U bespaart
          2 2% Tot € 0,83
          4 4% Tot € 3,30
          6 6% Tot € 7,43
          8 8% Tot € 13,22
          10 10% Tot € 20,65

        Meer informatie High frequent RF Resistor 250W

          Product discription:


          The G250N50W4 is high performance Aluminum Nitride (AlN) flange mount
          termination intended as a cost competitive alternative to Beryllium Oxide
          (BeO). The termination is well suited to all cellular frequency bands such as;
          AMPS, GSM, DCS, PCS, PHS and UMTS. The high power handling makes
          the part ideal for terminating circulators, and for use in power combiners. The
          termination is also RoHS compliant!



          Technical facts:


          Hoge frequentie/RF Resistors
          50 Ohms
          250 W
          2 %
          2.2 GHz
          - 55 C
          + 150 C
          0.975 in
          0.375 in
          0.23 in
          Tray
          Toepassing: High Frequency
          Functies: -
          Bedrijfstemperatuurbereik: - 55 C to + 150 C
          Klemtype: SMD/SMT
          Merk: Anaren
          Producttype: High Frequency/RF Resistors
          Subcategorie: Resistors
          Gewicht per stuk: 12,079 g
