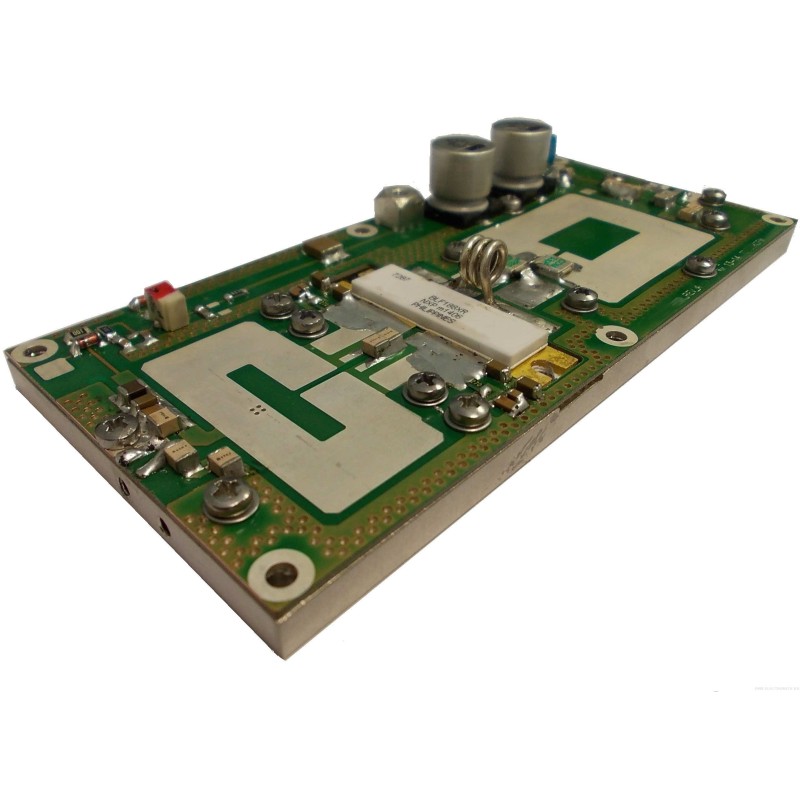

Power Versterker Pallet 1000W FM BLF188XR

Product discription:

Power Amplifier Section 1000W FM BLF188XR

Designed primarily for FM application, this amplifier is suitable for any CW or pulsed application.

• 87.5 - 108 MHz
• Pout: 1000 W
• Gain: 23 dB
• Extreme Ruggedness (VSWR 65:1)
• Class B
• Device: AMPLEON BLF188XR
• Supply : 30-50 VDC - 50VDC nominal
• Dimensions(LxWxH): 135x60x30 mm

Technical facts:

• Voltage supply 55 V V
• Supply current 35 A I
• Operating Temperature range 0 +105 °C Note1
• Storage Temperature range -30 +150 °C
• Load Mismatch (full power, all phase angle) 2:1 Note2
• Frequency range 87.5 108 MHz
• Power gain (saturated) 21 23 24 dB Note3
• Power Output 1000 W Power Input 10 W Note4
• Efficiency 75 80 % Note5
• Supply voltage 30 50 V
• Power gain variation +/-0.5 +/-1 dB
• F2 Second Harmonic -28 -24 dB
• F3 Third Harmonic -28 -24 dB
