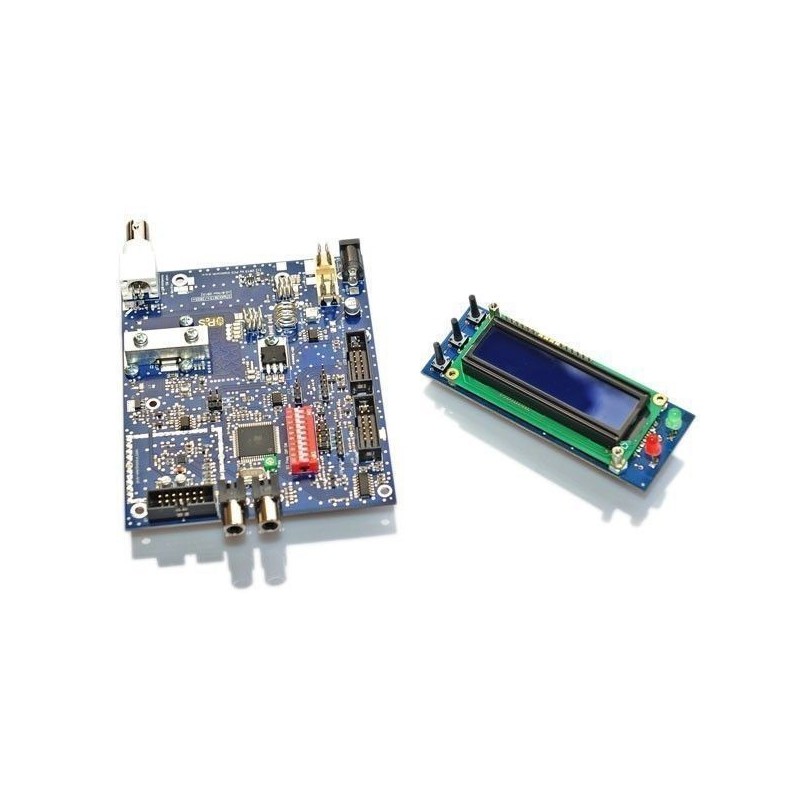

STMAX3015+ FM Zender Stuurzender, (stereo RDS) beschikbaar in 15W 25W. DDS digital modulator RDS en Stereo encoder onboard bediening middels LCD display.

Bij het kopen van dit product krijgt u in totaal 22 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 22 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 4,40.


€ 374,99

Opties

Korting op je Bestelling Korting op je Bestelling
Gratis verzenden Gratis verzenden tot 10 KG
Volume korting Volume korting
Bonus systeem Bonus systeem
Veilig betalen Veilig betalen
Niet goed geld terug Niet goed geld terug
Trustpilot Trustpilot

Volumekorting

Aantal Korting U bespaart
2 2% Tot € 15,00
4 4% Tot € 60,00
6 6% Tot € 135,00
8 8% Tot € 239,99
10 10% Tot € 374,99

Productinformatie STMAX3015+ FM Zender Stuurzender (stereo RDS) beschikbaar in 15W, 25W



DDS digital signal synthesis, excellent audio, on-board stereo and RDS

The new STMAX 3015+ FM exciters combine more features into a small board than ever before. With DDS digital modulator, on-board stereo and RDS and all of this full controllable via LCD display with new 2-level MENU system and availability in 15W, 25W formats all powered from 12-15V this unit represents realization of dreams for most prospective radio station builders.

The design of the STMAX 3015+ series is based on MAXPRO 6015+ and also looks quite similar at first glance, however it comes with on-board DDS modulator and DSP stereo encoder with RDS. The result is a rugged and solid FM exciter with completely flat power output across the entire FM band at 15W, 25W, designed to run silently and cool 24/7. Since the new design featuring larger heatsink with copper spreader was so much better and completely stable. Your dream FM exciter is a reality right now!

The exciter carries a one year limited warranty on parts and labor against defects in materials and workmanship, except the RF final transistor.

How is STMAX3000 series different from the MAXPRO6000 series?

- On-board stereo and RDS encoders.
- New larger heatsink
- DDS digital modulator. This ensures very good audio, but creates spurious artefacts about -50dBc
- All parameters adjustable from the LCD, including RDS RT, PS, PI and others
- 2- level menu system groups similar parameters together making adjustment easier
- Comes also with new LCD with rotary encoder. This new LCD offers password protection and other cool features.
- Can't be used with MPX STL links as there is no MPX in

Technical specs:

  • RF Output Power: 0 to 15 Watts, 0-25W (fully variable via LCD in nice gradual steps), LCD power adjustment range can also be limited     to 0-1W, 0-2W, 0-3W, 0-4W ... 0-15W, 0-full, this is done with a jumper (exact options vary depending on model).
  • Output connector: BNC female
  • Output Impedance: 50 Ohms
  • Frequency range: 87.5-108MHz
  • PLL Steps: 100KHz-500KHz, adjustable
  • Frequency stability: +/- 20Hz
  • Spurious/Harmonic rejection: Harmonics: >50dB, Spurious: >-50dBc
  • Power Supply 15W: 12-15V/2.5A
  • Power Supply 25W model: 12-15V/4.5A
  • Power connector 15W, 25W model: New design with plugin with 2 screw terminals or standard barrel with 2.1mm positive center pin
  • Quartz Locked PLL Frequency Control, DDS digital modulator
  • No Expensive Test Equipment Required
  • Audio performance: Less than 0.1% distortion, 20Hz-15KHz
  • RF output ruggedness: SWR protection, temp protection
  • Polarity protection, temp protection
  • Pre-emphasis, 50uS, 75uS or none selectable via LCD
  • Stereo pilot level adjustable via LCD
  • RDS pilot level adjustable via LCD
  • MPX level adjustable via LCD
  • Audio Input Impedance: 1Kohm, unbalanced
  • Audio Input Level: -10dBu, +4dBu (selectable from LCD)
  • Stereo separation: >50dB
  • S/N ratio: >90 dB
  • PC Board Size 15W, 25W : 100x125mm

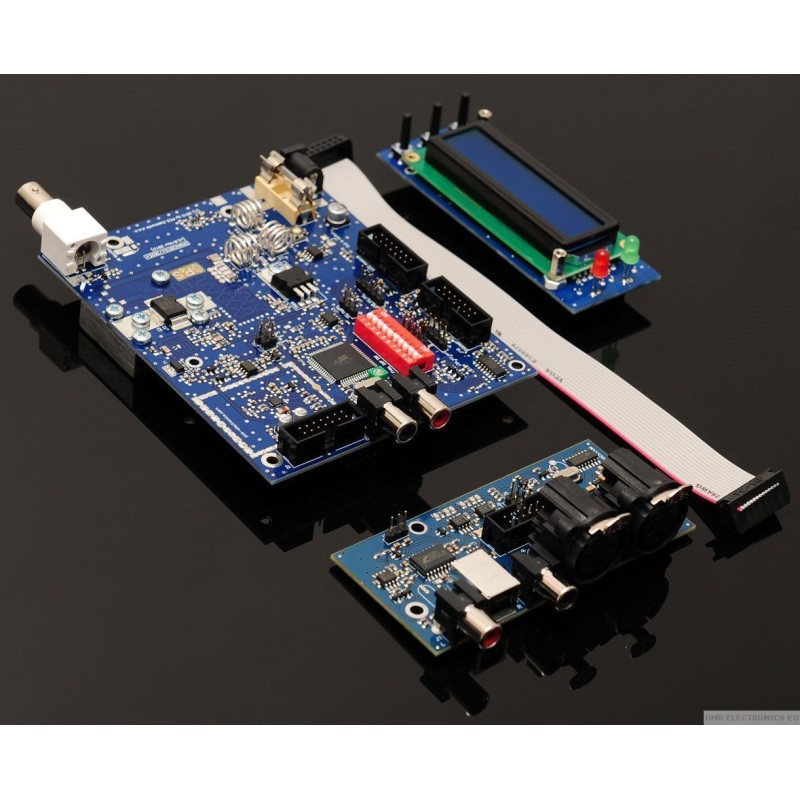

  • Audio connectors: 2x RCA jack, 14-pin connector for external input board with balanced XLR inputs
  • RF monitor: solder pads
