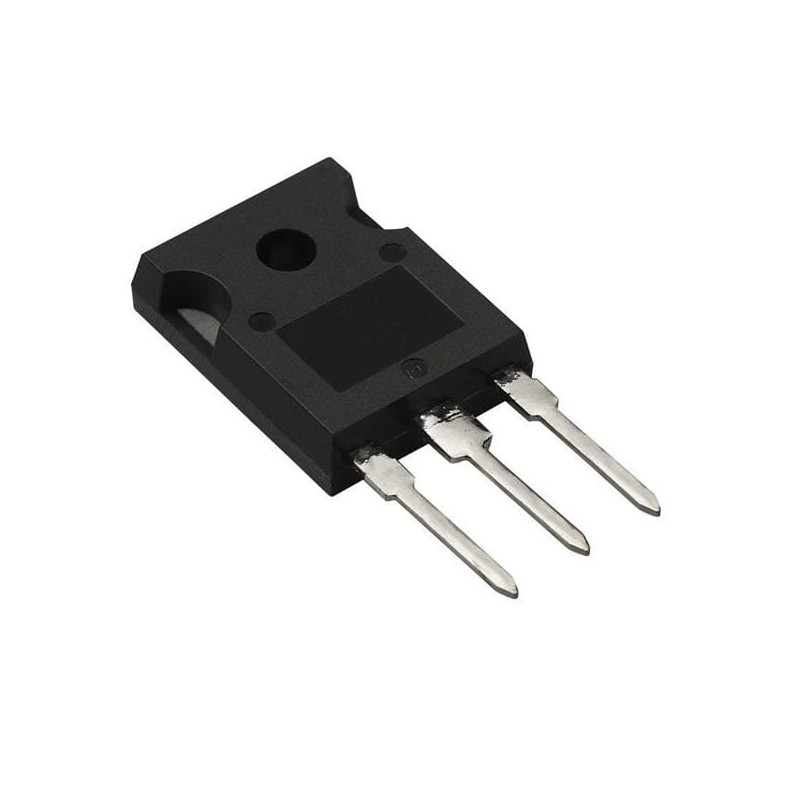

MRF300BN RF 300 W



              MRF300BN RF MOSFET-transistors RF Power LDMOS Transistor, 300 W CW over 1.8-250 MHz, 50 V

            Meer details

          Bij het kopen van dit product krijgt u in totaal 3 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 3 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 0,60.

                € 74,37

                Rabatt auf Ihre Bestellung   Korting op je Bestelling
                Gratis verzenden Gratis verzenden tot 10 KG
                Volume korting Volume korting
                Bonus systeem Bonus systeem
                Veilig betalen Veilig betalen
                Niet goed geld terug Niet goed geld terug
                QShops certificaat QShops certificaat
                Trustpilot Trustpilot


          Aantal Korting U bespaart
          2 2% Tot € 2,97
          4 4% Tot € 11,90
          6 6% Tot € 26,77
          8 8% Tot € 47,60
          10 10% Tot € 74,37

        Meer informatie MRF300BN RF 300 W

          Product discription:

          MRF300BN RF Power LDMOS Transistors High Ruggedness N--Channel
          Enhancement--Mode Lateral MOSFETs
          These high ruggedness devices are designed for use in high VSWR industrial,
          scientific and medical applications and HF and VHF communications as well as
          radio and VHF TV broadcast, sub--GHz aerospace and mobile radio applications.
          Their unmatched input and output design allows for wide frequency range use
          from 1.8 to 250 MHz


          • Unmatched input and output allowing wide frequency range
          • Two opposite pin--connection versions (A and B) to be used in
            a push--pull, two--up configuration for wideband performance
          • Characterized from 30 to 50 V
          • Suitable for linear application
          • Integrated ESD protection with greater negative gate--source
            voltage range for improved Class C operation
          • Typical Applications
            Industrial, scientific, medical (ISM)
            Laser generation
            Plasma etching
            Particle accelerators
            MRI and other medical applications
            Industrial heating, welding and drying systems
            Radio broadcast
            VHF TV broadcast
            Mobile radio
            VHF base stations
            HF and VHF communications
            Switch mode power supplies
