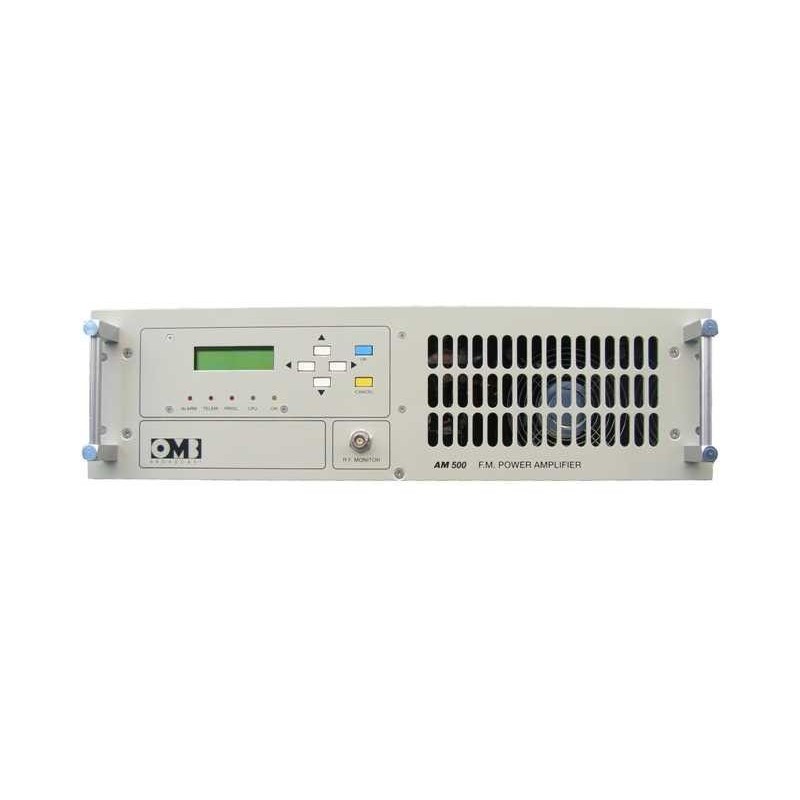

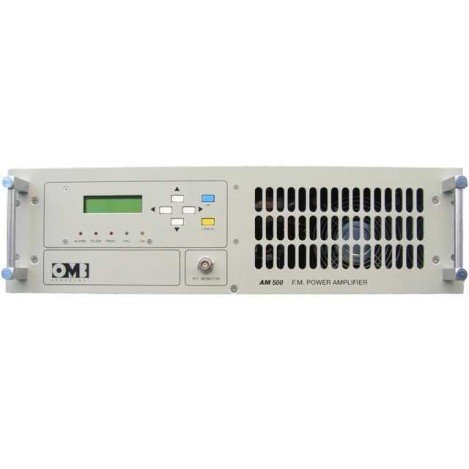

OMB Professional AM 500W Digital FM Versterker

AM 500

        Gereviseerd

            The AM 500 is a high-performance 500W FM amplifier, developed with MOSFET technology

          Meer details

        Bij het kopen van dit product krijgt u in totaal 203 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 203 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 40,60.


              € 4.061,98

              Korting op je bestelling Korting op je bestelling
              Gratis verzenden Gratis verzenden tot 10 KG
              Volume korting Volume korting
              Bonus systeem Bonus systeem
              Veilig betalen Veilig betalen
              Niet goed geld terug Niet goed geld terug
              QShops certificaat QShops certificaat
              Trustpilot Trustpilot

      Volumekorting - OMB Professional AM 500W Digital FM Versterker

        Aantal Korting U bespaart
        2 2% Tot € 162,48
        4 4% Tot € 649,92
        6 6% Tot € 1.462,31
        8 8% Tot € 2.599,67
        10 10% Tot € 4.061,98

      Meer informatie

        OMB Professional AM 500W Digital FM Amplifier


        Product Discription:
        The AM 500 is a high-performance 500W FM amplifier, developed with MOSFET technology.

        It includes an elliptic LPF (Low Pass Filter) with high-attenuation in the harmonic frequencies and its sophisticated power supply unit with a DC-DC converter guarantees an optimal working with mains voltage fluctuations between 90 and 260V without output power variations.

        The most relevant parameters can be visualized in the LCD display: forward and reflected power, overdrive, module 1 current, module 2 current, power supply 1 voltage, power supply 2 voltage,etc. And the equipment also provides cyclical protection system to protect the amplifier against forward and reflected over-power, overexcitement, over-current, over-voltage and excessive temperatures.

        The 2 independent 300W amplifying modules are combined and mounted on a high-performance heat-sink, so that the transistors work in optimal thermal conditions even in really hot environments.

        Furthermore, the AM 500 provides a telemetry output in order to get information about internal parameters of the amplifier.




        Technical Facts:
        • frequency range 87.5 ~ 108MHz
        • operating class B
        • input return loss 20dB
        • input power 3 ~ 6W
        • OUTPUT POWER500W nominal
        • power gain 19.2dB typical
        • efficency 70% approx.
        • coolingAir forced
        • harmonic <-70dBc
        • input/output impedance 50Ω
        • RF input connector N Female
        • RF output ConnectorN Female
        • RF monitor ConnectorBNC Female
        • AC power supply90 ~ 260VAC, 50/60 Hz, <1000VA
        • Protections
          Reflected power (10% nominal power), over-consumption, temperature, power supply failure, overdrive, direct and reflected foldback.
        • remote control and TElemetry RS-232, exciter inhibition
        • Dimensions 3RU (19'' rack) 465mm depth (without handles)
        • weight 24.6Kg (54.12Lbs)
