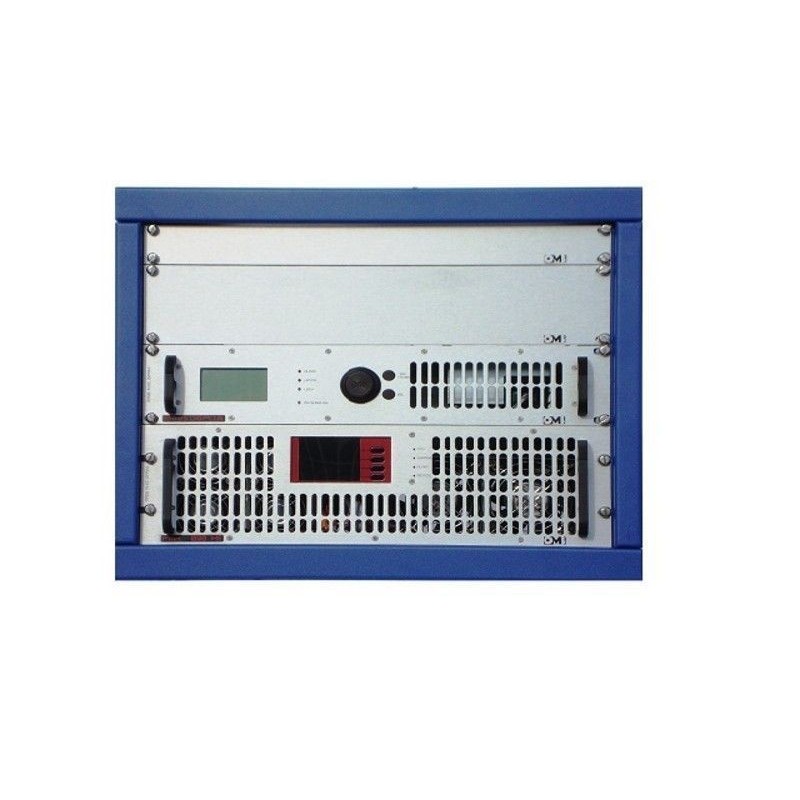

    2KW FM Zender, EM 2000 HE DIG PLUS OMB

    Inleiding

    The 2KW FM transmitter, EM 2000 HE DIG PLUS, has been created by the OMB center of development for high efficiency transmitters. It consists on the high efficiency 2KW amplifier, FMA 2000 HE, with >73% efficiency and the EM 25 DIG PLUS, a 25W FM transmitter. The high efficiency 2KW amplifier has an approximate consumption of 2600VA at 230Vac, so it pays for itself in a short period of time due to its low consumption. This 2KW FM transmitter is also available in Dual Drive version

    Let op: laatste item(s) op voorraad!

    Bij het kopen van dit product krijgt u in totaal 480 Loyaliteit punten. Uw winkelwagen bevat een totaal aan 480 Loyaliteit punten die omgezet kunnen worden in een waardebon van € 96,00.


    € 9.615,69

    Korting op je Bestelling Korting op je Bestelling
    Gratis verzenden Gratis verzenden tot 10 KG
    Volume korting Volume korting
    Bonus systeem Bonus systeem
    Veilig betalen Veilig betalen
    Niet goed geld terug Niet goed geld terug
    Trustpilot Trustpilot

    Volumekorting

    Aantal Korting U bespaart
    2 2% Tot € 384,63
    4 4% Tot € 1.538,51
    6 6% Tot € 3.461,65
    8 8% Tot € 6.154,04
    10 10% Tot € 9.615,69

    Meer informatie 2KW FM Zender, EM 2000 HE DIG PLUS OMB



    Product Discription:

    MAIN FEATURES OF THE 2KW FM DIGITAL TRANSMITTER MANUFACTURED BY OMB:


    • Typical AC efficiency >73% and typical RF efficiency of 84%.
    • Two amplifying modules of 1000W with MOSFET technology.
    • Two independent switching power supplies connected in parallel to maintain the equipment working in case any of them fails.
    • TFT screen and touch keyboard to control and to visualize operation parameters.
    • Memory recording of events.
    • Speed control of cooling fans according to temperature of power modules so as to optimize consumption and to decrease acoustic contamination.
    • Advanced protection against load mismatches without transmission cuts and fast protection in case of excessive reflected power and/or excessive input power.
    • Analog telemetry, digital remote control and telemetry RS232, remote control by opened/closed contacts
    • Low pass filter, Mains EMI filter and internal single-phase transient suppressor.
    • Automatic power reduction at night when used in combination with the EM 25 DIG PLUS transmitter.
    • Automatic power reduction in case of high temperature, the equipment returns automatically to its rated power value when the temperature reaches back an average value.
    • Automatic power reduction in case of excessive reflected power.
    • Automatic voltage control for efficiency optimization.
    • Power supplies of the amplifier are hot removable and interchangeable.
    • Automatic voltage control for efficiency optimization

    GENERAL CHARACTERISTICS

    CHARACTERISTICS AMPLIFIER FMA 2000 HE HPPS
    FREQUENCY RANGE 87.5-108MHz
    INPUT RETURN LOSS -20dB
    INPUT POWER <15W
    OUTPUT POWER 2000W nominal, manual and automatic adjustable
    POWER GAIN 19.2dB minimum
    TOTAL EFFICIENCY >73% typical
    RF EFFICIENCY 84% typical
    COOLING Forced air, speed control of fans
    HARMONICS LEVEL -80dBc
    INPUT/OUTPUT IMPEDANCE 50Ω
    RF INPUT CONNECTOR N(F)
    RF OUTPUT CONNECTOR 7/16"or EIA 7/8"
    RF MONITOR CONNECTOR BNC(F)
    POWER SUPPLY 230VAC ±15% → 195 ÷ 265VAC, 50/60Hz
    CONSUMPTION 2600VA (@2000W output power)
    PROTECTIONS Reflected power, forward power, overdrive, and overcurrent in power modules. Smart temperature protection. Ultra-fast protection against reflected and input power. Real time registration of events. Exciter’s inhibition
    TELEMETRY AND REMOTE CONTROL Analog telemetry (direct and reflected power measurements). Digital telemetry and remote control RS232. Remote control by opened/closed contacts
    OPERATION TEMPERATURE -5 to +40°C
    WEIGHT 20Kg approx. (without rack)
    DIMENSIONS 3 standard rack



    EXCITER EM 25 DIG PLUS
    FREQUENCY RANGE 87.5-108MHz
    FM MODULATION 75KHz (adjustable) peak deviation. Mono 180kF3E and Stereo 256kF3E
    AUDIO/MPX INPUT LEVEL -3.5 @ +12.5dBm @ 75KHz deviation
    AUDIO INPUT CONNECTORS XLR(F)
    AUXILIARY CHANNEL (RDS/SCA) INPUT LEVEL 7.5KHz deviation: -12.5 to 3.5dBm and 2KHz deviation: -24 to -8dBm
    AUX. CHANNEL INPUT IMPEDANCE 10kOhm
    MODULATION DISTORTION 7.5Khz deviation: <0.05%, 0.02% typical; 2KHz deviation: <0.2%, 0.05% typical
    S/N MONO RATIO 30 to 20000Hz: >76dB, 86dB typical, CCIR: >75dB, 81dB typical



    Technical specifications:



    S/N STEREO RATIO 30 to 20000Hz: >72dB, 77dB typical, CCIR: >68dB, 72dB typical
    AUDIO CHANNELS BANDWIDTH 30 to 15000Hz ±0.1dB
    PRE-EMPHASIS TIME CONSTANT Selectable, 25/50/75 microseconds
    RF NOMINAL OUTPUT POWER 25W
    TUNING STEPS OF TRANSMITTER 10/100KHz
    ALC OUTPUT POWER STABILITY ±3%
    SPURIOUS AND HARMONIC EMISSIONS <80dBc
    RF OUTPUT IMPEDANCE 50Ω
    RF INPUT POWER CONNECTOR N
    RF SAMPLING CONNECTOR BNC
    POWER SUPPLY 110-230Vac ±15% 50-60Hz
    OPERATION TEMPERATURE RANGE 0 to 40°C recommended, -10 to 55°C max.
    RELATIVE HUMIDITY Up to 95% without condensation
    DIMENSIONS 484x300x90mm, 2 standard rack units of 19"
    WEIGHT 7Kg
